Fagor BCSD-15AEG-EC User Manual

20|52 - BCSD EtherCAT Beta series EtherCAT Servo Drives | Ref.2107
Installation manual

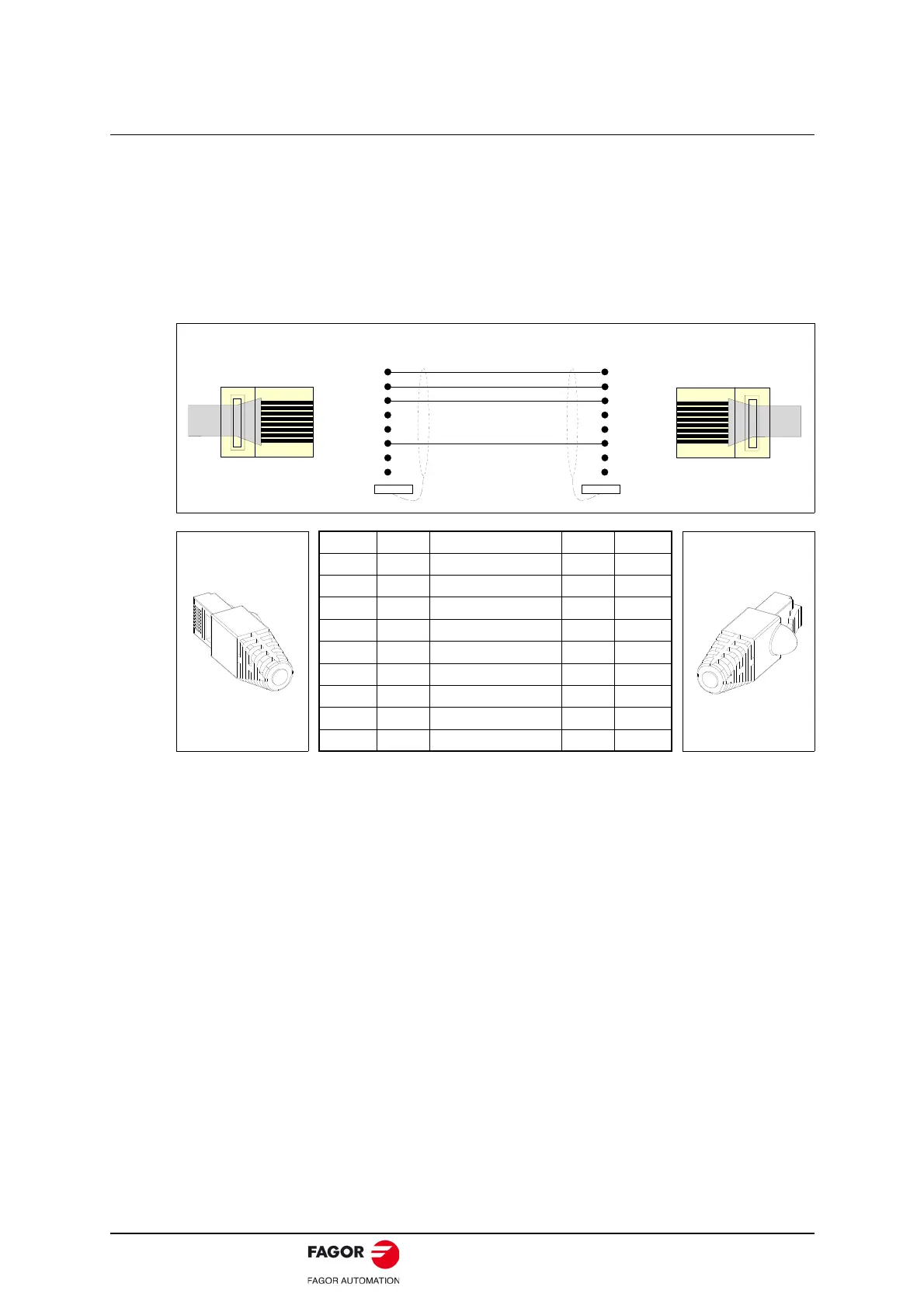

3.1. Connection between CNC elite and BCSD-EC Axis Drive
Cable name: BSC-EC- 
Cable between CNCelite communications board EtherCAT AXES · B64 connector · and
BCSD-EC axis drive · CN3 connector · .
Length
 : 05/10/15 m.
Pinout
2x RJ-45 connectors.
Characteristics
Type: Shielded. Twisted pairs (1 x 2 x 0.22 mm
2
).
Flexibility: Superflexible.
Minimum static bending radius of 50 mm and a dynamic radius of 95 mm.
Cover: PUR.
Impedance: Cat. 5. 100/120 .
PIN SIGNAL DESCRIPTION SIGNAL PIN
1 TD + Transmission Data + TD + 1
2 TD - Transmission Data - TD - 2
3 RD + Receiver Data + RD + 3
4
- - - 4
5
- - - 5
6 RD - Receiver Data - RD - 6
7
- - - 7
8
--- 8
Housing Shield Screening Shield Housing
S H
I E L D
1
2
3
4
5
1
2
3
4
5
P i n P i n
6
7
8
C N C e l i t e · B 6 4 ·
B C S D - E C · C N 3 ·
6
7
8
T D +
T D -
H O U S I N G
H O U S I N G
S H
I E L D
R D +
R D -
T D +
T D -
R D +
R D -
