FENDT Vario 724 User Manual

Manual No. 016-5030-043 Rev. A 13
Mechanical Drive Installation
Install the Spline and Ring Gear Assemblies

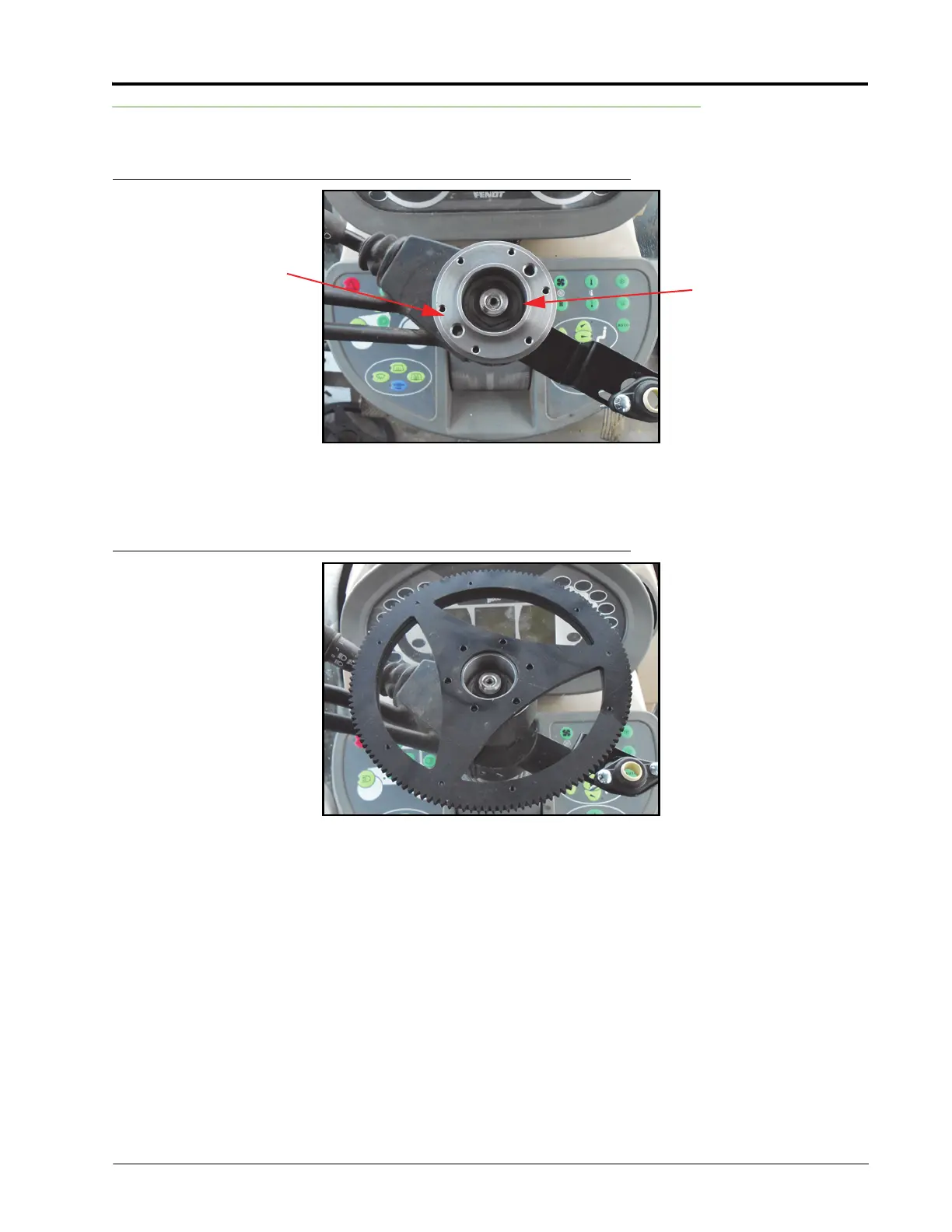

FIGURE 9. Female Spline Adapter Installed on Steering Column
1. Install the female spline adapter on the machine’s steering column stem.
2. Install the machine’s steering wheel nut that was removed during the steering wheel removal.
FIGURE 10. Ring Gear Installed
3. Place the ring gear (P/N 063-4001-011) over the female spline adapter with the V-ring facing down and the
holes in the ring gear aligned with the holes in the spline adapter.
Female Spline
Installed
Machine’s Steering
Wheel Nut
