Manual No. 016-5030-043 Rev. A 9
C hapter 3 Mechanical Drive
Installation

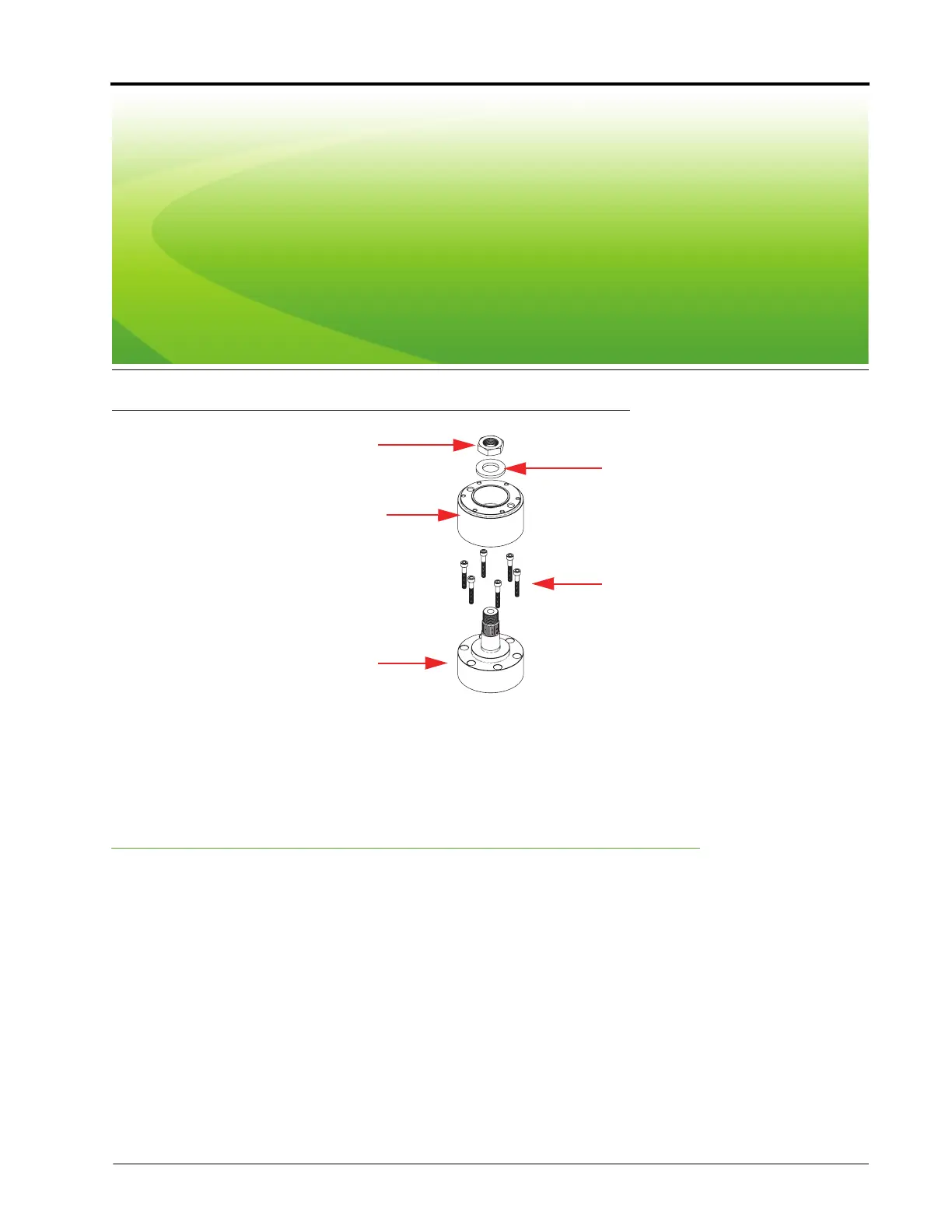

FIGURE 1. Spline Assembly Disassembled
1. Locate the 20 mm x 36 tooth spline adapter assembly (P/N 063-4001-022).
2. Disassemble the spine adapter assembly as shown in Figure 1 above.
Remove the Steering Wheel
Note: The steps in this section require use of a steering wheel puller (not supplied). For questions on the
proper procedure for removing the steering wheel, contact your local equipment dealer.
Nut
Washer
Female Spline
Adapter
Bolts
Male Spline
Adapter

FENDT Vario 936 Specifications

General

Max Speed	60 km/h
Hydraulic System	Closed-center load sensing
Rated engine speed	2100 rpm
Tire Size (Rear)	650/65 R42
Transmission	CVT
Fuel Tank Capacity	660 liters
Engine	MAN
Wheelbase	3, 050 mm (120 inches)
Engine Power	360 hp (268 kW)
