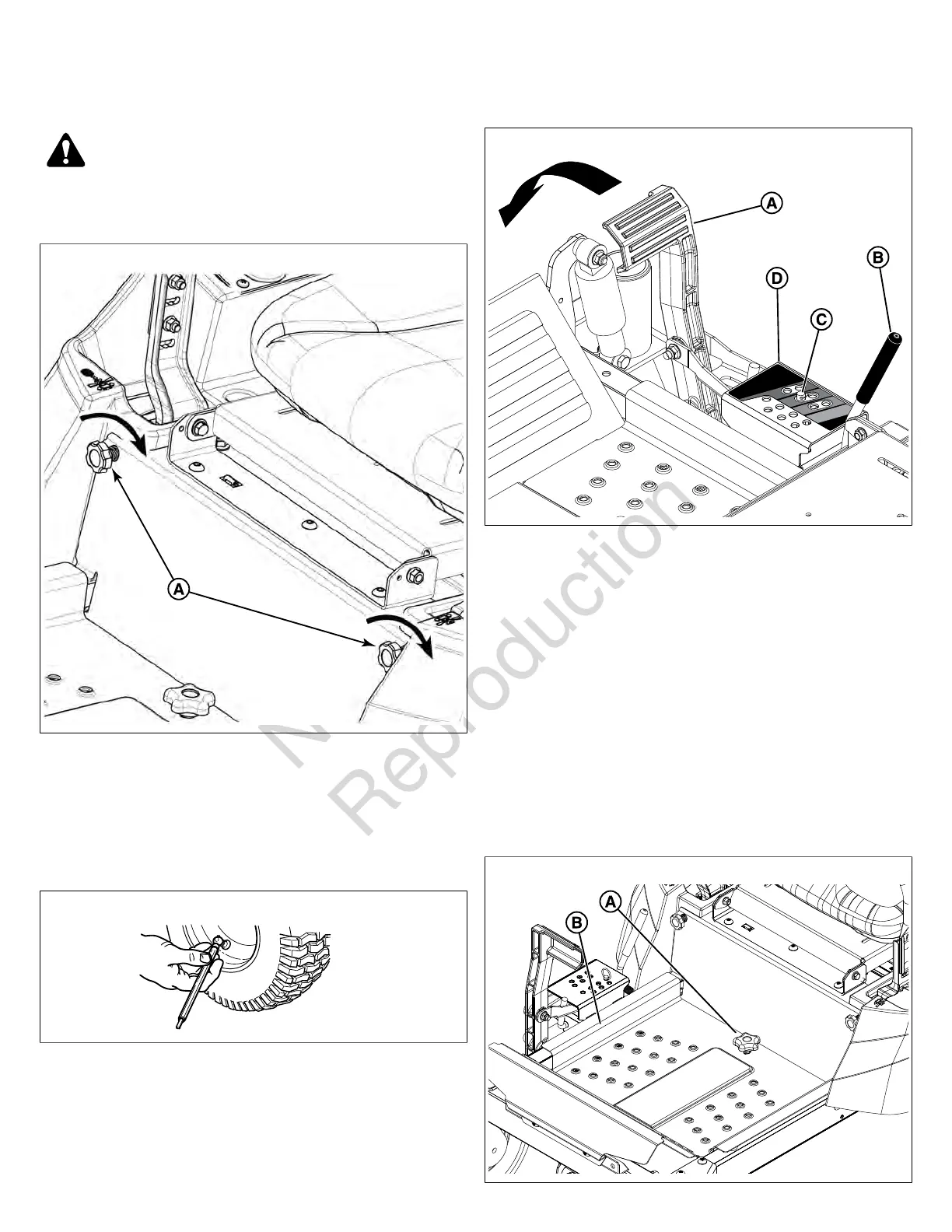

1. Tighten the knob (A, Figure 34)of the faster wheel by 1/2-
turn (clockwise) increments until the unit travels (tracks)
straight.
WARNING
DO NOT adjust the unit for a faster overall speed forward or
reverse than it was designed.
34
Checking Tire Pressures
Tire pressure should be checked periodically (see Figure
35), and maintained at the levels shown in the Specifications
chart. Note that these pressures may differ slightly from the
"Max Inflation" stamped on the side-wall of the tires. The
pressures shown provide proper traction and extend tire life.
35
Cutting Height Adjustment
The deck lift pedal adjusts the mower cutting height. The
cutting height is adjustable between 1-1/2" (3,8 cm) and
4-1/2" (11,4 cm) in 1/4" (0,64 cm) increments.
To adjust cutting height:
1. Fully depress the deck lift pedal (A, Figure36) until the
deck lift lock lever (B) locks the deck into the highest
position (transport position).
36
2. Place the cutting height adjustment pin (C) into the hole
for the desired cutting height.
Note:Make sure the pin is inserted into the holes in both
upper and lower plates of the adjustment bracket (D).
3. Depress the deck lift foot pedal and then push the deck
lift lock lever towards the right to release the lock.
4. Slowly release the deck lift pedal until it comes to rest
against the cutting height adjustment pin.
Floor Pan Removal and Installation
This unit is equipped with a removable floor pan which can be
removed to provide better access to the mower deck.
1. Loosen and remove the retaining hardware (A, Figure 37)
that secures the floor pan (B) to the frame of the unit.
37
