Ferris IS2500Z Series User Manual

25
WARNING
AVOID SERIOUS INJURY OR DEATH FROM
ROLL OVER:
Keep roll bar in the raised position and use
seat belt.
THERE IS NO ROLL OVER PROTECTION WHEN
THE ROLL BAR IS DOWN
Lower the roll bar only when necessary and
NEVER remove it.
Do NOT use seat belt when the roll bar is down.
Raise the roll bar as soon as clearance permits.
Do NOT jump off if mower tips.

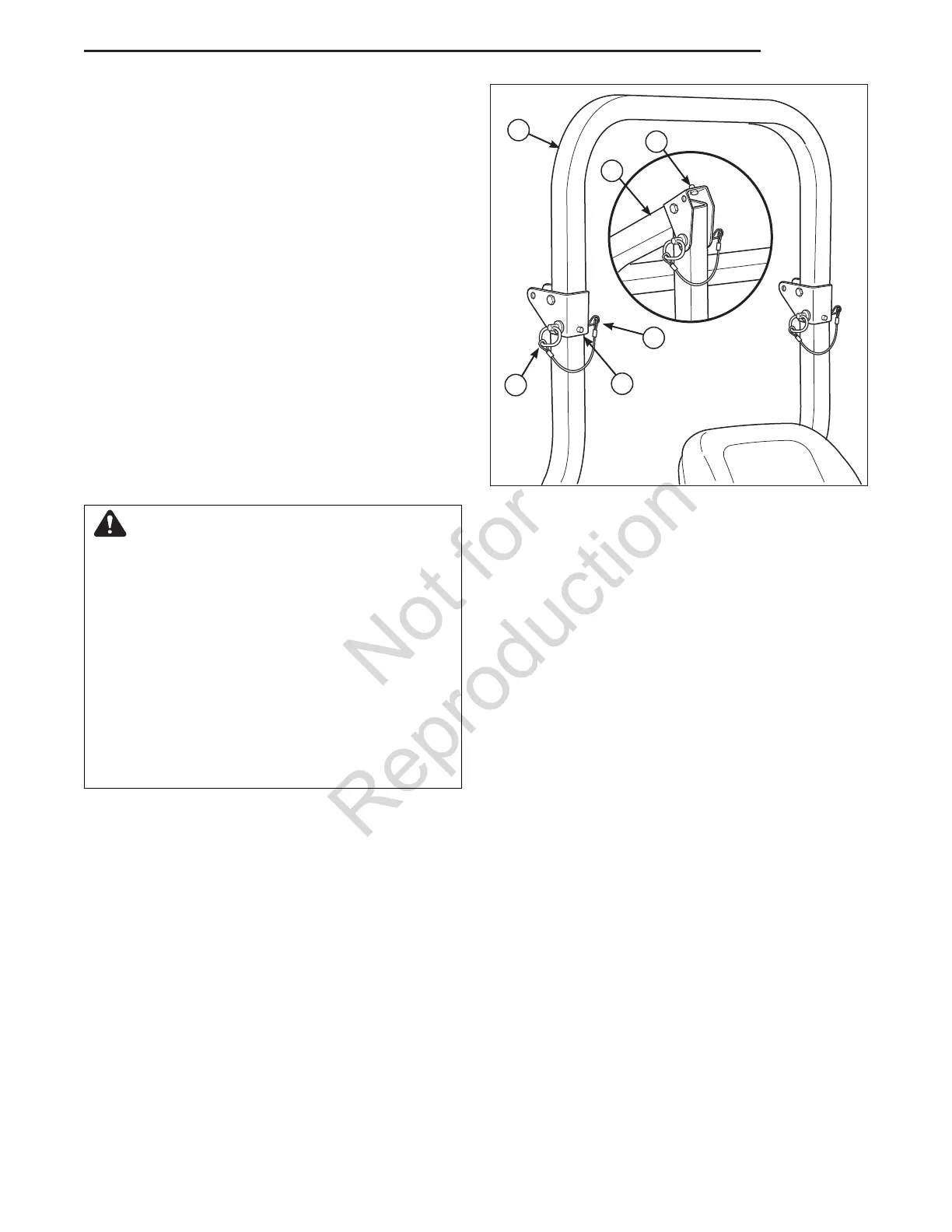

Figure 11. Raise & Lower the Roll Bar
A. Hair Pin Clip
B. Retainer Pin
C. Roll Bar
D. Rubber Stop
Raise & Lower the Roll Bar
To lower the roll bar:
1. Pull the hair pin clips (A, Figure 11) out of the
retainer pins (B).
2. Push or pull the top of the roll bar (C) forward
against the rubber stops (D) and remove the
retainer pins (B).
3. Lower the roll bar and reinstall the retainer pins
and hair pin clips to secure the roll bar in the
down position (see insert, Figure 11).
To raise the roll bar:
1. Pull the hair pin clips (A) out of the retainer pins
(B) and remove the retainer pins.
2. Raise the roll bar (C) until the rubber stops (D)
contact the upright tubes.
3. Push or pull the top of the roll bar forward against
the rubber stops and reinstall the retainer pins and
hair pin clips to secure the roll bar in the raised
position.
C
B
A
D
D
C
Operation
