45
C

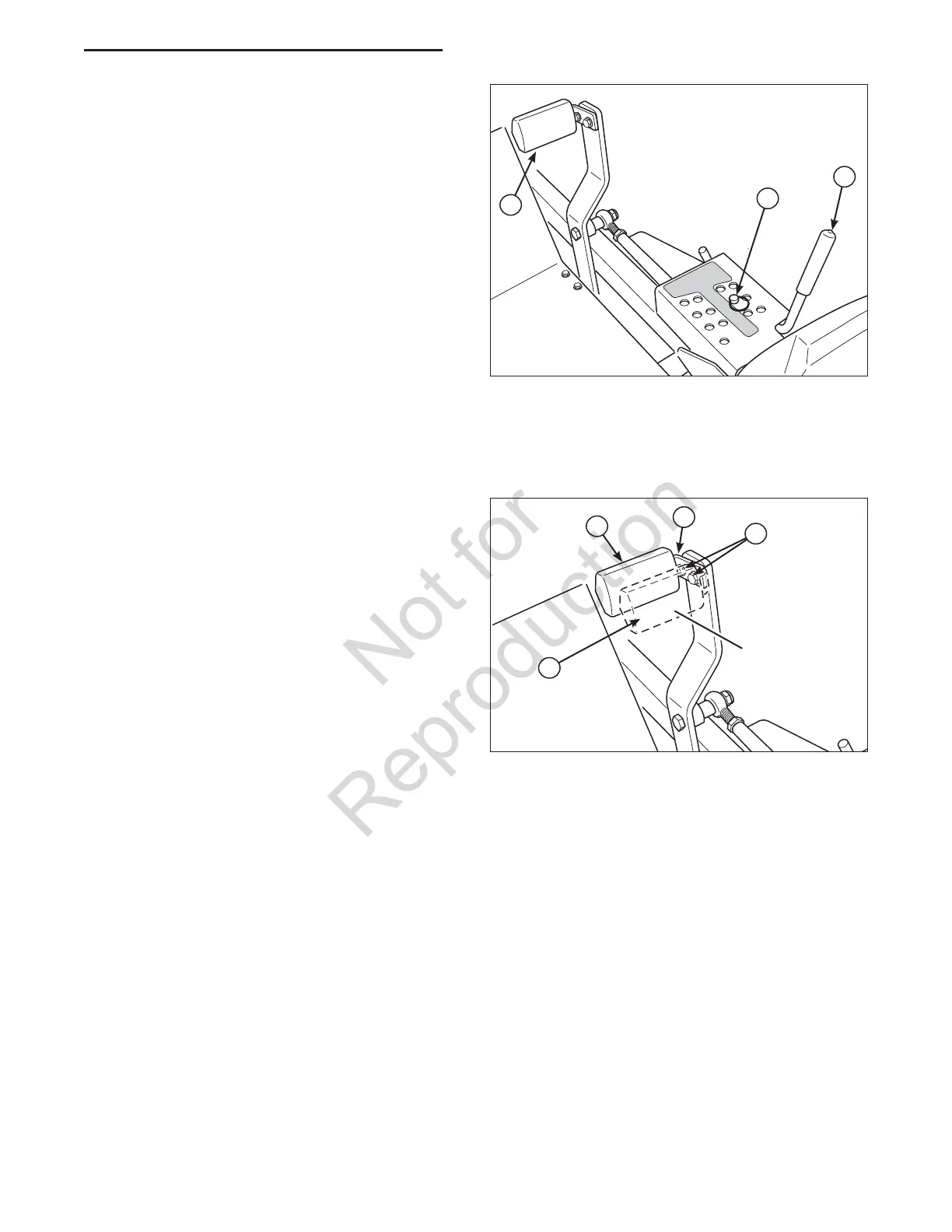

Figure 44. Mowing Height Adjustment
A. Cutting Height Adjustment Pin
B. Deck Lift Foot Pedal
C. Deck Lift Lock lever
B
A
OPTIONAL
POSITION
A
B
C
Figure 45. Foot Pedal Adjustment
A. Deck Lift Foot Pedal
B. Pedal Mount Tab
C. Pedal Mount Hardware
D. Optional Position
Mowing Height Adjustment
The cutting height adjustment pin (A, Figure 44)
controls the mower cutting height. The cutting height
is adjustable between 1-3/4” (4,4 cm) and 5” (12,7
cm) in 1/4” (0,64 cm) increments.
1. Depress the deck lift foot pedal (B) until it locks
into the 5” (12,7 cm) position.
2. Place the cutting height adjustment pin in the
desired cutting height.
3. Depress the deck lift foot pedal then push the lock
lever (C) towards the right to release the lock.
4. Release the deck lift foot pedal until it comes to
rest against the cutting height adjustment pin.
Foot Pedal Adjustment
The deck lift foot pedal can be adjusted to
accommodate the operator’s height for optimal
comfort.
To adjust pedal position:
1. Remove the foot pedal (A, Figure 45) from the
pedal mount tab (B).
2. Remove the pedal mount hardware (C) and rotate
the tab 180 degrees.
3. Reinstall the pedal mount hardware and tighten
securely.
4. Reinstall the foot pedal on the pedal mount tab in
the proper orientation as shown in Figure 45.
Troubleshooting, Adjustment & Repair
