Regular Maintenance
Lubrication
Lubricate the unit at the locations shown in Figures
20 through 26 as well as the following lubrication
points.
Grease:
• front caster wheel axles & yokes
• deck lift pivot blocks
• mower deck spindles
• mower deck idler arm
• pump & PTO drive idler arms
• drive shaft universal joint
Use grease fittings when present. Disassemble parts
to apply grease to moving parts when grease fittings
are not installed.
Not all greases are compatible. Ferris Red Grease
(p/n 5022285) is recommended, automotive-type
high-temperature, lithium grease may be used when
this is not available.
Oil:
• control handle pivots
• seat plate pivots
• deck lift pivots
• discharge chute hinge
Generally, all moving metal parts should be oiled
where contact is made with other parts. Keep oil
and grease off belts and pulleys. Remember to wipe
fittings and surfaces clean both before and after
lubrication.

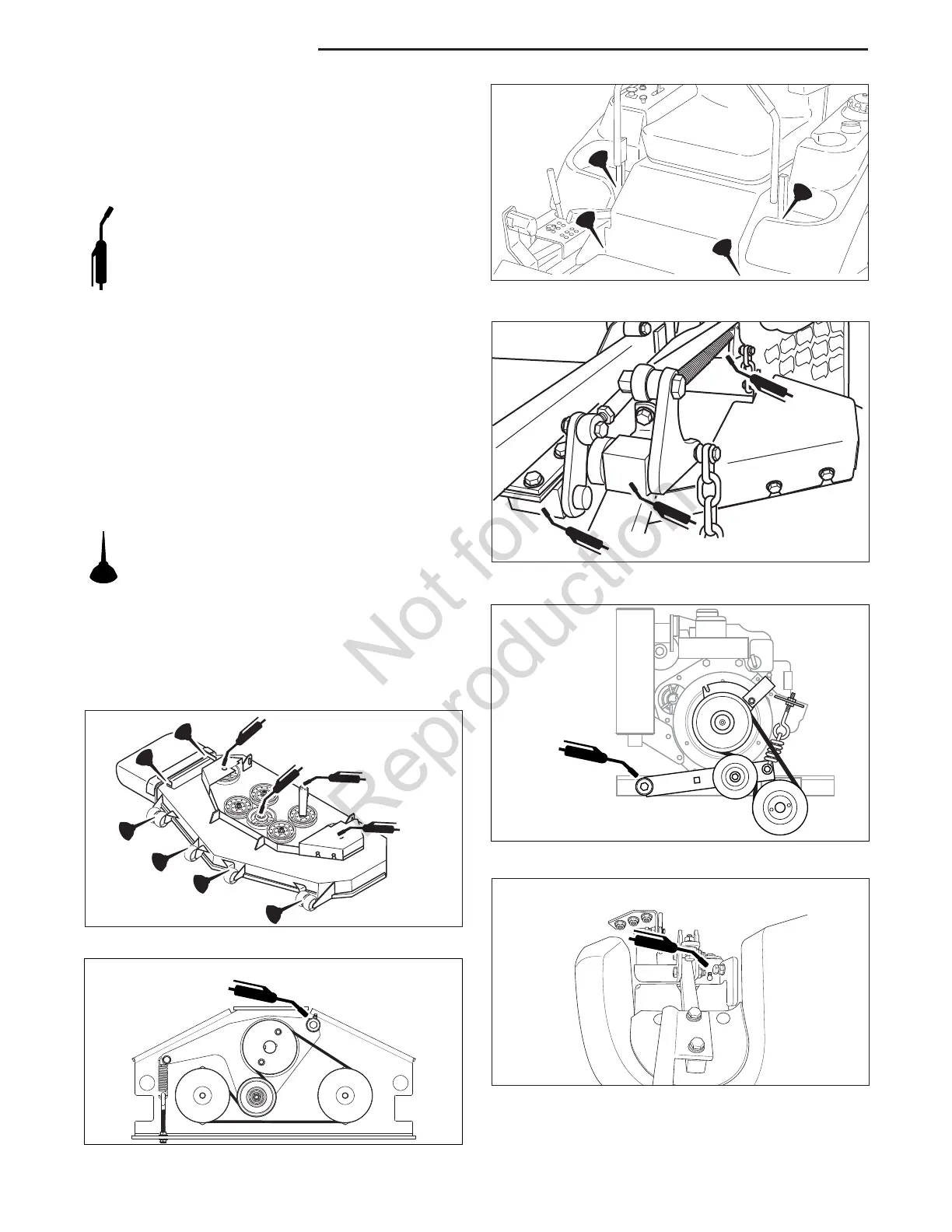

Figure 23. Deck Lift Linkage Pivots
Figure 22. Control Handle Pivots & Seat Plate Pivots
Figure 20. Deck Lubrication
Figure 25. Suspension Pivots
Figure 21. Pump Drive Idler Arm
Figure 24. PTO Drive Idler Arm
