18 ferrismowers.com
DISENGAGE: Releases the
parking brake.
ENGAGE: Locks the parking
brake.

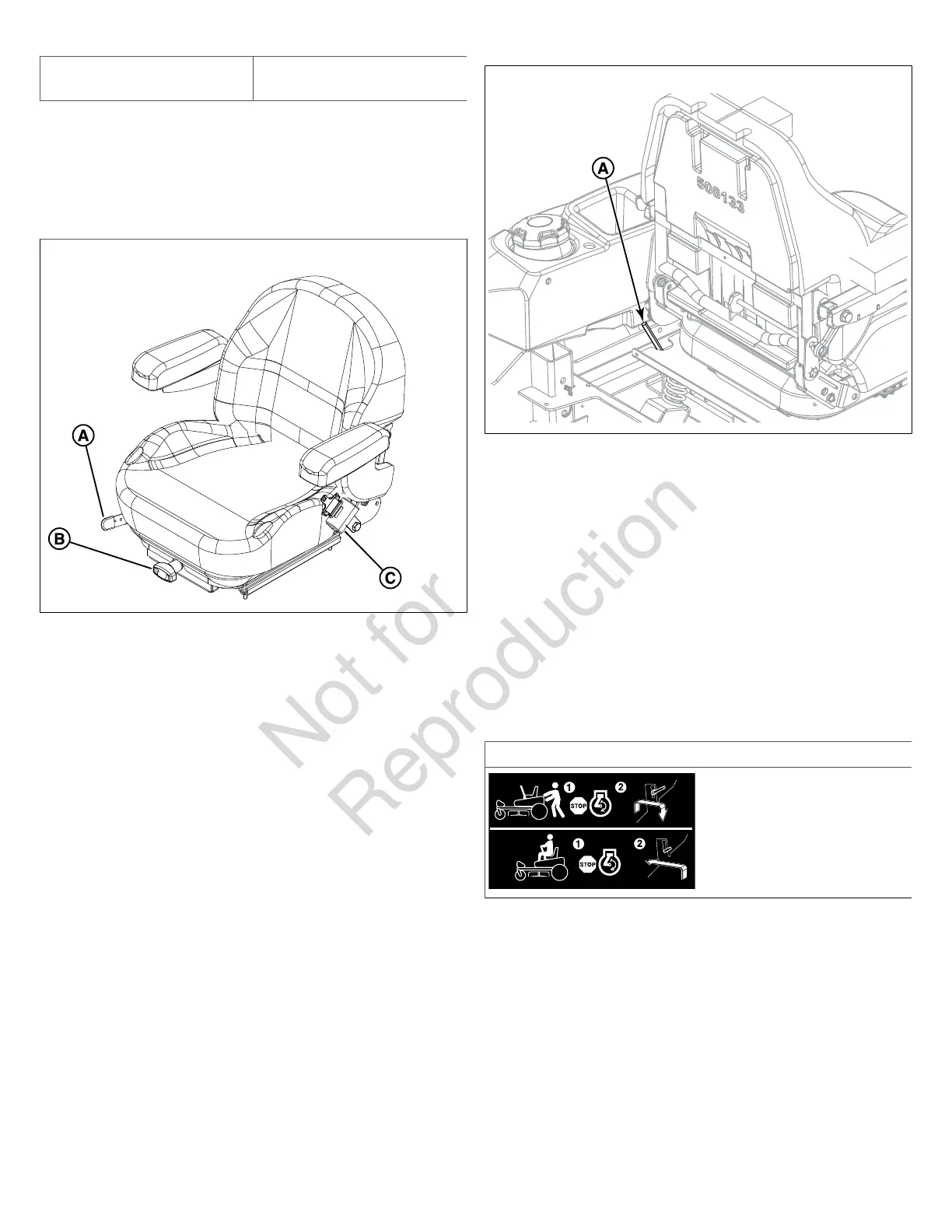

Suspension Seat
Some models are equipped with a suspension seat. This
seat has several additional options. See Figure 9 and the
list below for the location of the seat's features and brief
description of their function.
9
A. Seat Adjustment Lever (Forwards/Backwards): The
seat can be adjusted forwards and back. Move the
forwards/backwards seat adjustment lever, position the
seat as desired, and release the lever to lock the seat in
position.
B. Seat Adjustment Knob (Suspension/Ride Comfort):
The seat adjustment knob adjusts the suspension of the
seat (ride comfort). Turn the adjustment knob until the
display scale has a reading that matches the weight of
the operator.
C. Retractable Seat Belt: The seat belt is used to secure
the operator to the seat.
Note:The seat belt should always be worn when the Roll
Bar is in the raised and locked position. The seat belt should
never be worn when the roll bar is in the down position.
Seat Latch:The seat latch (A, Figure10) secures the seat
plate to the frame of the unit
10
To raise the seat plate, release the latch by moving the seat
latch towards the front of the unit and then raise the seat
plate.
The seat latch is spring loaded. When the seat plate is
lowered back into place the seat latch will lock the seat plate
into place.
Fuel Tank Cap: To remove the cap, turn counter-clockwise.
Removable Floor Plate: The floor plate can be removed for
easy access to the mower deck. To remove the plate, remove
the retainer hardware and tilt the floor pan up and then
remove from the unit. Reverse the process for re-installation.
Transmission Release Levers:
Symbols Control Name
Transmission Release Levers
Each transmission is equipped with a transmission release
lever. These levers deactivate the transmissions so that the
unit can be pushed by hand. Both transmission release levers
must be in the same position whether you are driving the
unit or pushing it by hand. See Pushing the Unit by Hand for
operational information and control location.
Transmission Oil Fill: Transmission oil is added through the
hydraulic oil tanks. It also serves as extra holding capacity
for oil as the transmissions heat up and the hydraulic oil
expands. See Check / Fill Transmission Oil for oil level check
and fill procedures.
