35
2. Place the cutting height adjustment pin in any open
cutting height hole. The lift lock lever holds the mower
deck at 5" (12,7 cm) while cutting.
Foot Pedal Adjustment
The deck lift foot pedal can be adjusted to accommodate the
operator’s height for optimal comfort.
To adjust pedal position:

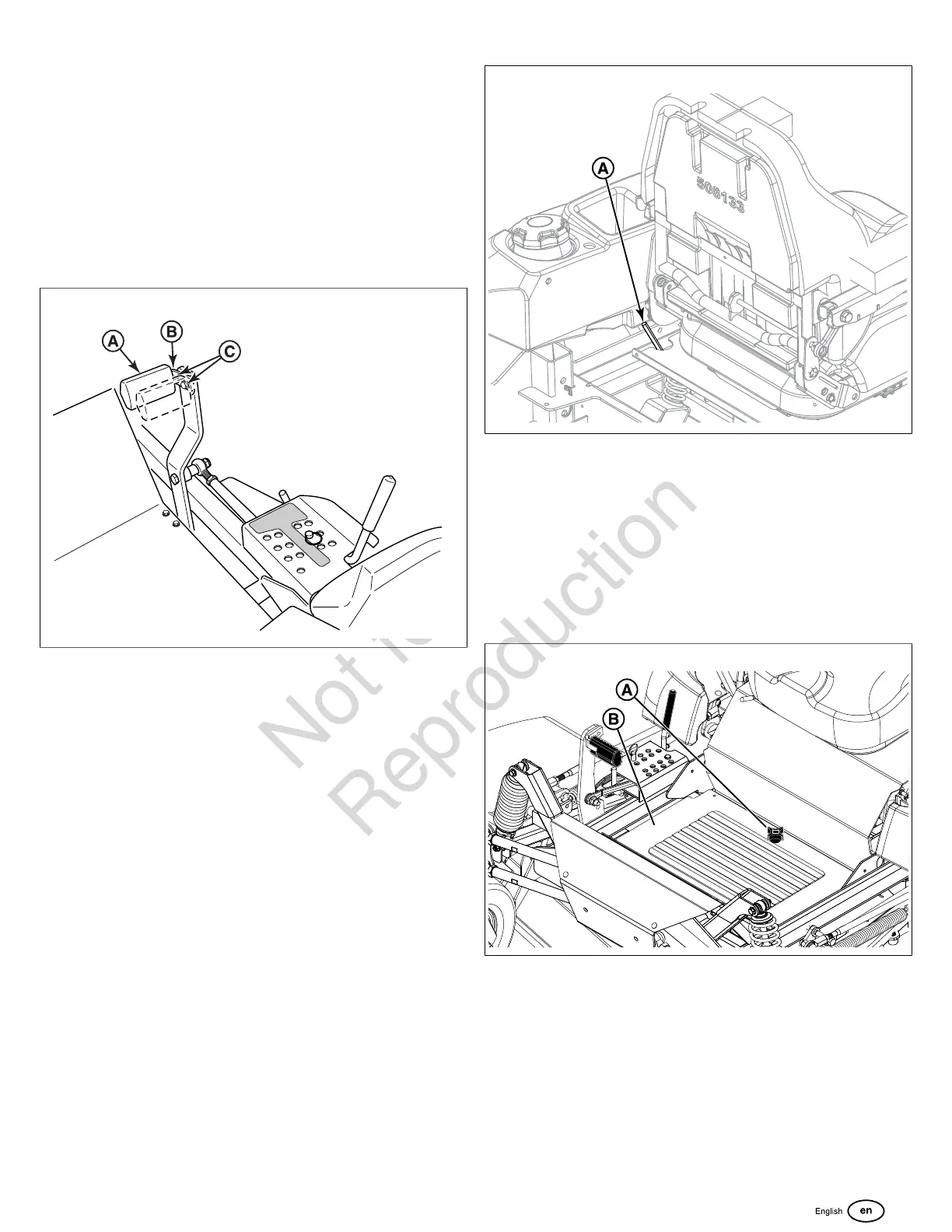

1. Remove the foot pedal (A, Figure 43) from the pedal
mount tab (B).
43
2. Remove the pedal mount hardware (C) and rotate the tab
180 degrees.
3. Reinstall the pedal mount hardware and tighten securely.
4. Reinstall the foot pedal on the pedal mount tab in the
proper orientation as shown in Figure 43.
Operating the Seat Latch
Some models are equipped with a seat latch that secures the
seat plate in place. The seat latch is located by the left rear
corner of the seat plate.
1. To raise the seat plate, release the latch by moving the
seat latch (A, Figure44) towards the front of the unit and
then raise the seat plate.
44
2. The seat latch is spring loaded. When the seat plate is
lowered back into place the seat latch will lock the seat
plate into place.
Floor Pan Removal & Installation
This unit is equipped with a removable floor pan which can be
removed to provide better access to the mower deck.
1. Loosen and remove the retaining hardware (A, Figure 45)
that secures the floor pan to the frame of the unit.
45
2. Tilt the back end of the floor pan up and then remove it
from the unit.
3. To re-install the floor pan: Reverse the removal
procedure.
Neutral Adjustment
The neutral system for this unit consists of two neutral linkage
rods and a pivot that connects the ground speed control
lever to the transmission. The lower rod that connects the
transmission to the pivot is factory preset and should not be
changed for neutral adjustment purposes. The adjustment is
