4

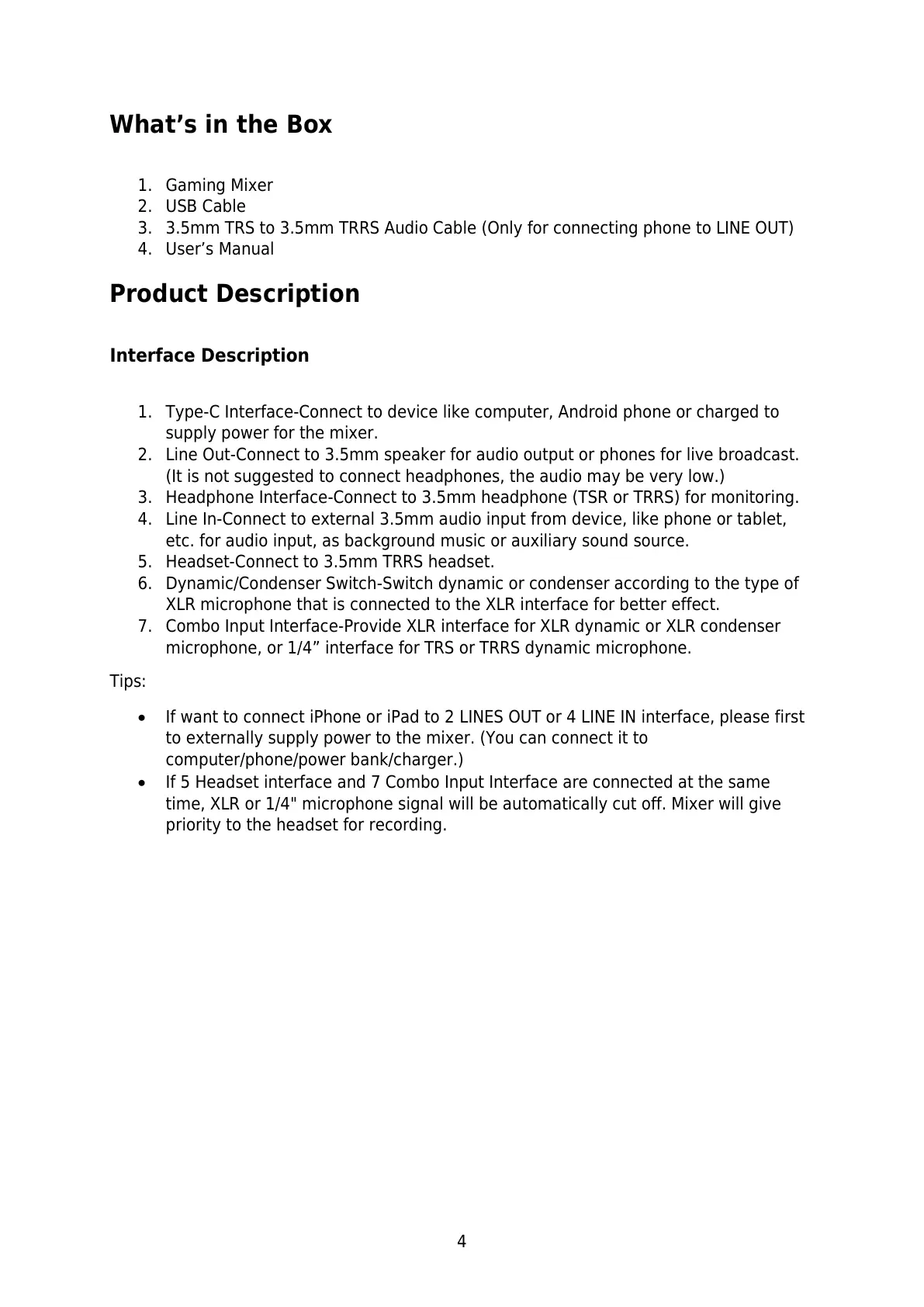

What’s in the Box
1. Gaming Mixer
2. USB Cable
3. 3.5mm TRS to 3.5mm TRRS Audio Cable (Only for connecting phone to LINE OUT)
4. User’s Manual
Product Description
Interface Description
1. Type-C Interface-Connect to device like computer, Android phone or charged to
supply power for the mixer.
2. Line Out-Connect to 3.5mm speaker for audio output or phones for live broadcast.
(It is not suggested to connect headphones, the audio may be very low.)
3. Headphone Interface-Connect to 3.5mm headphone (TSR or TRRS) for monitoring.
4. Line In-Connect to external 3.5mm audio input from device, like phone or tablet,
etc. for audio input, as background music or auxiliary sound source.
5. Headset-Connect to 3.5mm TRRS headset.
6. Dynamic/Condenser Switch-Switch dynamic or condenser according to the type of
XLR microphone that is connected to the XLR interface for better effect.
7. Combo Input Interface-Provide XLR interface for XLR dynamic or XLR condenser
microphone, or 1/4” interface for TRS or TRRS dynamic microphone.
Tips:
If want to connect iPhone or iPad to 2 LINES OUT or 4 LINE IN interface, please first
to externally supply power to the mixer. (You can connect it to
computer/phone/power bank/charger.)
If 5 Headset interface and 7 Combo Input Interface are connected at the same
time, XLR or 1/4" microphone signal will be automatically cut off. Mixer will give
priority to the headset for recording.
