Functions type 12.51
All the functions and the values can be set through the joystick and are displayed on the LCD.

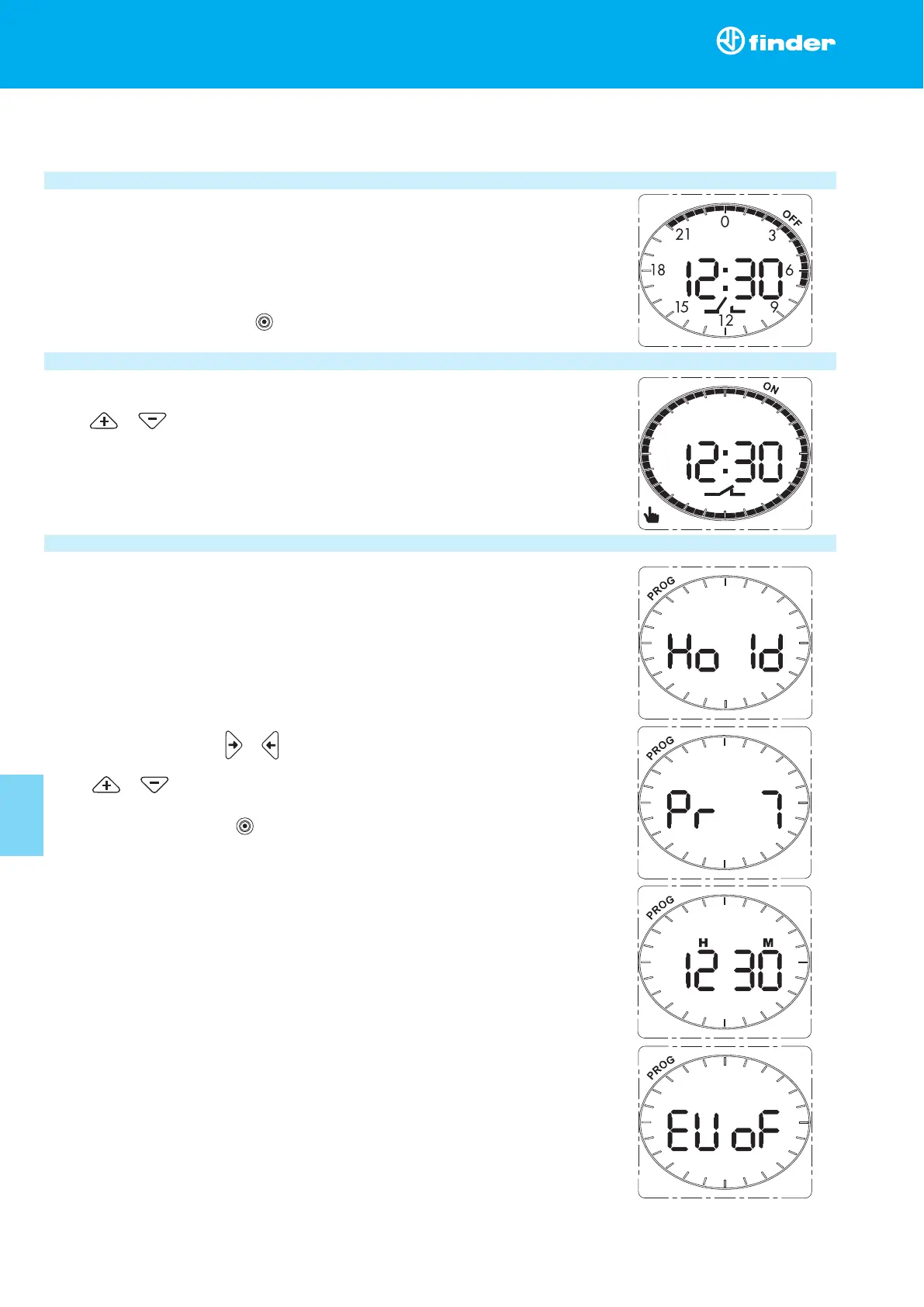

Display mode
During normal operation, with AC supply connected, the following is displayed:
- the current time (hours and minutes)
- the status (ON/OFF and symbol of contact open/closed) of the 11-14 output contact
- the program for the current day (each solid segment represents an half-hour interval set to ON)
From Display mode it is possible to enter in Program mode or Setup mode respectively with a short or
long (> 2s) press to the joystick centre .
Manual mode
From Display mode it is also possible to enter in Manual mode, where (independently from the program)
the 11-14 output contact can be forced into the ON or OFF position with a long (> 2s) press to the
joystick or directions, respectively. The “hand” symbol is then displayed.
A long press in the opposite direction will exit the manual mode.
Setup mode
In this mode it is possible to set (in the following order):
- daily/weekly function
- current year
- current day
- current month
- current hour
- current minute
- enable/disable european summer time.
With a short press of the joystick or , it is possible to pass from one setup step to another
(confirming the set values); in any step it is possible to modify the set values with a short press to the
joystick or . A sustained (> 1s) press results in the fast increasing (or decreasing) of values.
A short press to the joystick centre will restore the Display mode.
Note: the product is supplied factory set to Central Europe time with european summer time enabled.
12
I-2014, www.findernet.com
12
SERIE S
12 Series - Time switches 16 A
