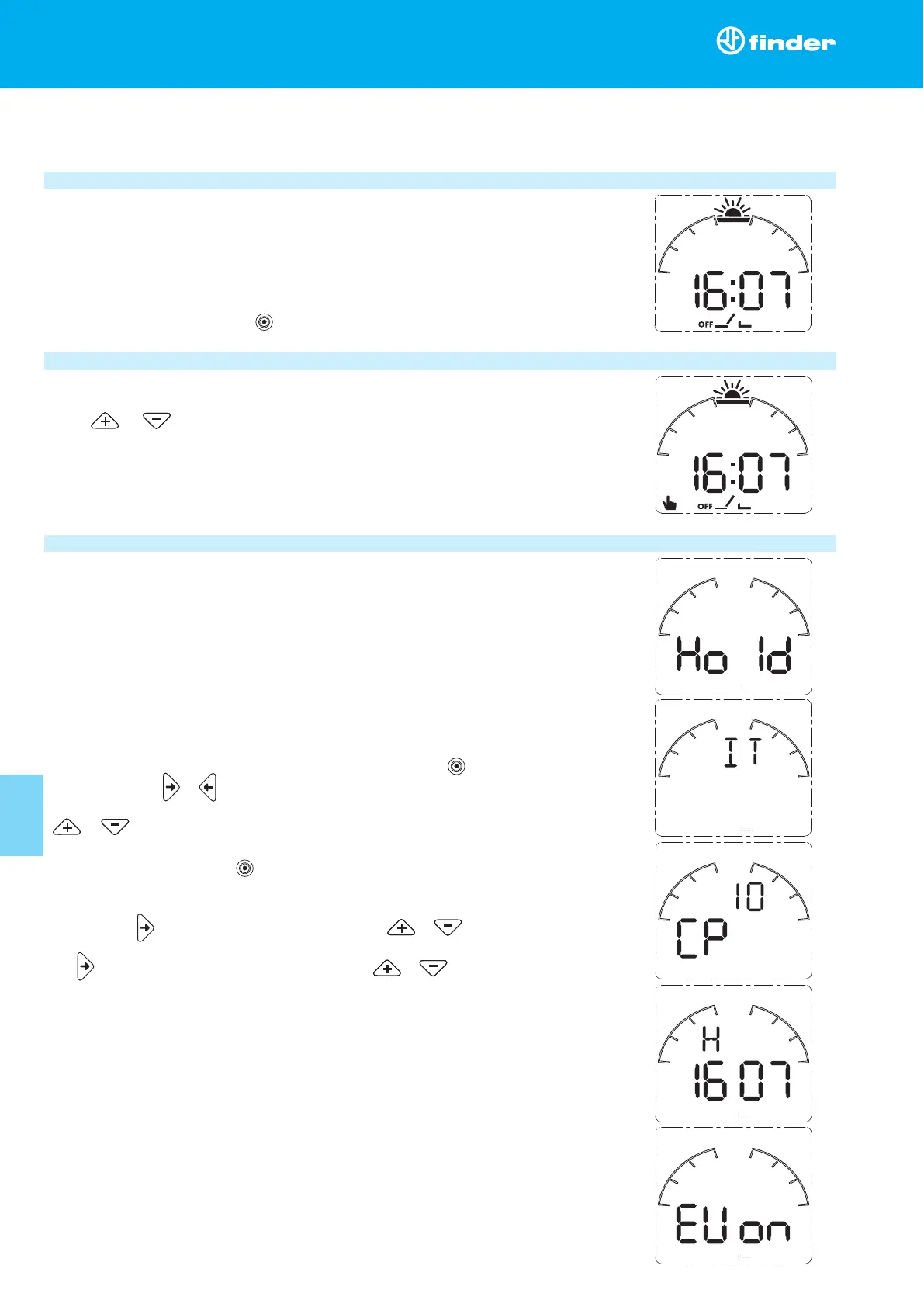

Functions type 12.81
All the functions and the values can be set through the joystick and are displayed on the LCD.
Display mode
During normal operation, with AC supply connected, the following is displayed:
- the current time (hours and minutes)
- the status (ON/OFF and symbol of contact open/closed) of the 11-14 output contact
From Display mode it is possible to enter in Program mode or Setup mode respectively with a short or
long (> 2s) press to the joystick centre .
Manual mode
From Display mode it is also possible to enter in Manual mode, where (independently from the program)
the 11-14 output contact can be forced into the ON or OFF position with a long (> 2s) press to the
joystick or directions, respectively. The “hand” symbol is then displayed.
A long press in the opposite direction will exit the manual mode.
Setup mode
In this mode it is possible to set (in the following order):
- country (using Internet websites extension, e.g. IT, DE, FR..)
- post-code (CP, setting only the first 2 digits, 00 to 99 - or letters for UK)
- current year
- current day
- current month
- current hour
- current minute
- enable/disable european summer time.
From the Display mode - Enter the Setup mode with a long press (> 2 s) to .
With a short press to or , it is then possible to pass from one setup step to another
(confirming the set values). In any step it is possible to modify the set values with a short press to
or . A sustained (> 1s) press results in the fast increment (or decrement) of values.
A short press to the joystick centre will restore the Display mode.
If the “country” is set to “Coor” (between IT and HU) or if the “postal code” is set to “Coor” (between 99
and 00*), press to view the coordinates of latitude and use or to set between 30 and 64 °
North.
Press again to view the coordinates of longitude and use or to set between 15 ° West and
50 ° East). Proceed in a similar way to set the time zone “Gmt” (00 corresponds to Greenwich Mean
Time, 01 Central Europe, 02 Eastern Europe, and 03 European Russia), and then continue with setting
year, day, month etc..
*or between ZE and AB for UK post codes.
Note: the product is supplied with the following factory settings:
- Central Europe time,
- european summer time enabled,
- country Italy,
- post-code 00 (the capital city Rome).
