Instruction Manual
D103412X012
Installation
July 2013
11
Section 2 Installation2-2-
Installation
WARNING
Avoid personal injury or property damage from sudden release of process pressure or bursting of parts. Before proceeding
with any Installation procedures:
Always wear protective clothing, gloves, and eyewear to prevent personal injury or property damage.
If installing into an existing application, also refer to the WARNINGS at the beginning of the Maintenance section of this
instruction manual.
Check with your process or safety engineer for any additional measures that must be taken to protect against process
media.
WARNING
To avoid static discharge from the plastic cover when flammable gases or dust are present, do not rub or clean the cover
with solvents. To do so could result in a spark that may cause the flammable gases or dust to explode, resulting in personal
injury or property damage. Clean with a mild detergent and water only.
Refer to the quick start guide that ships with the instrument (D103556X012) for Hazardous Area Approvals and Special
Instructions for “Safe Use” and Installations in Hazardous Locations.
Mounting
DVC6200f Digital Valve Controller
The DVC6200f housing is available in two different configurations, depending on the actuator mounting method.
Figure 2‐1 shows the available configurations.

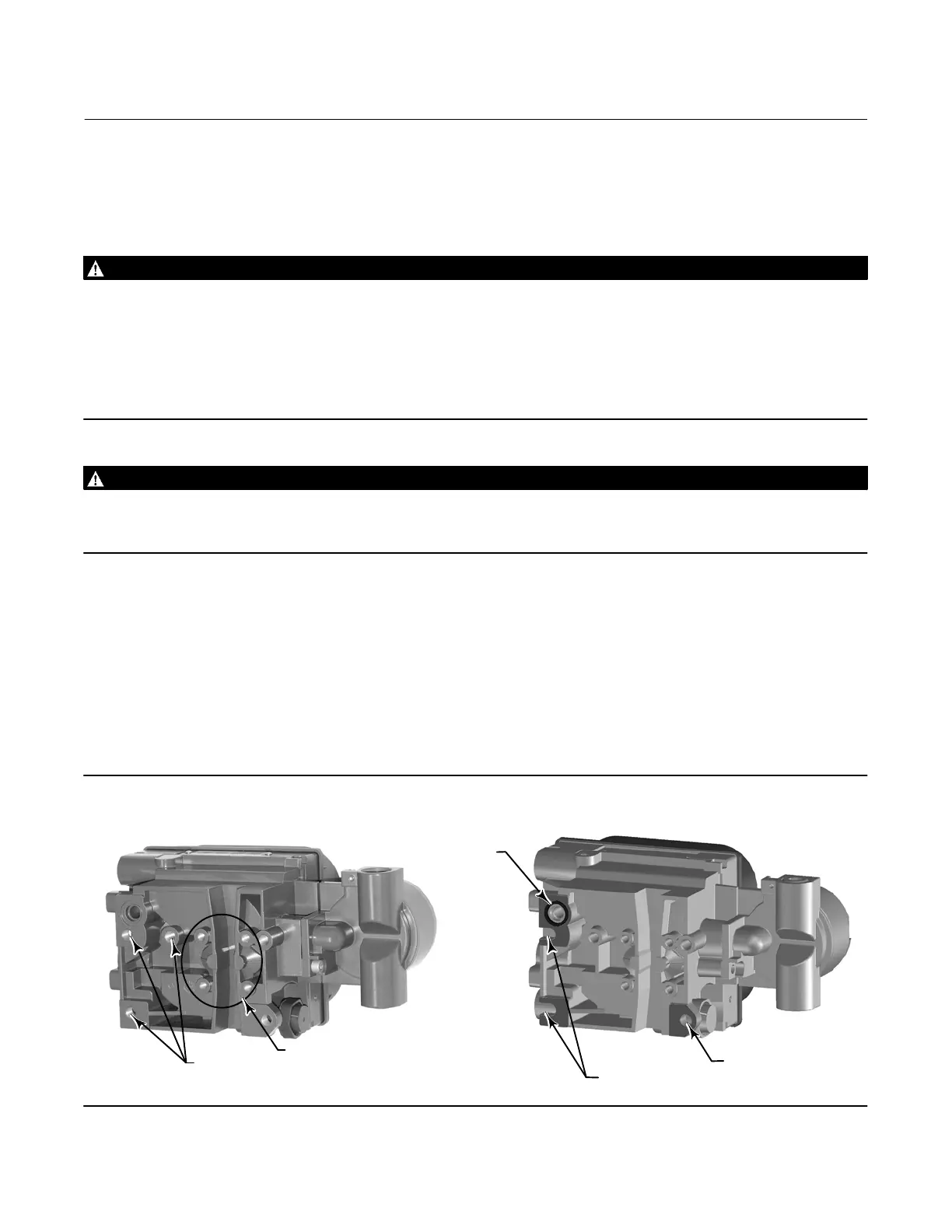

Figure 2‐1. Housing Configurations
LINEAR, M8
ROTARY NAMUR, M6
SLOTS FOR
MOUNTING BOLTS
HOUSING FOR
LINEAR AND ROTARY ACTUATORS
HOUSING FOR
FISHER GX ACTUATORS
HOLE FOR
MOUNTING BOLT
W9704
W9703
INTEGRAL OUTPUT
PRESSURE PORT
