Instruction Manual
D103412X012
Introduction and Specifications
July 2013
4

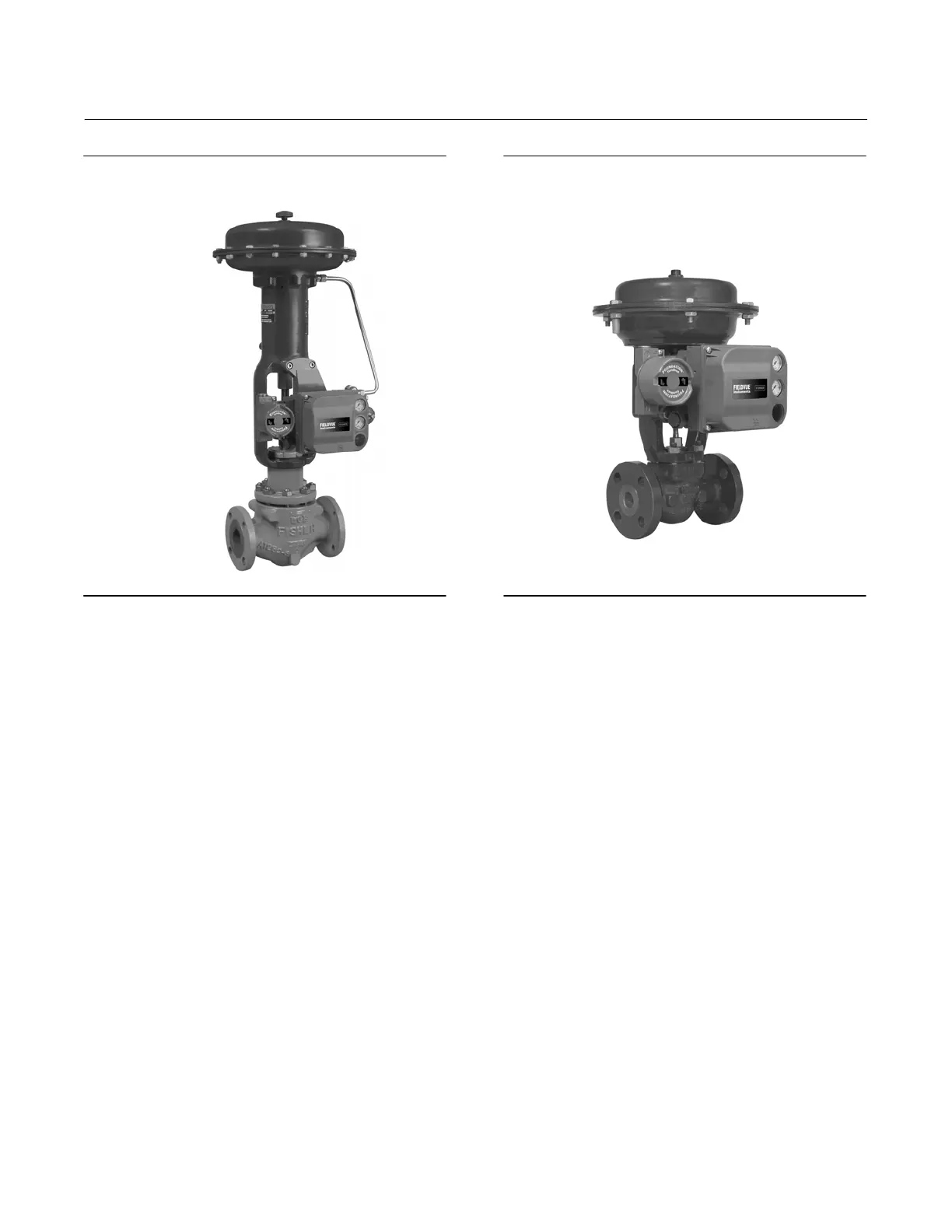

Figure 1‐2 FIELDVUE DVC6200f Digital Valve
Controller Mounted on a Fisher Sliding‐Stem Valve
Actuator
W9643_fieldbus
Figure 1‐3. FIELDVUE DVC6200f Digital Valve
Controller Integrally Mounted to a Fisher GX Control
Valve and Actuator System
W9616_fieldbus
DVC6200f digital valve controllers are available with several selections of control and diagnostic capability. Control
selections include:
 Standard Control (SC)— Digital valve controllers with Standard Control have the AO, PID, ISEL, OS, AI, MAI, DO, and
four DI function blocks in addition to the resource and transducer blocks.
 Fieldbus Control (FC)—Digital valve controllers with Fieldbus Control have the AO function block in addition to the
resource and transducer blocks.
 Fieldbus Logic (FL)—Digital valve controllers with Fieldbus Logic have the DO, and four DI function blocks, in
addition to the resource and transducer block.
The diagnostic capabilities include:
 Performance Diagnostics (PD)
 Advanced Diagnostics (AD)
 Fieldbus Diagnostics (FD)
Performance and Advanced Diagnostics are available with ValveLink software. They provide visibility to instrument
alerts. Fieldbus Diagnostics can be viewed with any host system.
