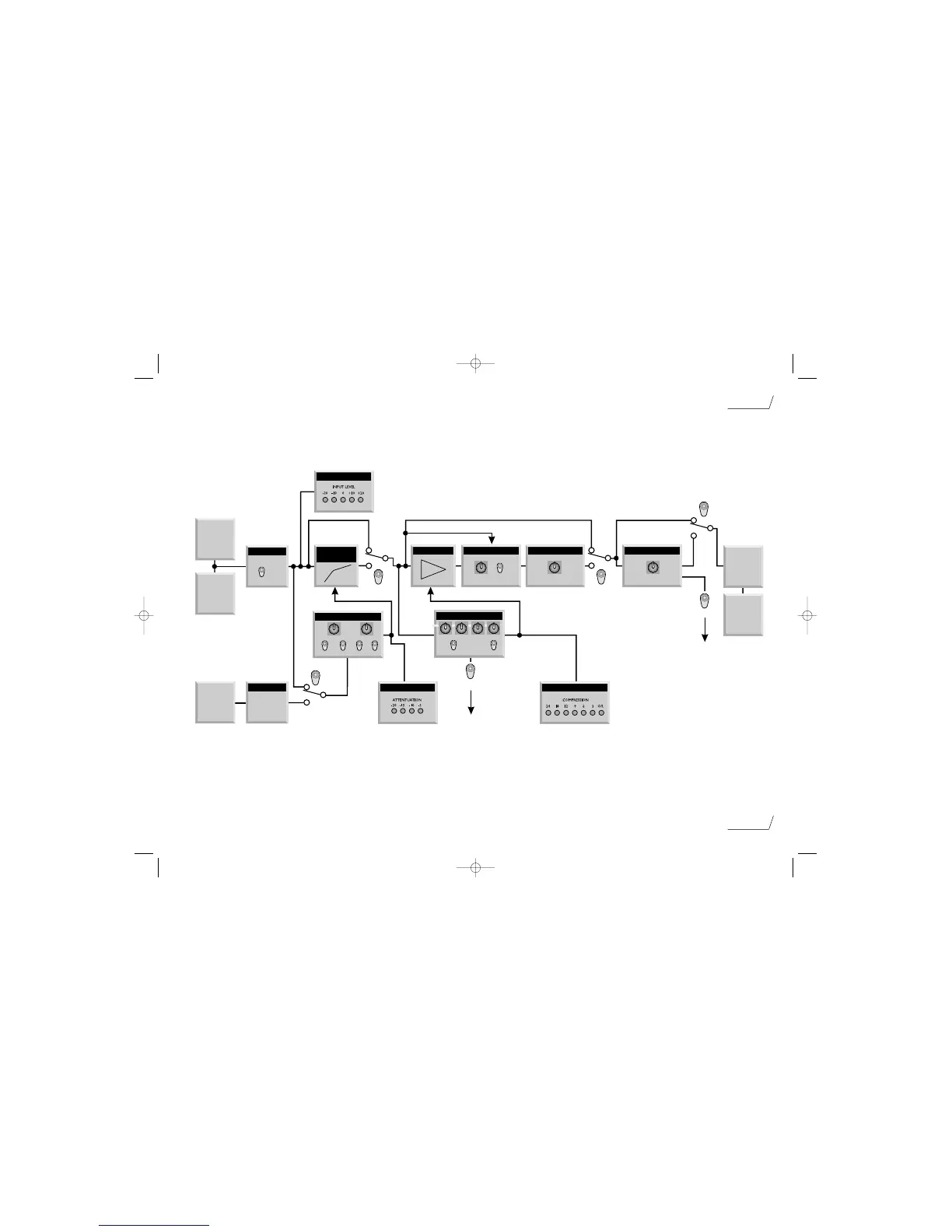

Block Diagram of the ComPounder
AUDIO INPUT
KEY INPUT
VCAGATE/
EXPANDER
INPUT LEVEL
FAT BASS BOOST
MAKEUP GAIN LIMITER
XLR
OUTPUT
+4dBu
XLR
INPUT
JACK
OUTPUT
-10dBV
JACK
INPUT
JACK
INPUT
GATE ATTENUATION
COMPRESSION
+4/-10
bass expand
threshold
threshold ratio
release/hold
attack release
limiter
huge
fast attack
soft knee
full range expand
auto
hold
LIMITER IN
LINK COMP
CH 2
CH 2
LINK LIMIT
KEY
IN (gate)
COMP IN
Channel 1 only shown. Channel 2 is similar
make up
GATE S/CHAIN
COMP S/CHAIN
User.qxd 14/01/2000 11:56 Page 9
