Nm (41-52 lb-ft). Lubricate chain and sprockets with engine oil.
4. Inspect crankshaft front seal (6700) for burrs or cuts. If required, replace seal using Front Cover Seal
Installer T70P-6B070-A.
5. Position engine front cover gasket (6020) onto cylinder block alignment dowels.
6. Install engine front cover onto cylinder blocks (6010) using caution to not damage crankshaft front
seal.
7. Install retaining bolts and tighten as outlined in this section.
8. Install oil pan (6675) and new oil pan gasket (6710) as outlined in this section.
9. Install water pump (8501) if removed.
Install crankshaft vibration damper and crankshaft pulley as outlined in this section.

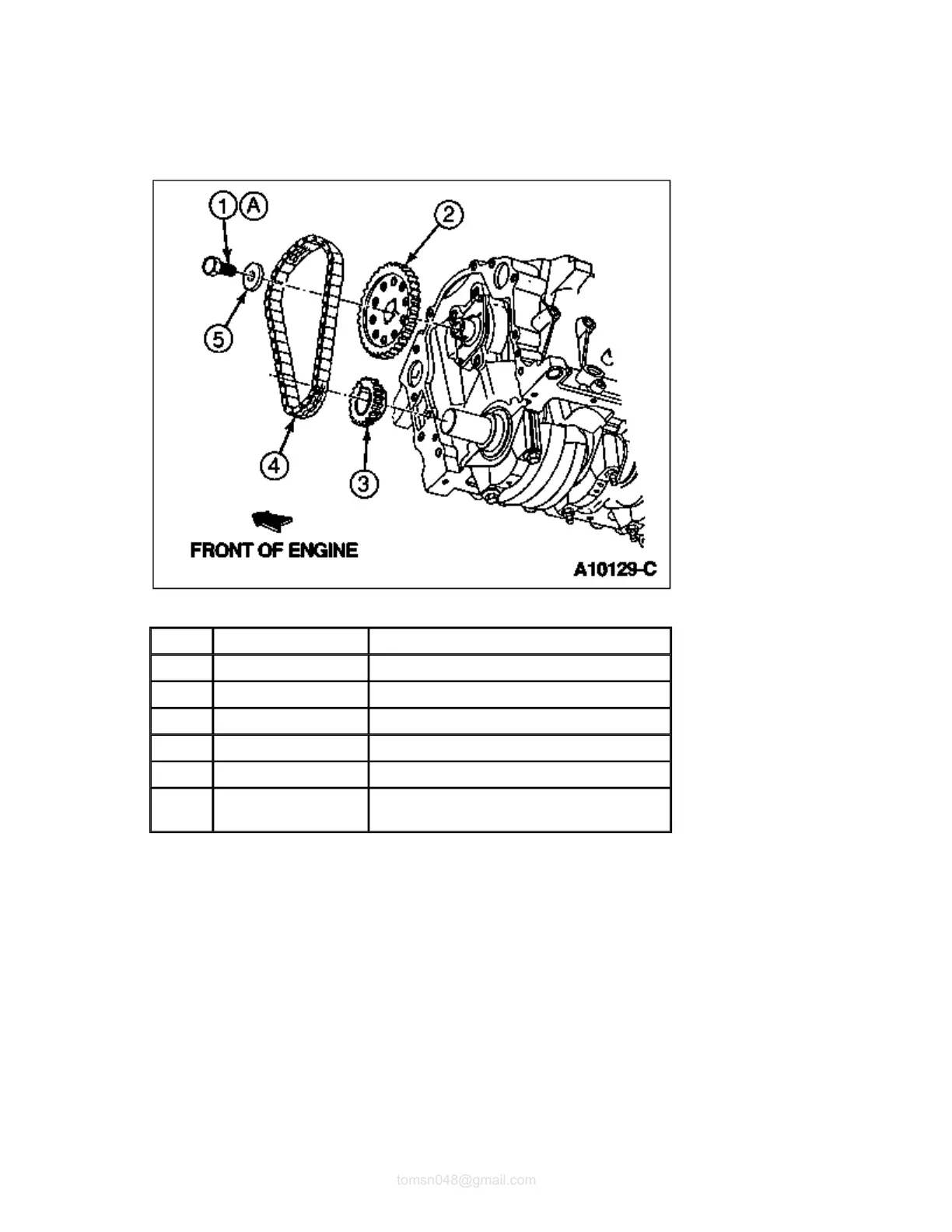

Item Part Number Description
1 6279 Camshaft Sprocket Bolt
2 6256 Camshaft Sprocket
3 6306 Crankshaft Sprocket
4 6268 Timing Chain/Belt
5 6278 Camshaft Sprocket Washer
A — Tighten to 55-70 Nm
(41-52 Lb-Ft)
