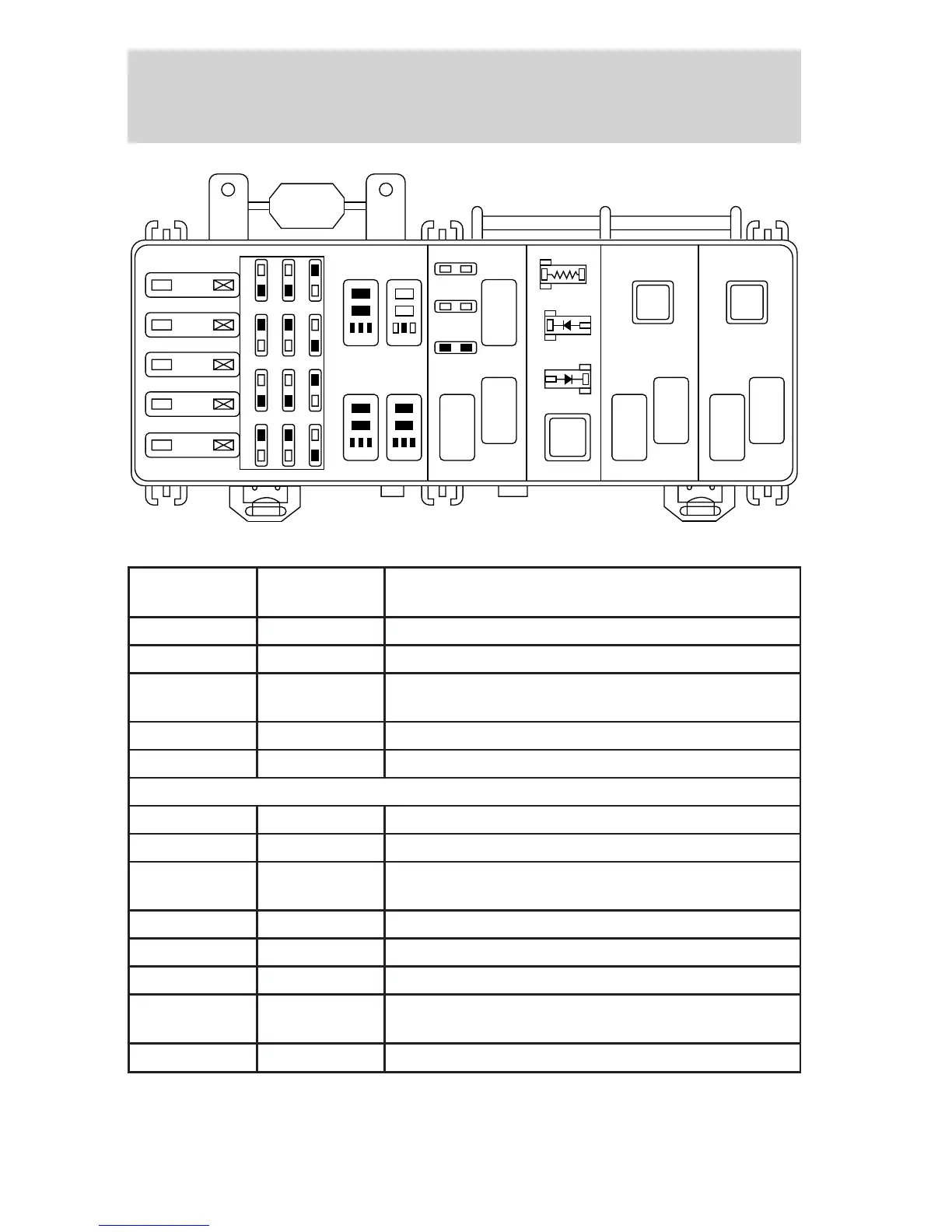

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box Description
1 50A** I/P Fuse Panel
2 40A** Blower Motor Relay
3 50A** 4 Wheel Anti-Lock Brake System (4WABS)
Module
4 20A** Power Windows
5 50A** Ignition Switch, Starter Relay
1 10A* A/C Relay
2 — Not Used
3 20A* Electronic Shift Relay and Electronic Shift
Control Module
4 20A* Fog Lamp and Daytime Running Lamps
5 15A Trailer Tow Park Lamps
6 10A* Powertrain Control Module
7 30A* 4 Wheel Anti-lock Brake System (4WABS)
Module
8 30A* PCM Relay
54321
12 11 10 9
8765
4321
1415 13
9
6
10
8
7
5
4
1
23
211
125
MEGAFUSE
11
13
12
14
Roadside emergencies
145
