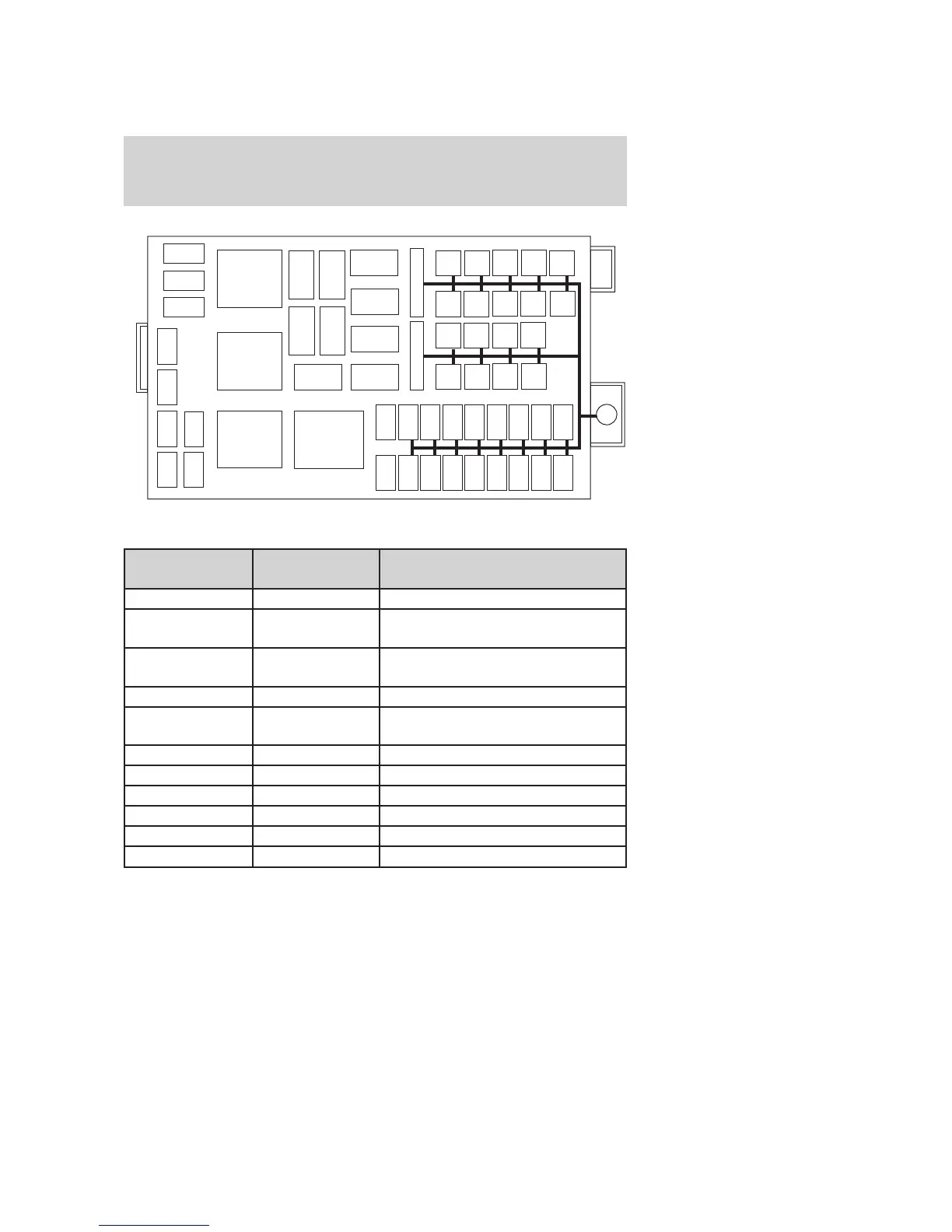

The high-current fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box
Description
1 30A* Ignition switch
2 20A* Moon roof, Spot lights (Police
vehicles only)
3 10A* Powertrain Control Module (PCM)
keep alive power, Canister vent
4 20A* Fuel relay feed
5 10A* Rear Air Suspension Module
(RASM), VAPS module
6 15A* Alternator regulator
7 30A* PCM relay feed
8 20A* Driver’s Door Module (DDM)
9 15A* Ignition coil relay feed
10 20A* Horn relay feed
11 15A* A/C clutch relay feed
503
502
501
24
23
20
19
22
21
302
303
304
301
207
201
202
203
204
209
206
208
205
602
118
114
110
106
102
117
113
109
105
101
116
112
108
104
115
111
107
103
18
16
14
12
10
8
6
4
2
17
15
13
11
9
7
5
3
1
601
2007 Crown Victoria (cro)
Owners Guide (post-2002-fmt)
USA (fus)
