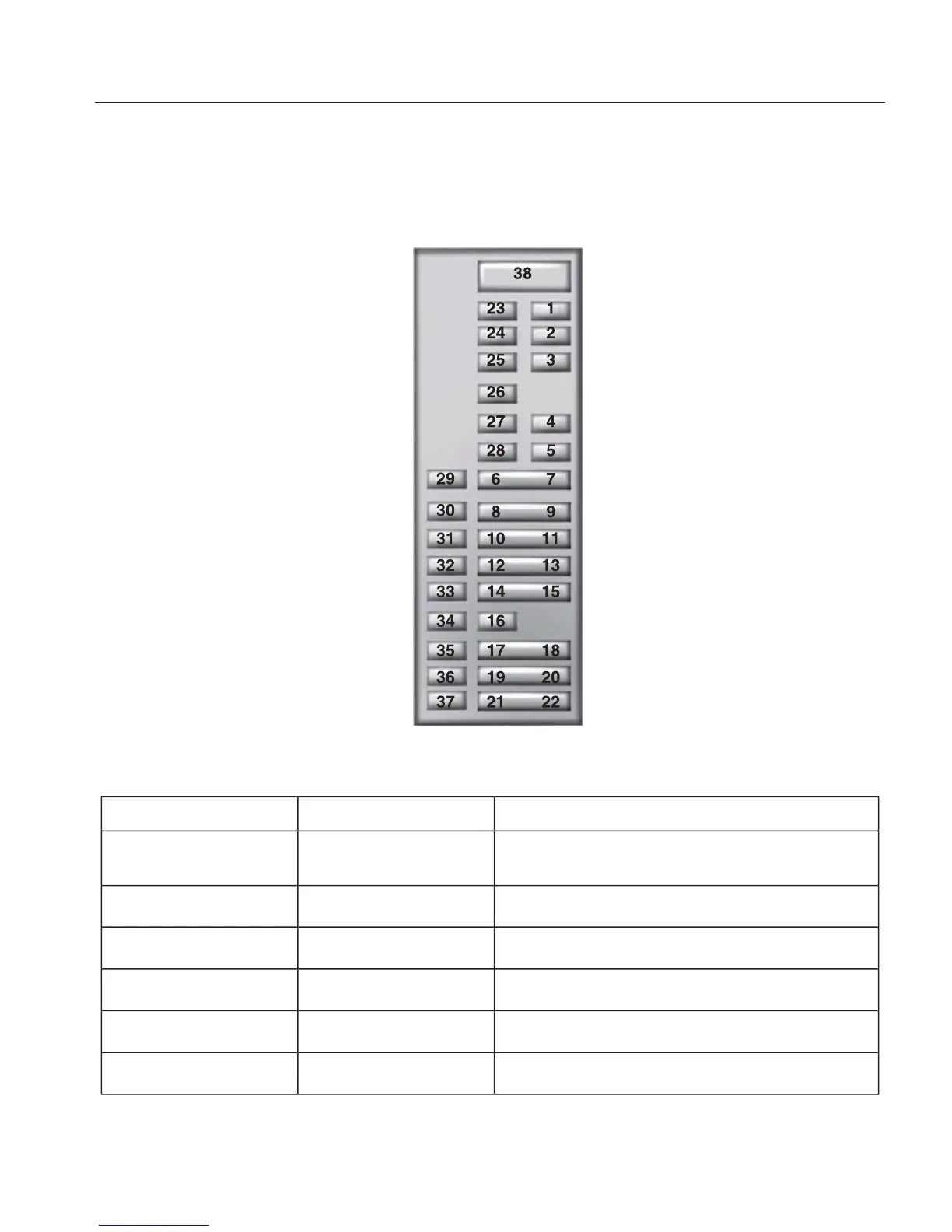

Passenger Compartment Fuse

Panel

The fuse panel is located under the

instrument panel to the left of the steering

column.

Note: It may be easier to access the fuse

panel if you remove the finish trim piece.

E145984

The fuses are coded as follows:

Protected componentsFuse amp ratingFuse or relay number

Lighting (ambient, glove box, vanity, dome,

trunk)

10A

Memory seats, Lumbar, Power mirror

7.5A

Driver door unlock

20A

Not used (spare)

Subwoofer amplifier

20A

Not used (spare)

10A

231

Fuses
