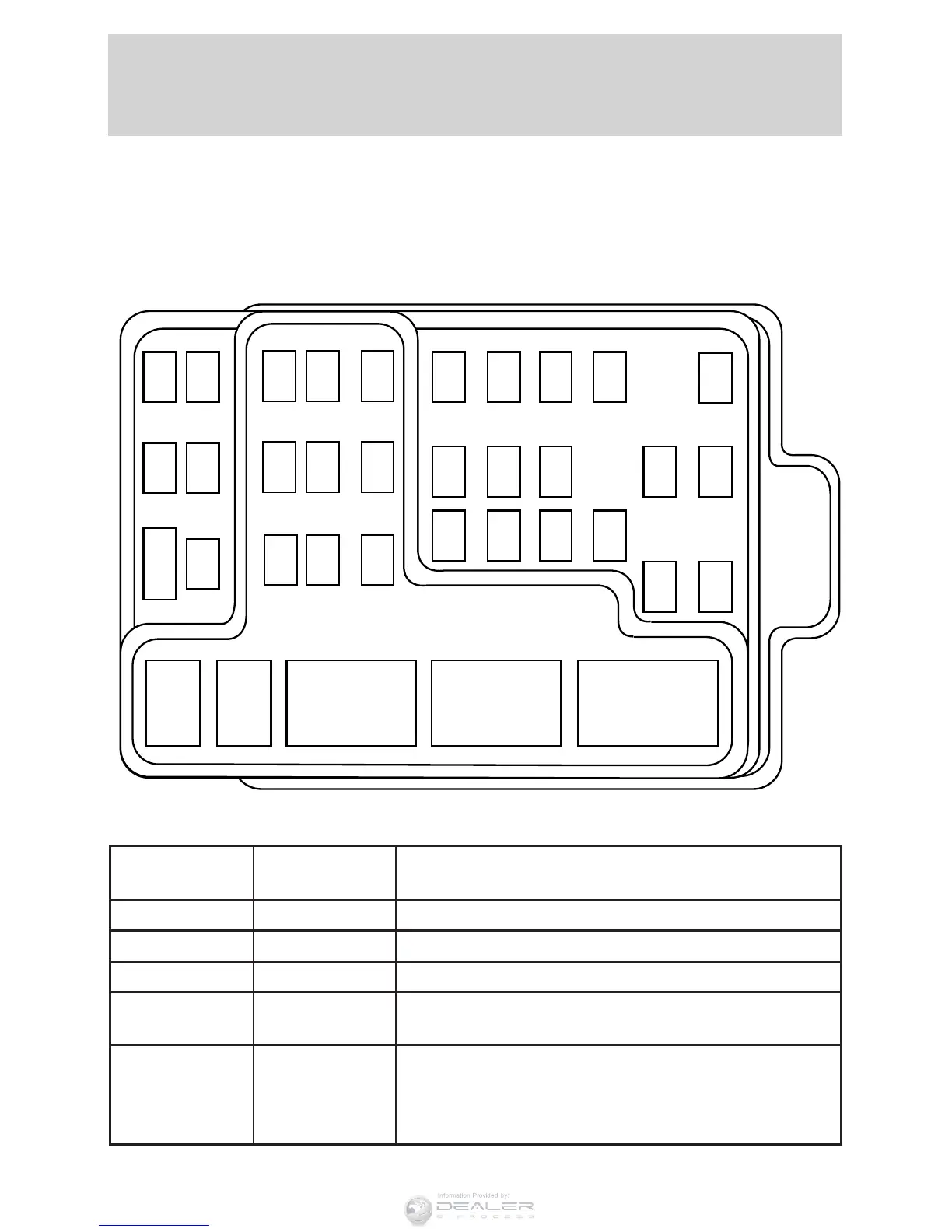

Passenger compartment fuse panel
The fuse panel is located below and to the left of the steering wheel by
the brake pedal. Remove the panel cover to access the fuses.
To remove a fuse use the fuse puller tool provided on the fuse panel cover.
The fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment Fuse Panel
Description
1 15A Audio
2 5A Powertrain Control Module (PCM), Cluster
3 20A Cigar Lighter, Data Link Connector
4 5A Exterior Rear View Mirror Switch, Mirror
turn Signal Relays
5 15A Speed Control Module, Reverse Lamp,
Climate Mode Switch, Daytime Running
Lamp Relay, Digital Transmission Range
(DTR) Sensor
FUSE1 12 22
21323
617 27
718 28
819 29
930
20
312111
10
RELAY
5
RELAY
4
RELAY
3
RELAY
2
RELAY
1
31424
41525
51626
Roadside emergencies
190
