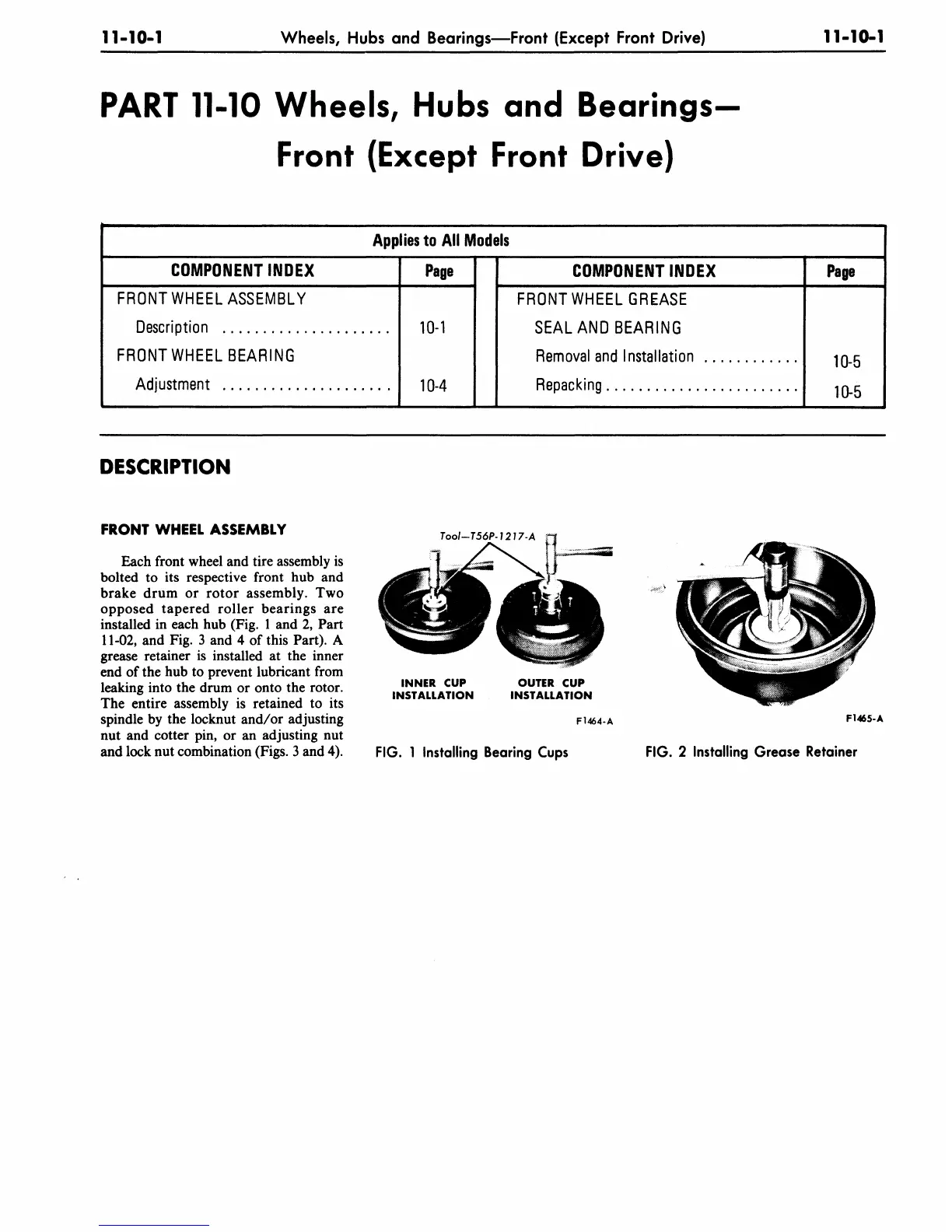

11-10-1
Wheels, Hubs and Bearings—Front (Except Front Drive)
11-10-1
PART 11-10 Wheels, Hubs and Bearings-
Front (Except Front Drive)
Applies to All Models
COMPONENT INDEX
FRONT WHEEL ASSEMBLY
Description
FRONT WHEEL BEARING
Adjustment
Page
10-1
10-4
COMPONENT INDEX
FRONT WHEEL GREASE
SEAL AND BEARING
Removal and Installation
Repacking
Page
10-5
10-5
DESCRIPTION
FRONT WHEEL ASSEMBLY
Each front wheel and tire assembly is
bolted to its respective front hub and
brake drum or rotor assembly. Two
opposed tapered roller bearings are
installed in each hub (Fig.
1
and 2, Part
11-02,
and Fig. 3 and 4 of this Part). A
grease retainer is installed at the inner
end of the hub to prevent lubricant from
leaking into the drum or onto the rotor.
The entire assembly is retained to its
spindle by the locknut and/or adjusting
nut and cotter pin, or an adjusting nut
and lock nut combination
(Figs.
3
and 4).
Tool-T56P-1217-A
INNER CUP
INSTALLATION
OUTER CUP
INSTALLATION
F1464-A
FIG.
1 Installing Bearing Cups
F1465-A
FIG.
2 Installing Grease Retainer
