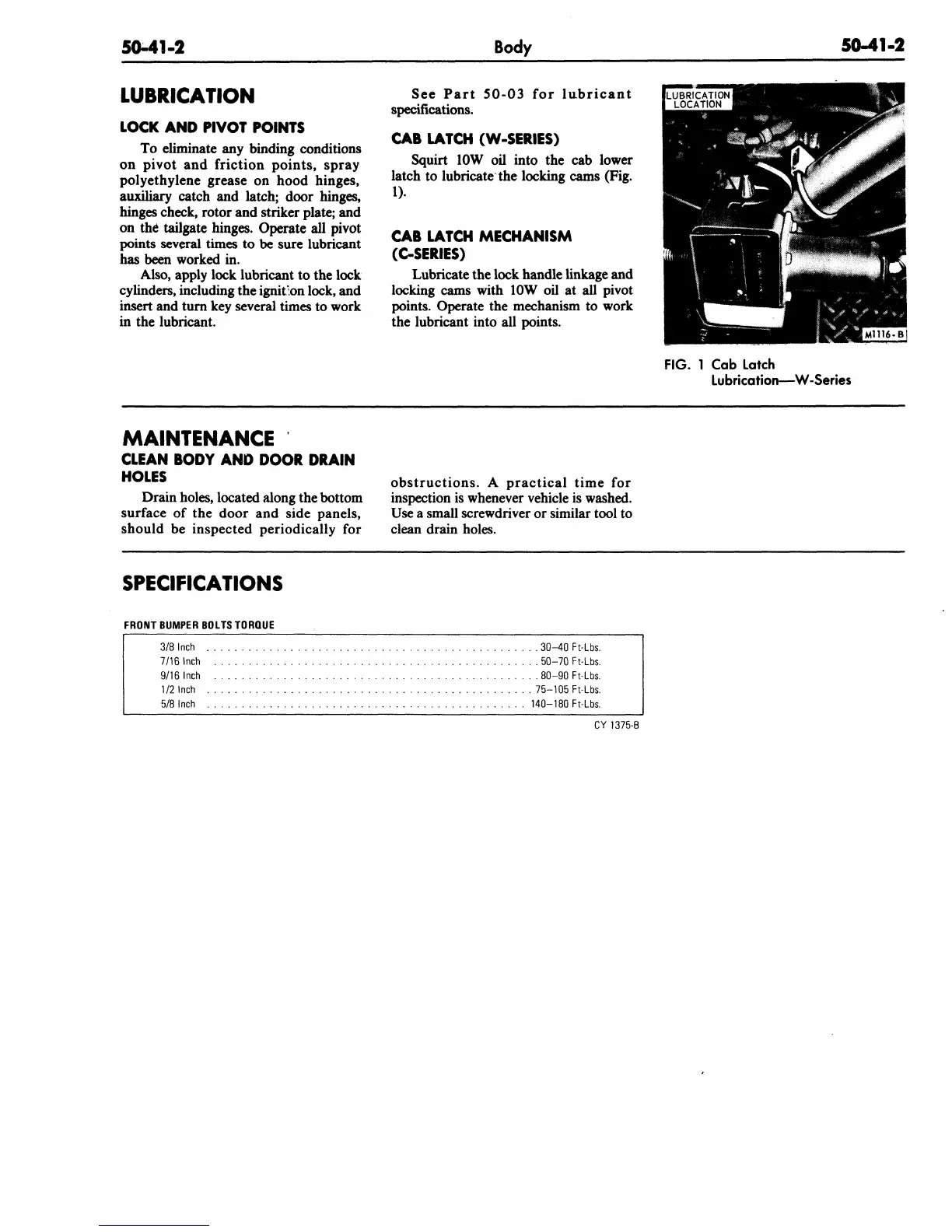

50-41-2
Body
50-41-2
LUBRICATION
LOCK AND PIVOT POINTS
To eliminate any binding conditions
on pivot and friction points, spray
polyethylene grease on hood hinges,
auxiliary catch and latch; door hinges,
hinges check, rotor and striker plate; and
on th6 tailgate hinges. Operate all pivot
points several times to be sure lubricant
has been worked in.
Also,
apply lock lubricant to the lock
cylinders, including the ignition lock, and
insert and turn key several times to work
in the lubricant.
See Part 50-03 for lubricant
specifications.
CAB LATCH (W-SERIES)
Squirt 10W oil into the cab lower
latch to lubricate the locking cams (Fig.
1).
CAB LATCH MECHANISM
(C-SERIES)
Lubricate the lock handle linkage and
locking cams with 10W oil at all pivot
points. Operate the mechanism to work
the lubricant into all points.
FIG.
1 Cab Latch
Lubrication—W-Series
MAINTENANCE
CLEAN BODY AND DOOR DRAIN
HOLES
Drain holes, located along the bottom
surface of the door and side panels,
should be inspected periodically for
obstructions. A practical time for
inspection is whenever vehicle is washed.
Use a small screwdriver or similar tool to
clean drain holes.
SPECIFICATIONS
FRONT BUMPER BOLTS TORQUE
3/8 Inch
7/16 Inch
9/16 Inch
1/2 Inch
5/8 Inch
30-40 Ft-Lbs
50-70 Ft-Lbs.
80-90 Ft-Lbs
75-105 Ft-Lbs.
140-180 Ft-Lbs
CY 1375-B
