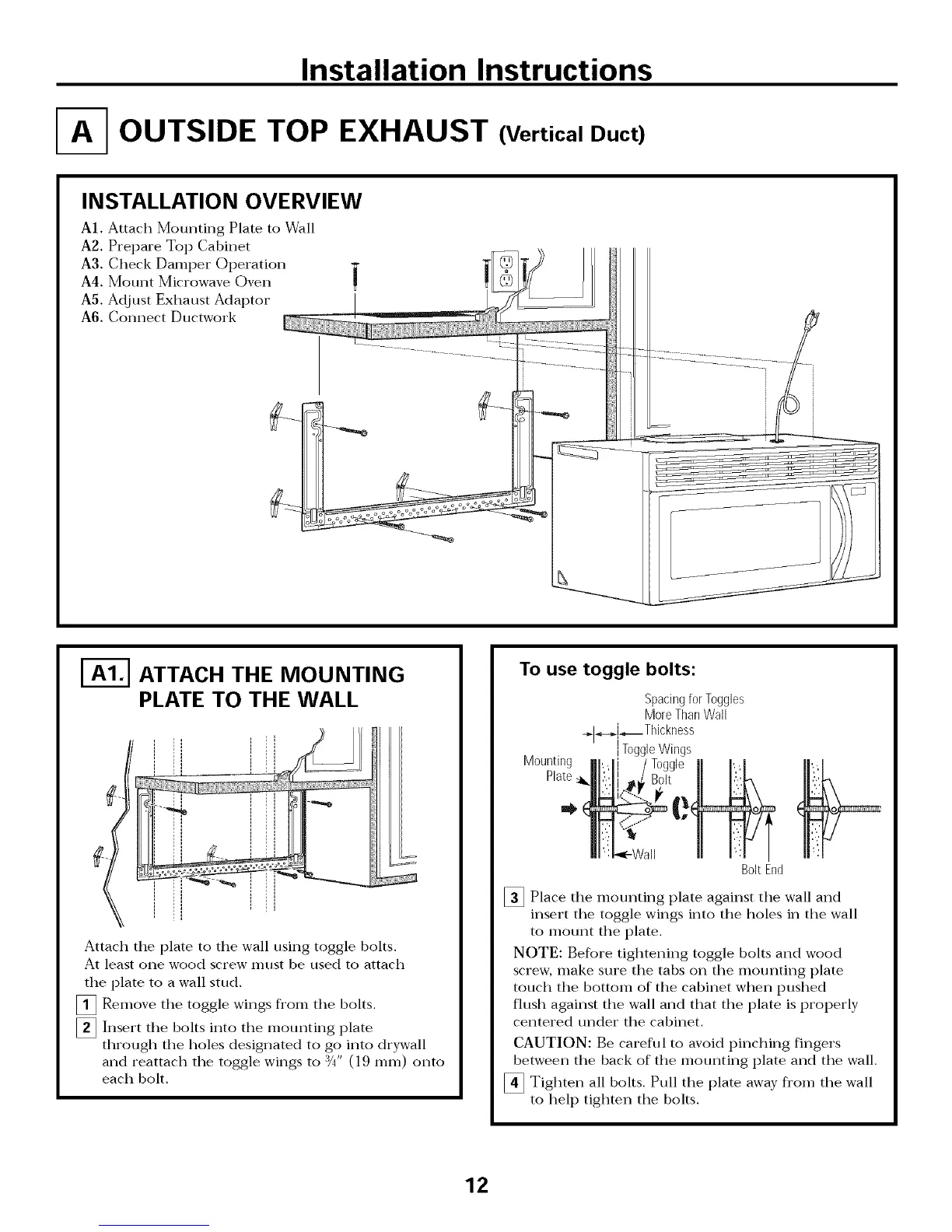

Installation Instructions
OUTSIDE TOP EXHAUST (Vertical Duct)
INSTALLATION OVERVIEW
AI. Attach Motmtirlg Plate to Wall
A2. Prepare Top Cabinet
A3. Check Damper Operation "[
A4. MouIrt Microwave Oven
!
A5. Adjust Exhaust Adaptor
A6. Connect Ductwork
I-_ ATTACH THE MOUNTING
PLATE TO THE WALL
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
[]Remove the fl'om the bolts.toggle wings
[]Insert the bolts into the mounting plate
through the holes designated to go into drywall
and reattach the toggle wings to 3/4" (19 ram) onto
each bolt.
To use toggle bolts:
Mounting
Plate,
Spacingfor Toggles
MoreThanWall
÷l_.j_--Thickness
I
iToggleWings
BoltEnd
[]Place the nlounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the tabs on the mounting plate
touch the bottom of the cabinet when pushed
flush against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers
between the back of the mounting plate and the wall.
[]Tighten all bolts. Pull the plate away from the wall
to hel t) tighten the bolts.
12
