Installation Instructions

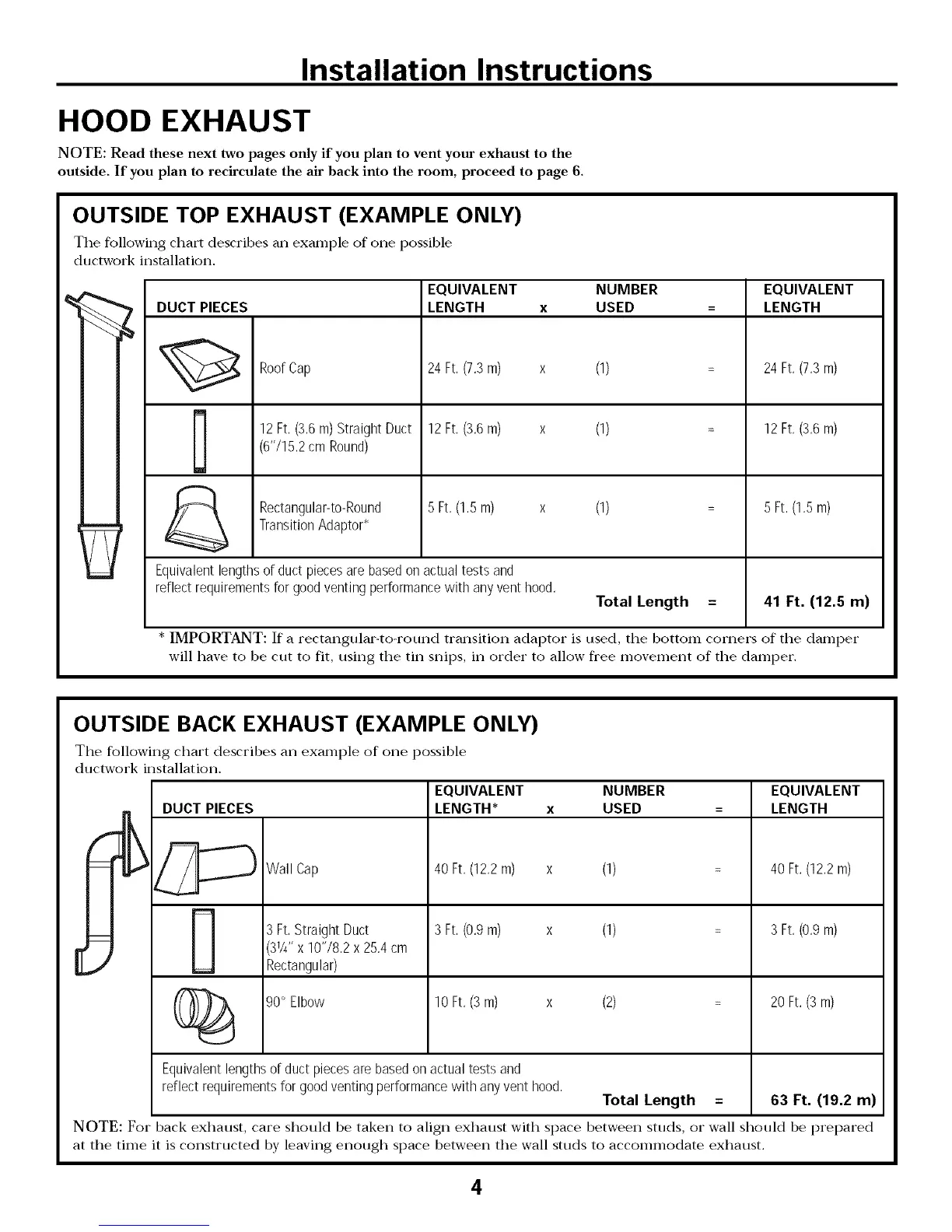

HOOD EXHAUST
NOTE: Read these next two pages only if you plan to vent your exhaust to the
outside. If you plan to recirculate the air back into the room, proceed to page 6.
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
The following chart describes an example of one possible
ductwork installation.
DUCT PIECES
_m
RoofCap
12Ft,(3,6m)StraightDuct
(6"/15,2cmRound)
EQUIVALENT NUMBER
LENGTH x USED
Rectangular-to-Round
TransitionAdaptor*
24Ft,(7,3m) x (1)
12Ft,(3,6m) x (1)
E
5 Ft, (1,5 m) x
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood,
(1)
Total Length =
EQUIVALENT
LENGTH
24Ft,(7,3m)
12Ft,(3,6m)
5Ft,(1,5m)
41 Ft. (12.5 m)
* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
The following chart describes an example of one possible
ductwork installation.
DUCT PIECES
%
EQUIVALENT NUMBER EQUIVALENT
LENGTH* x USED = LENGTH
Wall Cap 40 Ft, (12,2 m) x (1) 40 Ft, (12,2 m)
3 Ft,StraightDuct
31/4"x10'78,2x25,4cm
Rectangular)
90° Elbow
3 Ft,(0,9m)
10 Ft, (3 m)
(1)
(2)
3 Ft,(0,9m)
20Ft,(3m)
Equivalent lengths of duct pieces are based on actual tests and
reflect requirements for good venting performance with any vent hood,
Total Length = 63 Ft. (19.2 m)
NOTE: For back exhaust, care shouM be taken to align exhaust with space between studs, oi" wall shouM be prepared
at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.
