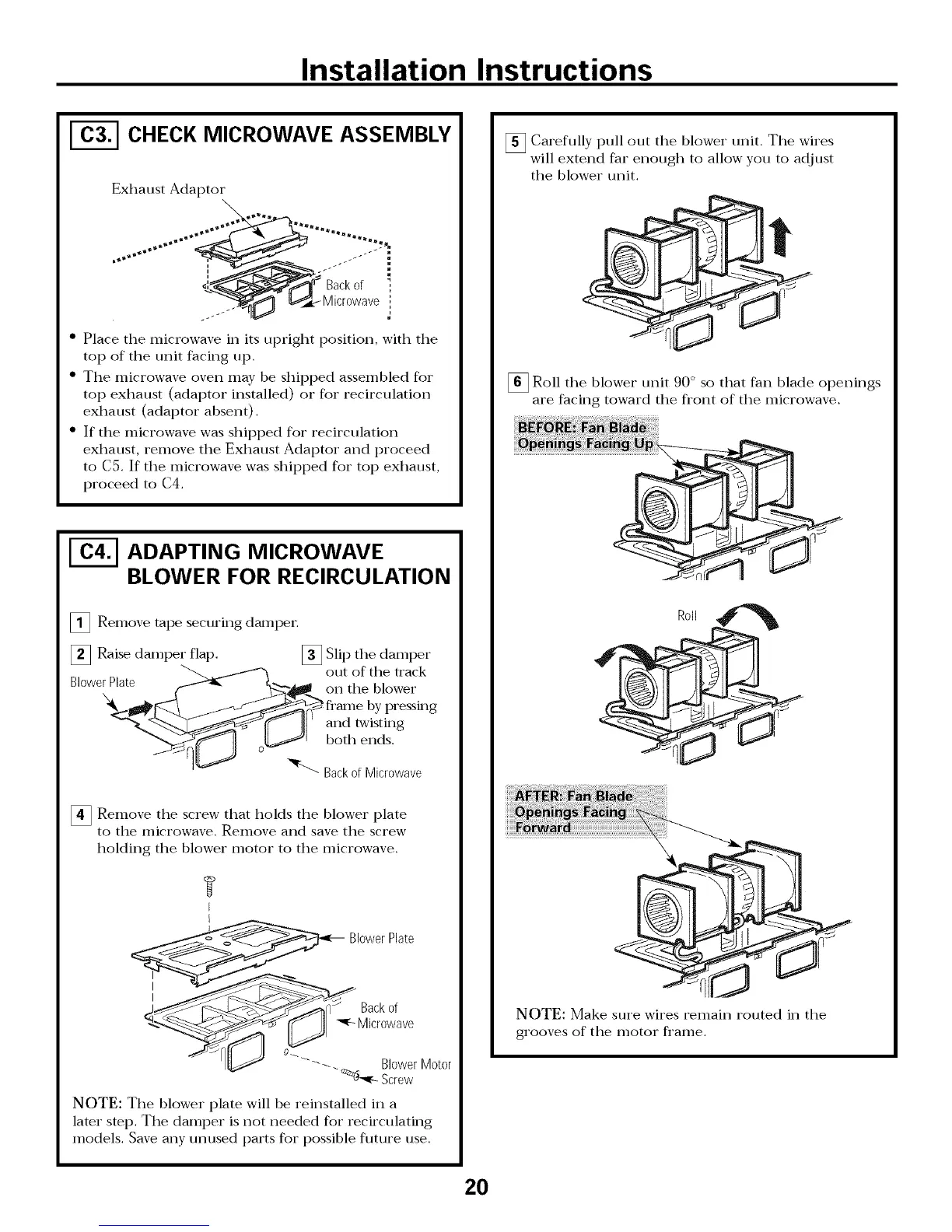

Installation Instructions
[-_ CHECK MICROWAVE ASSEMBLY
Exhaust Adaptor
J J" i
Baokor
-_v.-.-.-.-.-.-.-.-.-_--i_jl Microwave i
....... q_
• Place the microwave in its upright position, with the
top of the unit facing up.
• The microwave oven may be shipped assembled for
top exhaust (adaptor installed) or for recirculation
exhaust (adaptor absent).
• If the microwave was shipped for recirculation
exhaust, remove the Exhaust Adaptor and proceed
to C5. If the microwave was shipped for top exhaust,
proceed to C4.
I-_ ADAPTING MICROWAVE
BLOWER FOR RECIRCULATION
_ Remove tape securing dmnper.
[] Raise damper flap.
BlowerPlate
_Slip the damper
out of the track
on the blower
and twisting
both ends.
Backof Microwave
_ Remove the that holds the blower
plate
screw
to the microwave. Remove and save the screw
holding the blower motor to the microwave.
BlowerPlate
Backof
Microwave
NOTE: The blower plate will be reinstalled in a
later step. The damper is not needed for recirculating
models. Save any unused parts for possible future use.
[] Carefully pull out the blower unit. The wires
will extend fat" enough to allow you to adjust
the blower unit.
]Roll the blower unit 90 ° so that fan blade openings
are facing toward the fl'ont of the microwave.
R011
NOTE: Make sure wires remain routed in the
grooves of the motor fl'ame.
20
