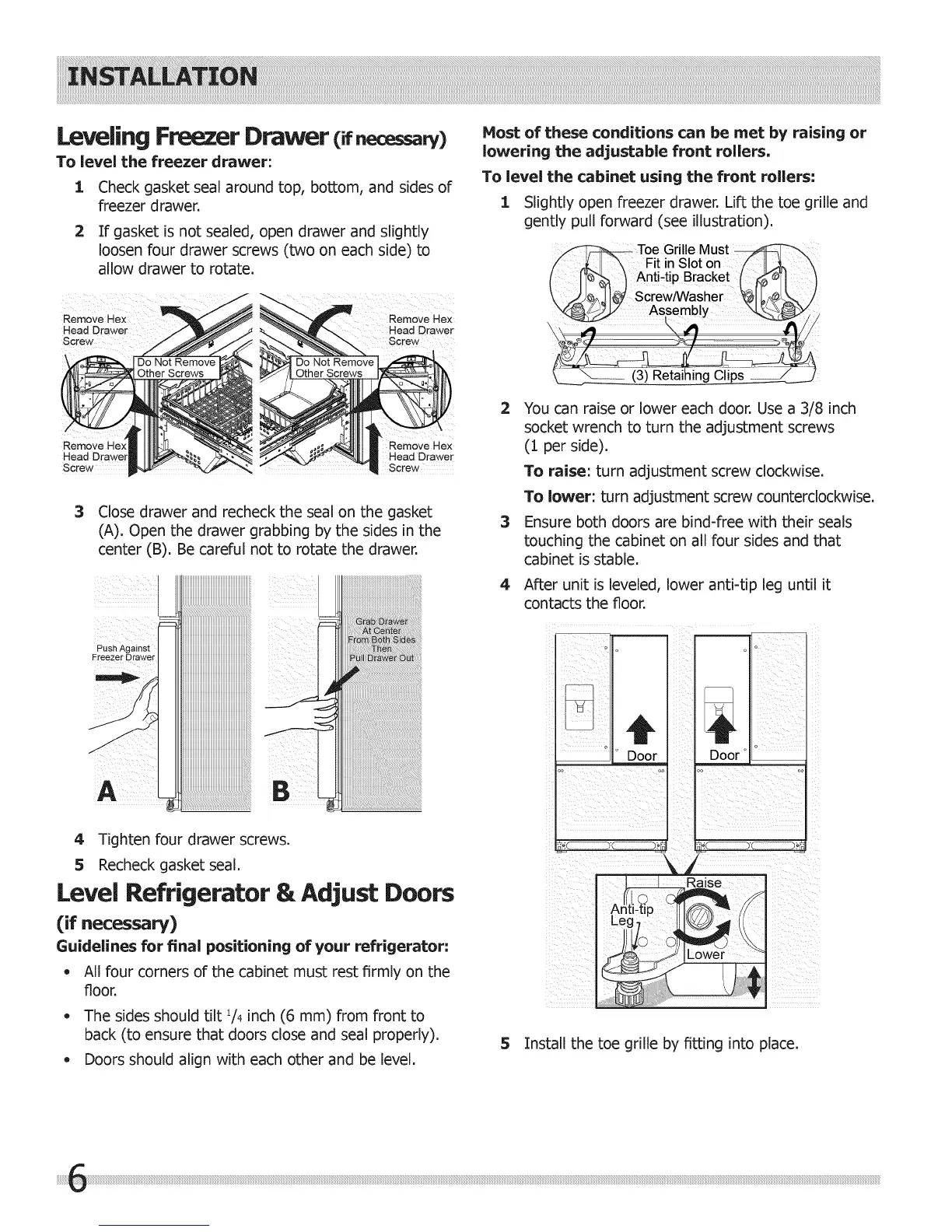

Leveling Freezer Drawer (if necessaw)
To level the freezer drawer:
1 Check gasket sea! around top, bottom, and sides of
freezer drawer.
2 If gasket is not sealed, open drawer and slightly
loosen four drawer screws (two on each side) to
allow drawer to rotate.
Head Drawer
Screw
Head Drawel
Screw
Remove Hex
Head Drawer
Screw
Remove Hex
Head Drawer
Screw
3 Close drawer and recheck the seal on the gasket
(A). Open the drawer grabbing by the sides in the
center (B). Be careful not to rotate the drawer.
PushAgainst
4 Tighten four drawer screws.
5 Recheck gasket seal.
Level Refrigerator & Adjust Doors
(if necessary)
Guidelines for final positioning of your refrigerator:
* All four corners of the cabinet must rest firmly on the
floor.
* The sides should tilt 1/4 inch (6 mm) from front to
back (to ensure that doors close and seal properly).
* Doors should align with each other and be level.
Host of these conditions can be met by raising or
lowering the adjustable front rollers,
To level the cabinet using the front rollers:
1 Slightly open freezer drawer. Lift the toe grille and
gently pull forward (see illustration).
S _ Fit in Slot on
) Anti ,tip Bracket l_. _"1 )
\, _ Sore,W/WaSher _I_A_:_-_ /J
2 You can raise or lower each door. Use a 3/8 inch
socket wrench to turn the adjustment screws
(i per side).
To raise: turn adjustment screw clockwise.
To lower: turn adjustment screw counterclockwise.
3 Ensure both doors are bind-flee with their seals
touching the cabinet on all four sides and that
cabinet isstable.
4
After unit is leveled, lower anti-tip leg until it
contacts the floor.
o •
t1"
o
• Door
oo
\/
Leg
I
o o
Door °
oo
5 Install the toe grille by fitting into place.
