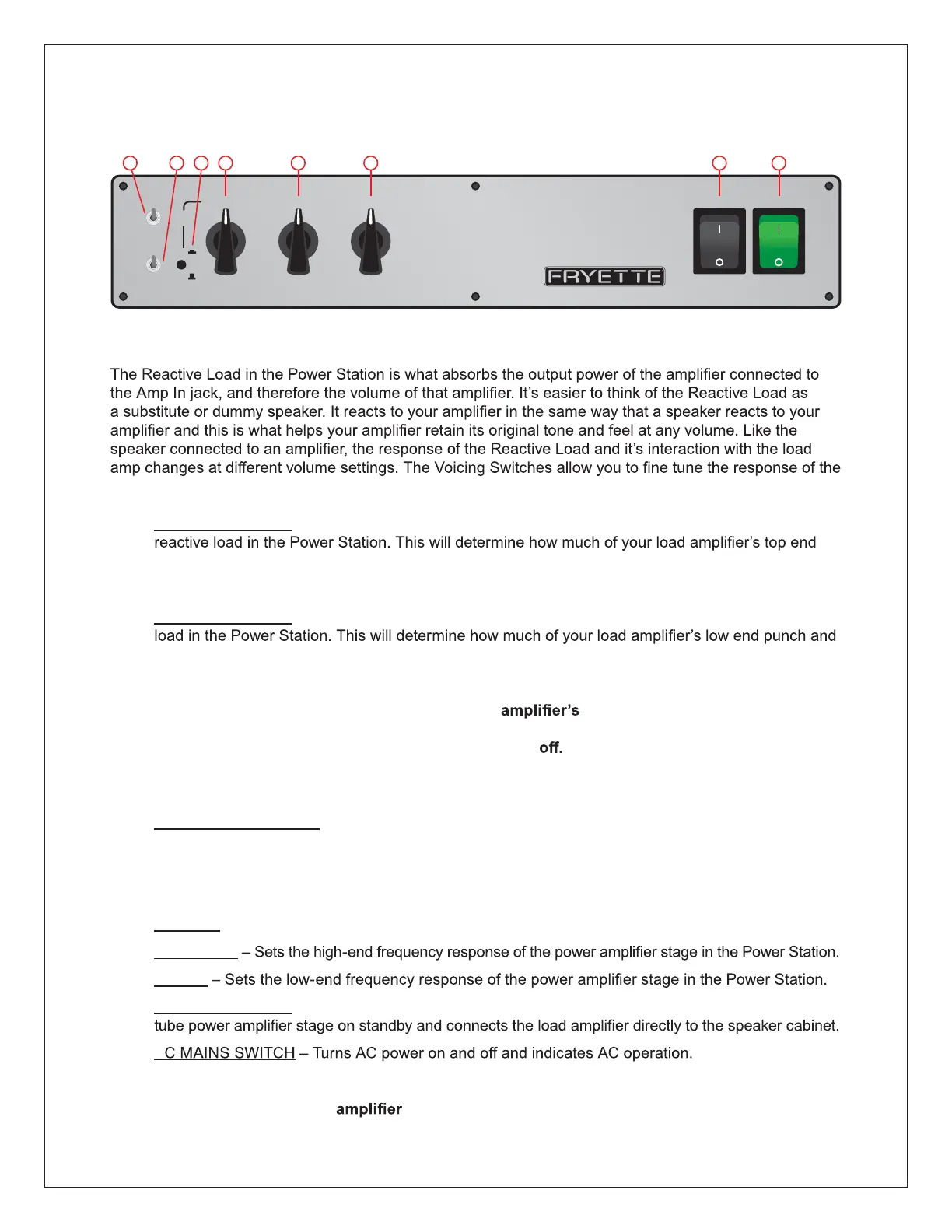

FRONT PANEL FUNCTIONS
Power Station
- Integrated Reactance Amplifier -
OPERATEVOLUME PRESENCE DEPTH
BYPASS POWER
ON
Variable Reactive Load + Vacuum Tube Power PS-2A
ED GE
FLAT
BRITE
DEEP
FLAT
WARM
®
INPUT
LEVEL
HI
LO
1 2 4 5 6 7 83
REACTIVE LOAD VOICING SWITCHES
Reactive Load at your preferred playing volumes.
1. EDGE/BRITE/FLAT – This switch sets the high frequency (Treble/Presence) response of the
presence and clarity will be retained. At high volume settings, this switch will normally be set FLAT
or possibly BRITE if you want a little more cut in your live or recorded mix.
2. DEEP/WARM/FLAT - This switch sets the low frequency (Bass/Resonance) response of the reactive
depth will be retained. At high volume settings, this switch will normally be set FLAT or possibly
WARM if you want a little more low-end projection in your live or recorded mix.
NOTE: These switches only operate when your load speaker output is connected to
the Power Station Amp In jack. They remain operational in normal attenuation mode as well as in
Silent Mode, whether the Power Station is powered on or
POWER AMPLIFIER CONTROL FUNCTIONS
3. INPUT LEVEL SWITCH – Sets usable range of the Volume control relative to strength of Line Input
or Amp In signal level. This is useful for setting your ideal playing volume whether you are attenua-
ting a high powered amp, boosting a low powered amp or connecting a preamp to the Line In. Set
the Level switch to HI for attenuating high powered amps or hot Line In signals or LO for boosting
small amps or when using low level Line In signals.
4. VOLUME – Sets the overall playing volume, or
sound coming out of your speaker cabinet.
5. PRESENCE
6. DEPTH
7. STANDBY/BYPASS – In Standby mode, this switch bypasses the Power Station, puts the internal
8. A
NOTE: The Standby/Bypass switch only allows sound to pass directly through to the speaker in
Bypass mode when your load speaker output is connected to the Amp In jack. When
using only the Line In jack, this switch turns the Power Station on Standby mode. In Standby
mode there will be no sound from the speaker.
