FS N5860 Series User Manual

N8560-32C
N5860-48SC/N8560-48BC/N8560-64C

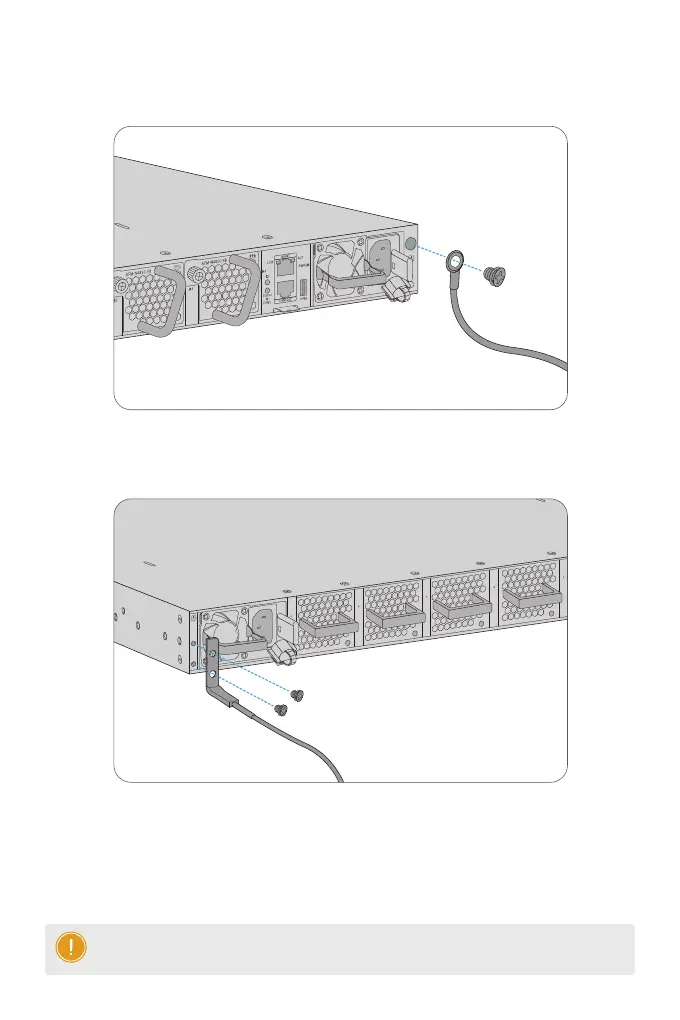

Grounding the Switch
1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the
switch is mounted.
2. Secure the grounding lug to the grounding point on the switch back panel with the washers and
screw.
PSU1 FAN1
FAN2
FAN3 FAN4
CAUTION: The earth connection must not be removed unless all supply connections have
been disconnected.
