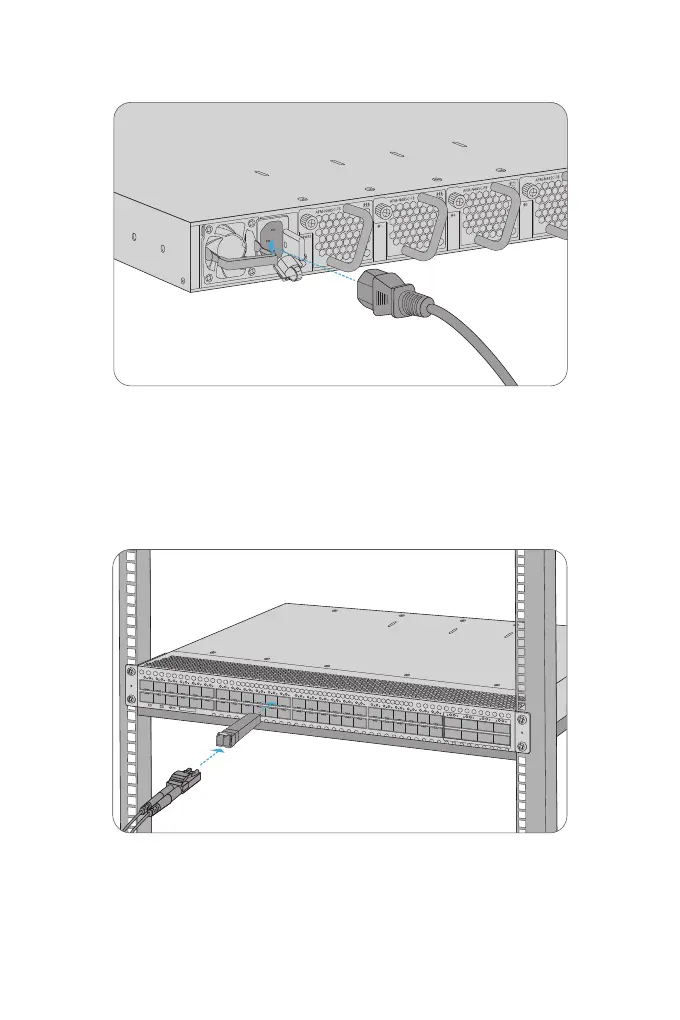

Connecting the Power
1. Plug the AC power cord into the power port on the back of the switch.
2. Connect the other end of the power cord to an AC power source.
Connecting the SFP+ Ports
First install SFP+ transceivers and then connect ber optic cables to the transceiver ports, or directly
connect DAC cables to the SFP+ slots.
