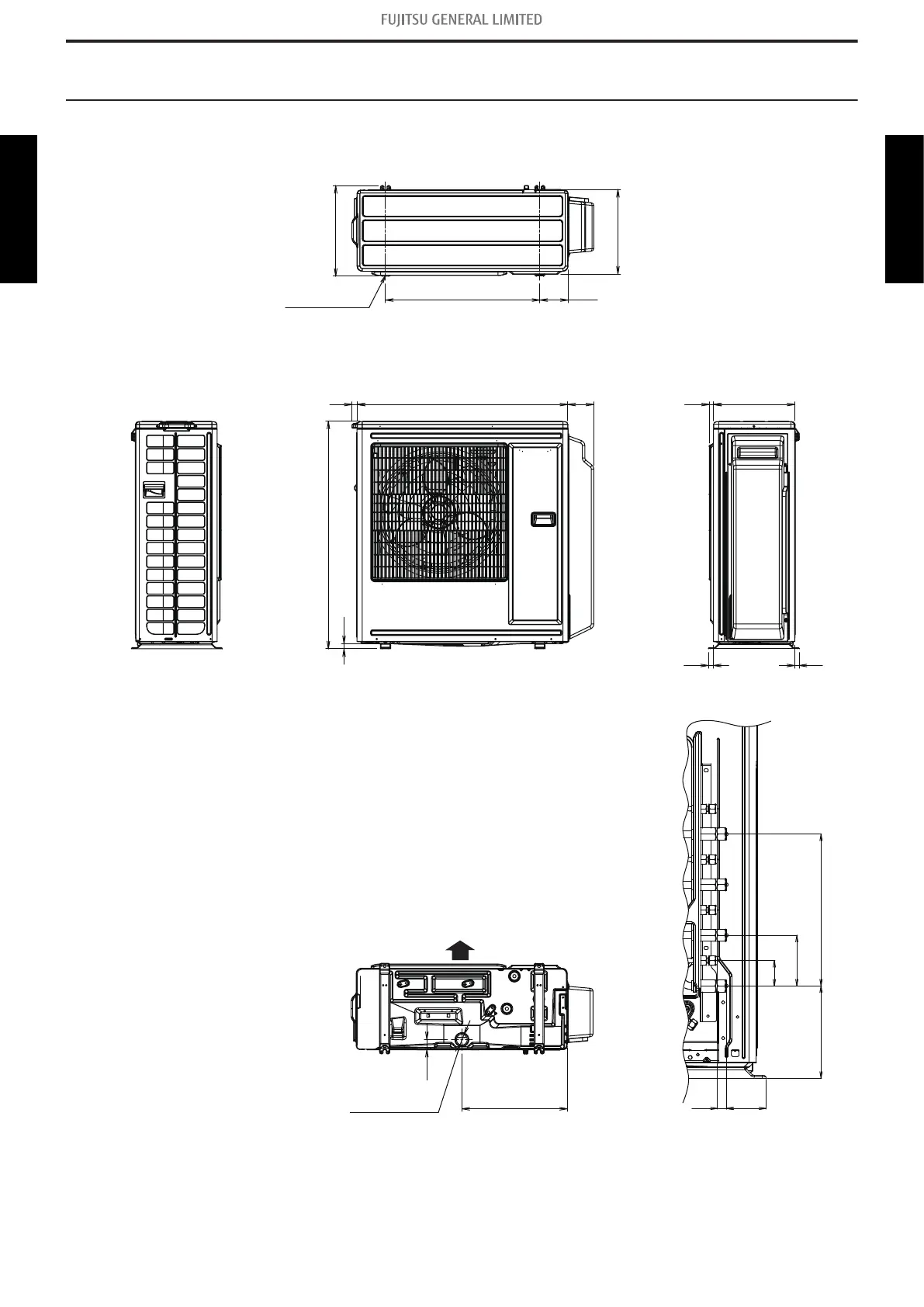

2. Dimensions
2-1. Model: AOYG30KBTA4
Unit: mm
Side view (Valve part)
600
353 330
109
4- M1 0 hole
820
19
99
884
20
20
18
16
315
410
37
Drain port Ø42
Side view
Side view
Front view
Top view
Pitch of bolts for installation
Bottom view
Pitch of bolts for installation
Airflow
17
71
168
46
92
92 ×3=276
- 384 -
2-1. Model: AOYG30KBTA4
2. Dimensions
