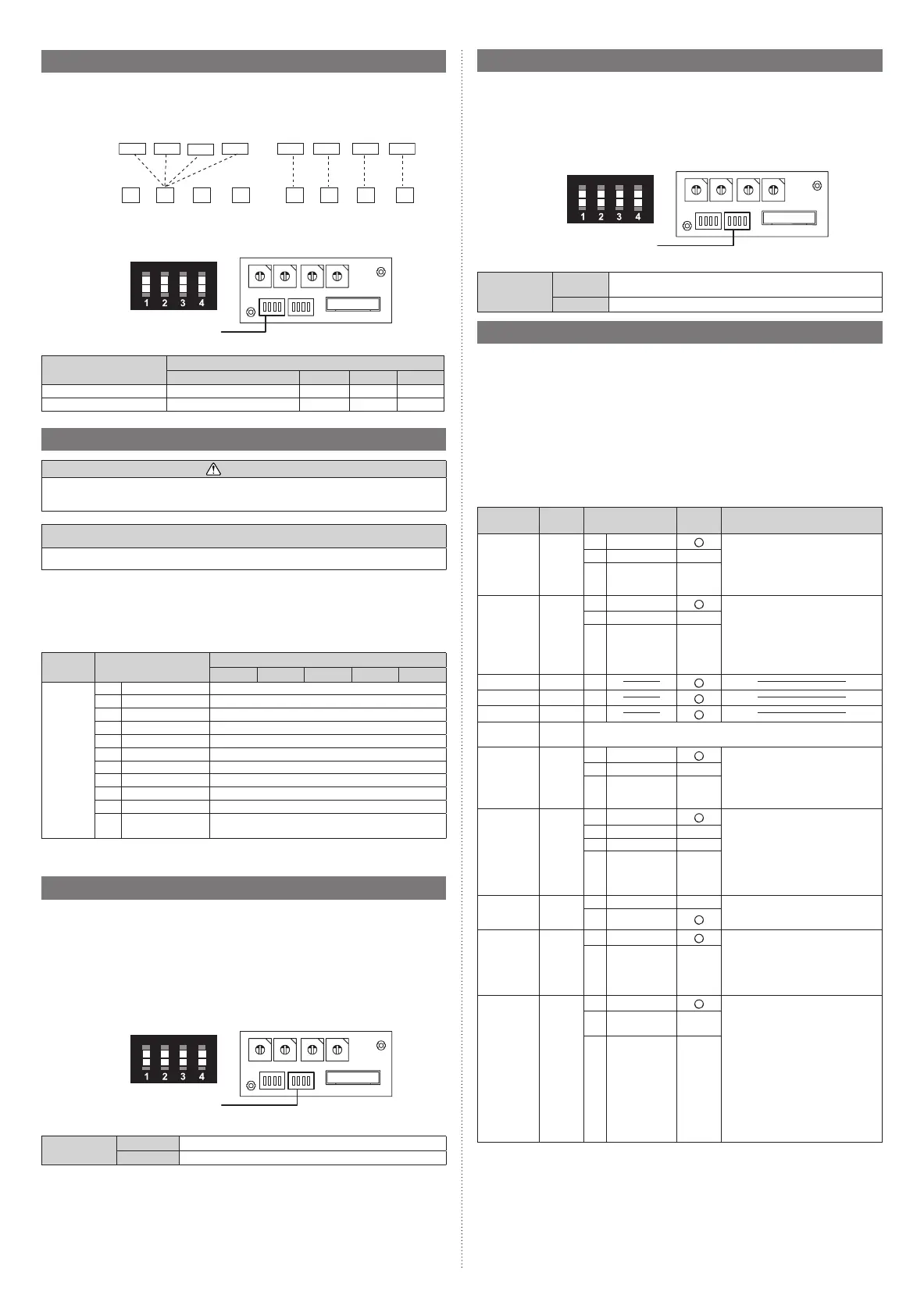

7.2. Custom code setting
Selecting the custom code prevents the indoor unit mix-up.
(Up to 4 codes can be set.)
Perform the setting for both the indoor unit and the remote controller.
A B C D
Indoor
unit
Remote
controller
Confusion
Code change
Custom code setting for indoor unit
Set the DIP switch SET 3 SW1, SW2 referring to the Table B.
IU AD REF AD RC AD
×10 ×1 ×10 ×1
SET3 SET4
4
3
2
1
Dip switch “SET 3”
ON
OFF
Table B
Custom code
A (Factory setting) B C D
DIP switch SET3 SW1 OFF ON OFF ON
DIP switch SET3 SW2 OFF OFF ON ON
7.3. Static pressure mode
CAUTION
If the applicable static pressure does not match the static pressure mode, the static pres-
sure mode may be changed to another mode manually.
Recommended range of external static pressure
ARUL7/9/12/14/18: 0 and 0.36 in WG (0 and 90 Pa)
It is necessary to set up a static pressure mode for each usage of static pressure.
Static pressure can be set at site.
Relation between set values and static pressure are as the following table.
• FUNCTION SETTING can be performed with the wired or wireless remote controller.
(The remote controller is optional equipment)
• Refer to the wired or wireless remote controller manual for detailed setting information.
Function
Number
Setting Number
Setting Static Pressure
ARUL7 ARUL9 ARUL12 ARUL14 ARUL18
26
00 SP mode 00 0 in WG (0 Pa)
01 SP mode 01 0.04 in WG (10 Pa)
02 SP mode 02 0.08 in WG (20 Pa)
03 SP mode 03 0.12 in WG (30 Pa)
04 SP mode 04 0.16 in WG (40 Pa)
05 SP mode 05 0.20 in WG (50 Pa)
06 SP mode 06 0.24 in WG (60 Pa)
07 SP mode 07 0.28 in WG (70 Pa)
08 SP mode 08 0.32 in WG (80 Pa)
09 SP mode 09 0.36 in WG (90 Pa)
31
Normal SP
(Factory setting)
0.10 in WG (25 Pa)
* Please refer to FAN PERFORMANCE CURVE within Design & Technical Data for the
features of each setting.
7.4. Switching of drainage function
If contained drain pump is not used, set the drainage function to “Invalid” in the drainage
function switching.
• If contained drain pump is not use:
When used under “WALL MOUNTED TYPE/FLOOR STANDING CONCEALED TYPE”.
When used in natural drainage under “CEILING CONCEALED TYPE”.
• Installation method
Set the DIP switch SET 4 SW1, SW1 referring to the Table C.
×10 ×1 ×10 ×1
SET3 SET4
4
3
2
1
Dip switch “SET 4”
ON
OFF
Table C
DIP switch
SET 4 SW1
OFF
Drainage function “Valid” (Factory setting)
ON Drainage function “Invalid”
7.5. Switching of airflow direction louver function
When auto louver grille (optional parts) is attached, set the airflow direction louver function
“Valid”.
The airflow direction louver of auto louver grille can be operated by the remote controller
while the airflow direction louver function is valid.
• Installation method
Set the DIP switch SET 4 SW2, SW2 referring to the Table D.
IU AD REF AD RC AD
×10 ×1 ×10 ×1
SET3 SET4
4
3
2
1
Dip switch “SET 4”
ON
OFF
Table D
DIP switch
SET 4 SW2
OFF
Airflow direction louver function “Invalid”
(Factory setting)
ON Airflow direction louver function “Valid”
7.6. Function setting
• FUNCTION SETTING can be performed with the wired or wireless remote controller.
(The remote controller is optional equipment)
• Refer to the wired or wireless remote controller manual for detailed setting information.
• Refer to “7.1. Setting the address” for indoor unit address and refrigerant circuit address
settings.
• Turn the power of the indoor unit ON before starting the setting.
* Turning on the power to the indoor units initializes EEV, so make sure the piping air tight
test and vacuuming have been conducted before turning on the power.
* Also check again to make sure no wiring mistakes were made before turning on the
power.
Function details
Function
Function
number
Setting number
Default
Details
Filter indica-
tor interval
11
00 Standard
Adjust the filter cleaning interval
notification. If the notification is too
early, change to setting 01. If the
notification is too late, change to
setting 02.
01 Longer
02 Shorter
Filter indica-
tor action
13
00 Enable
Enable or disable the filter indica-
tor. Setting 02 is for use with a
central remote controller.
01 Disable
02
Display only
on central
remote con-
troller
(Forbidden) 20 00
(Forbidden) 23 00
(Forbidden) 24 00
Static pres-
sure
26
Refer to 7.3. Static pressure mode
Cool air
temperature
trigger
30
00 Standard
Adjust the cool air trigger
temperature. To lower the trigger
temperature, use setting 01. To
raise the trigger temperature, use
setting 02.
01 Adjust (1)
02 Adjust (2)
Heat air
temperature
trigger
31
00 Standard
Adjust the heat air trigger
temperature. To lower the trigger
temperature by 6 degrees C, use
setting 01. To lower the trigger
temperature by 4 degrees C, use
setting 02. To raise the trigger
temperature, use setting 03.
01 Adjust (1)
02 Adjust (2)
03 Adjust (3)
Auto restart
(*1)
40
00 Enable
Enable or disable automatic sys-
tem restart after a power outage.
01 Disable
Cool Air
Prevention
43
00 Super low
Restrain the cold airflow with mak-
ing the airflow lower when starting
heating operation. To correspond
to the ventilation, set to 01.
01
Follow the
setting on
the remote
controller
External
control
46
00 Start/Stop
Allow an external controller to start
or stop the system, or to perform
an emergency stop.
* If an emergency stop is
performed from an external
controller, all refrigerant systems
will be disabled.
* If forced stop is set, indoor unit
stops by the input to the external
input terminals, and Start/
Stop by a remote controller is
restricted.
01
Emergency
stop
02 Forced stop
