Models :
AOU18RLX
AOU24RLX
POWER SUPPLY PCB ASSY
K04BA-0500HUE-P0
CONTROLLER PCB ASSY
AOU18RLX : K04AW-0503HUE-C1
AOU24RLX : K04AW-0502HUE-C1
INVERTER ASSEMBLY
AOU18RLX : EZ-005GHUE
AOU24RLX : EZ-005FHUE
2005.12.23 15

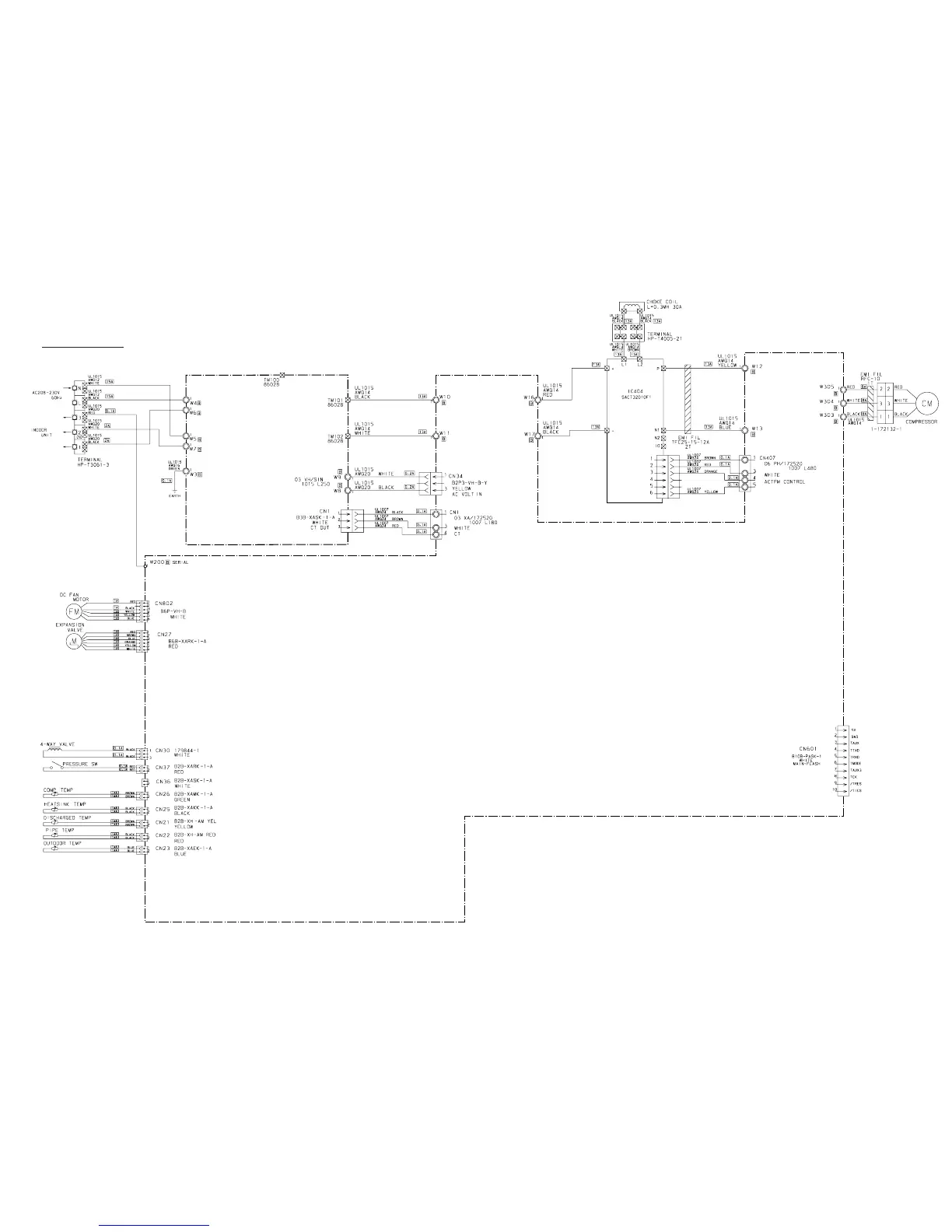

OUTDOOR PCB CIRCUIT DIAGRAM
