Evaporator

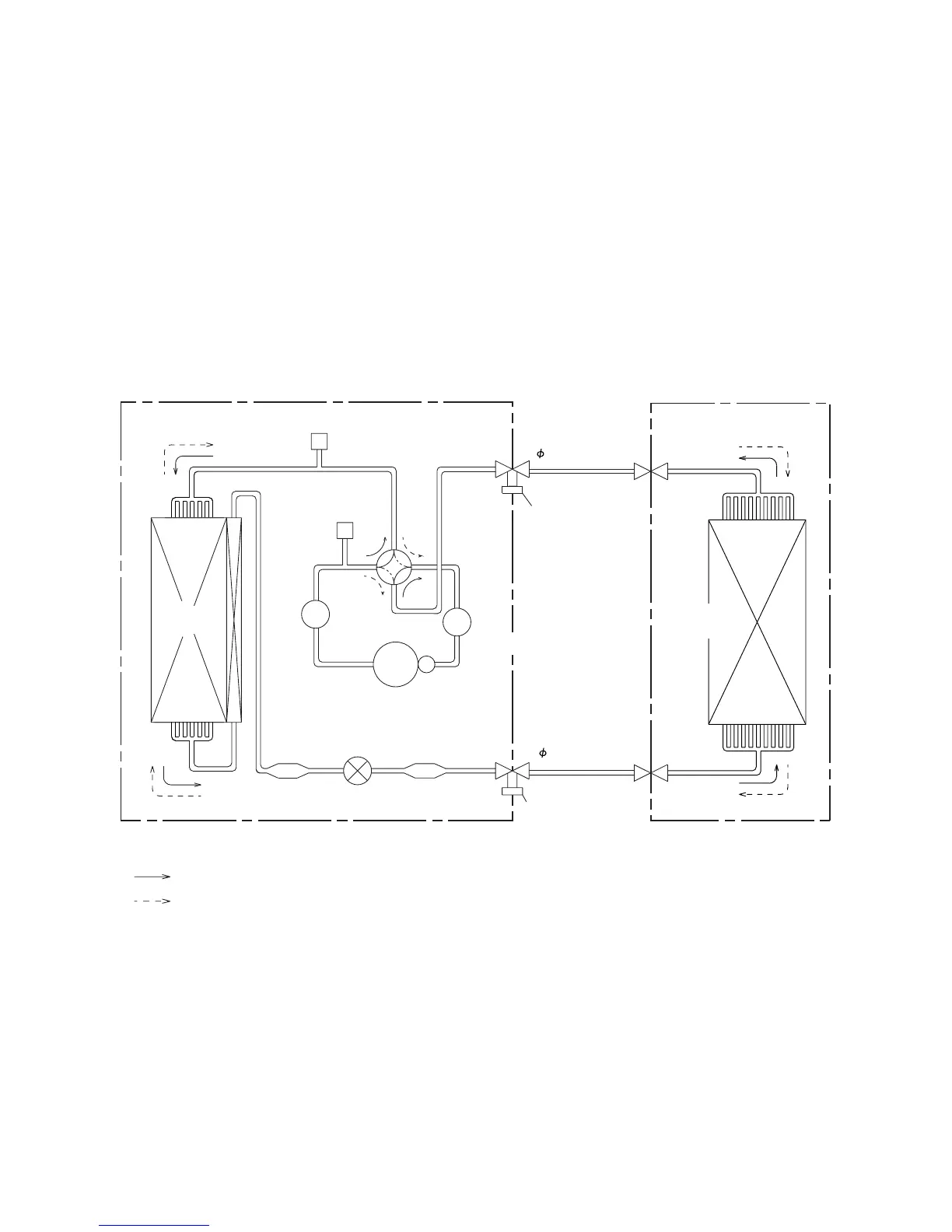

REFRIGERANT SYSTEM DIAGRAM
OUTDOOR UNIT
Pressure
Check Valve
Condenser
4-way
Valve
High Pressure
Switch
Accumulator
Muffler
Compressor
Expansion
Valve
Refrigerant Pipe
6.35mm (1/4")
Charging Valve
Charging
Valve
Refrigerant Pipe
12.7mm (1/2")
INDOOR UNIT
Strainer
Strainer
: COOL
: HEAT
Models :
AUU18RCLX / AOU18RLX
2005.12.21 7
