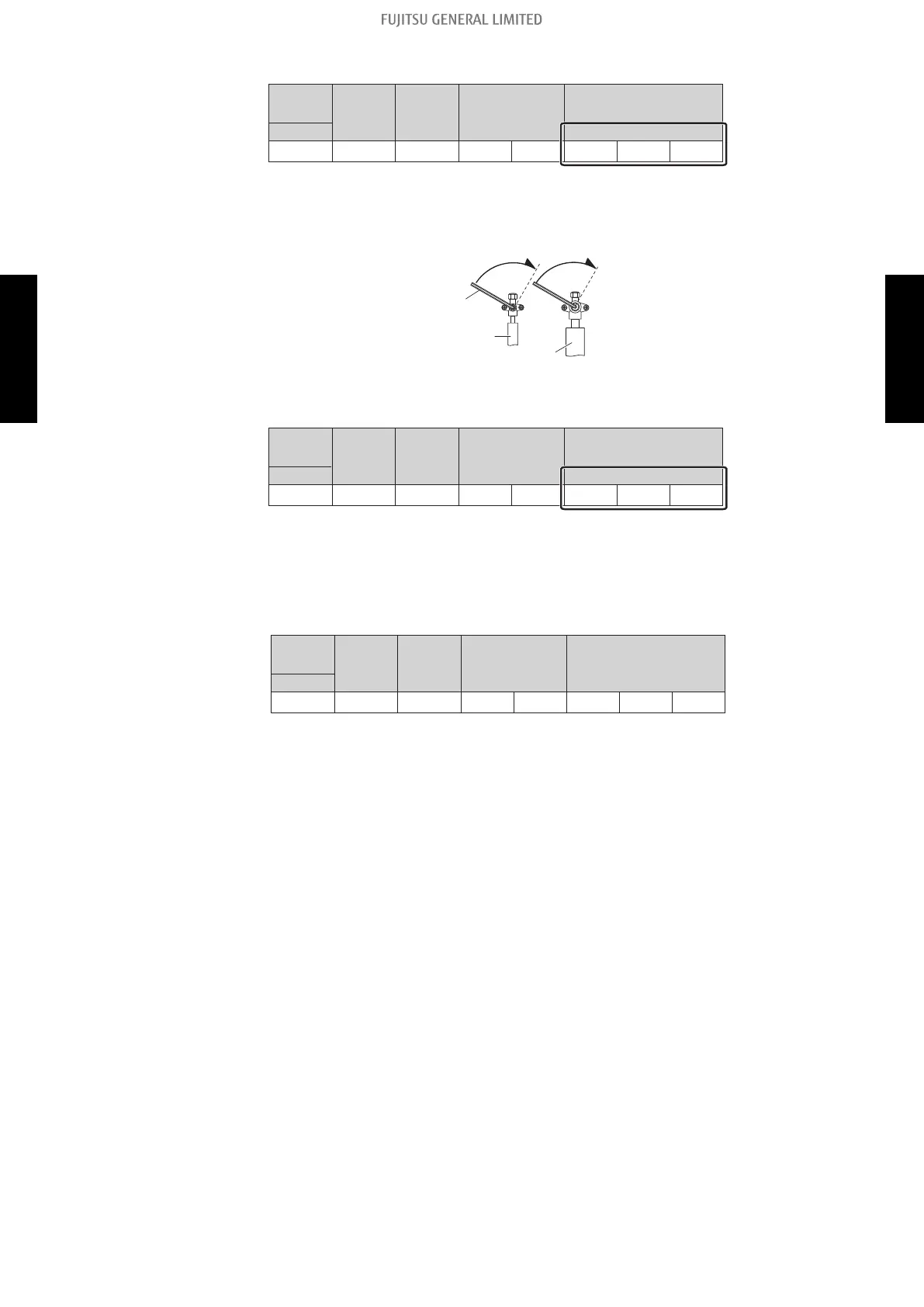

5. When LED display changes as shown in the below figure, close the 3-way valve on the gas
pipe side tightly.
POWER
ERROR
PUMP
DOWN
LOW
NOISE
PEAK
CUT
MODE (L1) (L2) (L3) (L4) (L5) (L6)
● ○ ● ○ ○ ○ ○ ●
NOTE:
If the valve on the gas pipe side is not closed, refrigerant may flow into the piping
after the compressor stops.
Step (5)
Closing direction
Step (4)
Closing direction
Hexagon wrench
Liquid pipe
Gas pipe
6. LED display changes after 1 minute as shown in the figure below.
The LED will light as follows.
POWER
ERROR
PUMP
DOWN
LOW
NOISE
PEAK
CUT
MODE (L1) (L2) (L3) (L4) (L5) (L6)
● ○ ● ○ ○ ○ ○ ○
Fans and compressor stop automatically.
NOTE: If the pump down is successfully completed (the above LED display is shown), the
outdoor unit remains stopped until the power is turned off.
7. Turn the power off.
POWER
ERROR
PUMP
DOWN
LOW
NOISE
PEAK
CUT
MODE (L1) (L2) (L3) (L4) (L5) (L6)
○ ○ ○ ○ ○ ○ ○ ○
Pump down is completed.
NOTES:
• To stop pump down, press the [PUMP DOWN] button again.
• To start the pump down again after the compressor is automatically stopped due to an error,
disconnect the power supply and open the 3-way valves. Wait 3 minutes, reconnect the power
supply and start the pump down again.
• When starting the operation after completion of the pump down, disconnect the power supply,
and then open the 3-way valves. Wait 3 minutes, reconnect the power supply and perform a test
run in the “COOL” operation mode.
• If an error occurs, recover the refrigerant from service port.
