UTY-RNNYM

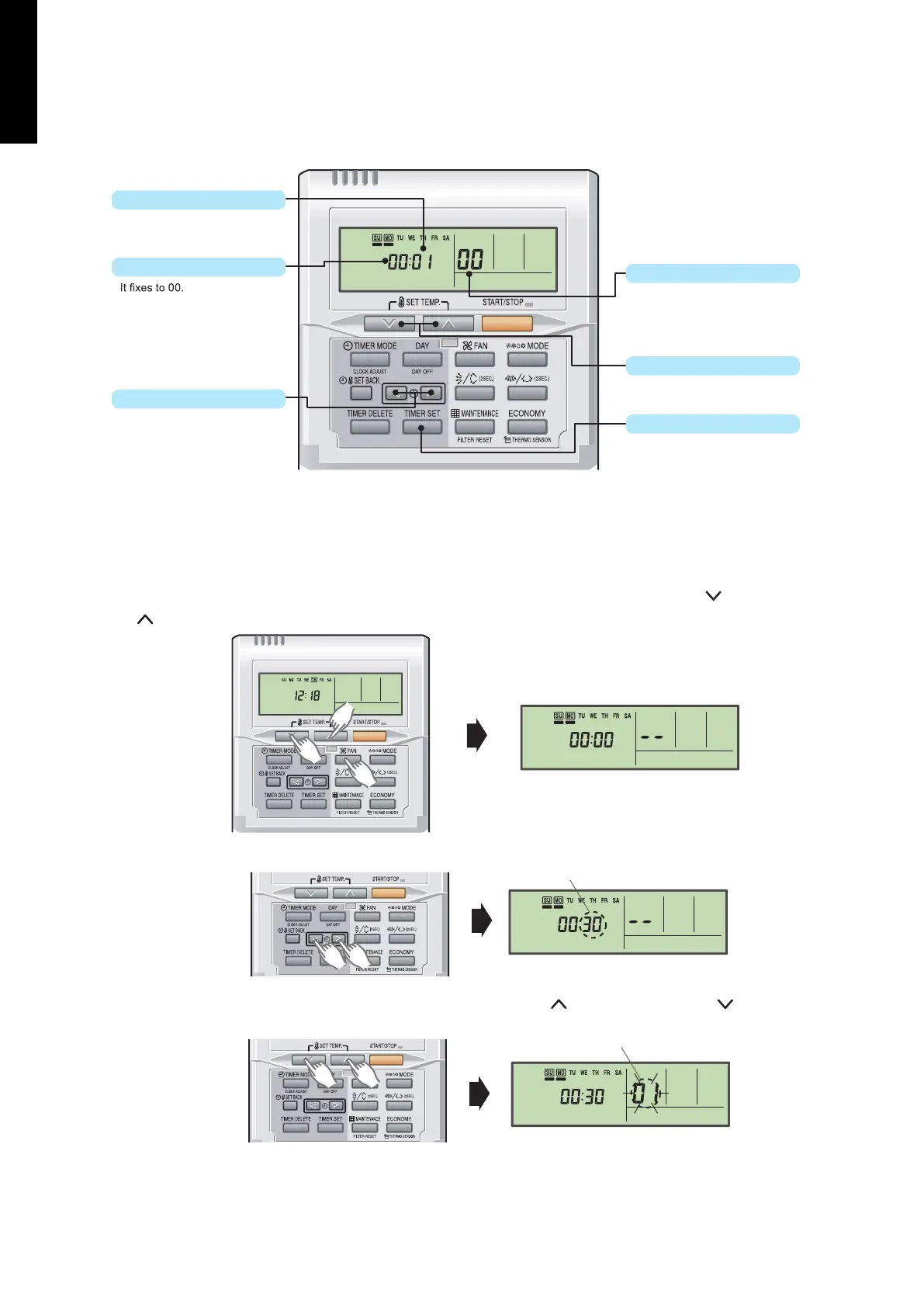

 Button name and function

During address setting mode, indoor unit reject the any operation command from remote con-

troller.

Function number

Refer to Function details

Remote controller address

SET TIME “<” and “>” button

Switches the function number.

Setting number

Refer to Function details

SET TEMP. “V” and “

” button

Switches the setting number.

TIMER SET button

Transmits function setting

 Function setting procedure

1. Connect the power supply of the outdoor unit.

2. Switch to the function setting mode.

To enter the function setting mode, hold down the 3 buttons of SET TEMP. , SET TEMP.

, and FAN at the same time for 5 seconds or longer.

3. Select the function number by pressing the SET TIME < or the SET TIME > button.

4. Select the setting number by pressing the SET TEMP. or the SET TEMP. button.

The display flashes during setting number selection.
