3. Installation space
3-1. Model: AOYG36LBLA5
¢ Space requirement

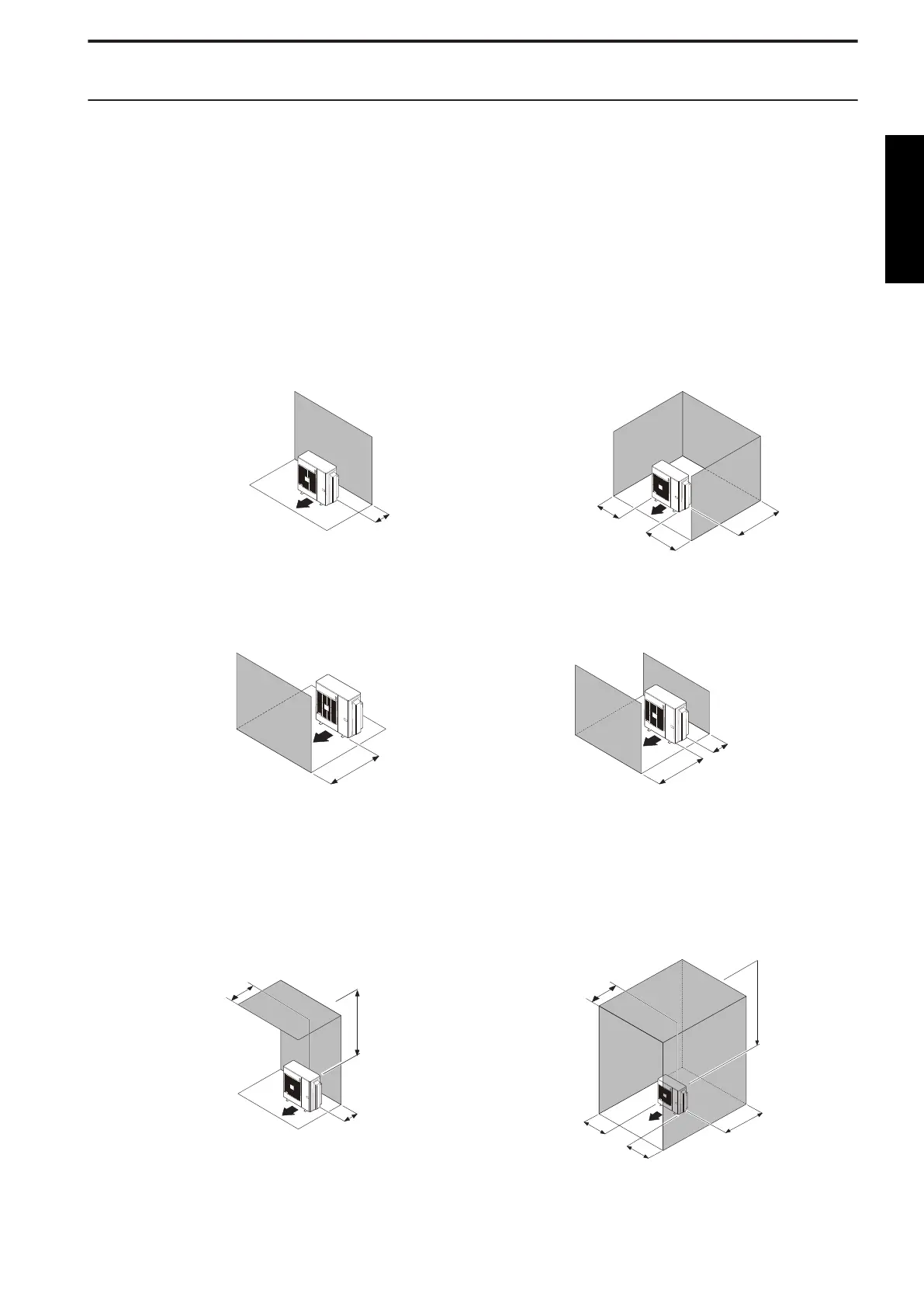

Provide sufficient installation space for product safety.
 Single outdoor unit installation
• When the upper space is open:
Unit: mm
When there are obstacles at the rear only. When there are obstacles at the rear and
sides.
150
or more
200
or more
250
or more
300
or more
When there are obstacles at the front only. When there are obstacles at the front and
rear.
1,000
or more
1,000 or more
150 or more
• When there is an obstruction in the upper space:
Unit: mm
When there are obstacles at the rear
and above.
When there are obstacles at the rear, sides,
and above.
Max. 500
300
or more
1,000
or more
1,000
or more
500
or more
200
or more
250
or more
Max. 500
- 277 -
OUTDOOR UNIT AOYG36LBLA5
