15. Function settings
To adjust the functions of this product according to the installation environment, various types of
function settings are available.
NOTE: Incorrect settings can cause a product malfunction.
15-1. Mini duct, Slim duct types indoor unit (setting by DIP
switch)
By using some components on the PCB, you can change the function settings.
Related components on the PCB and the applicable settings:
Component Setting content
DIP switch
SW100
1
Remote controller address setting
2
3
4
SW101
1 Drainage function setting
2 Auto louver grille setting
3 Fan delay setting

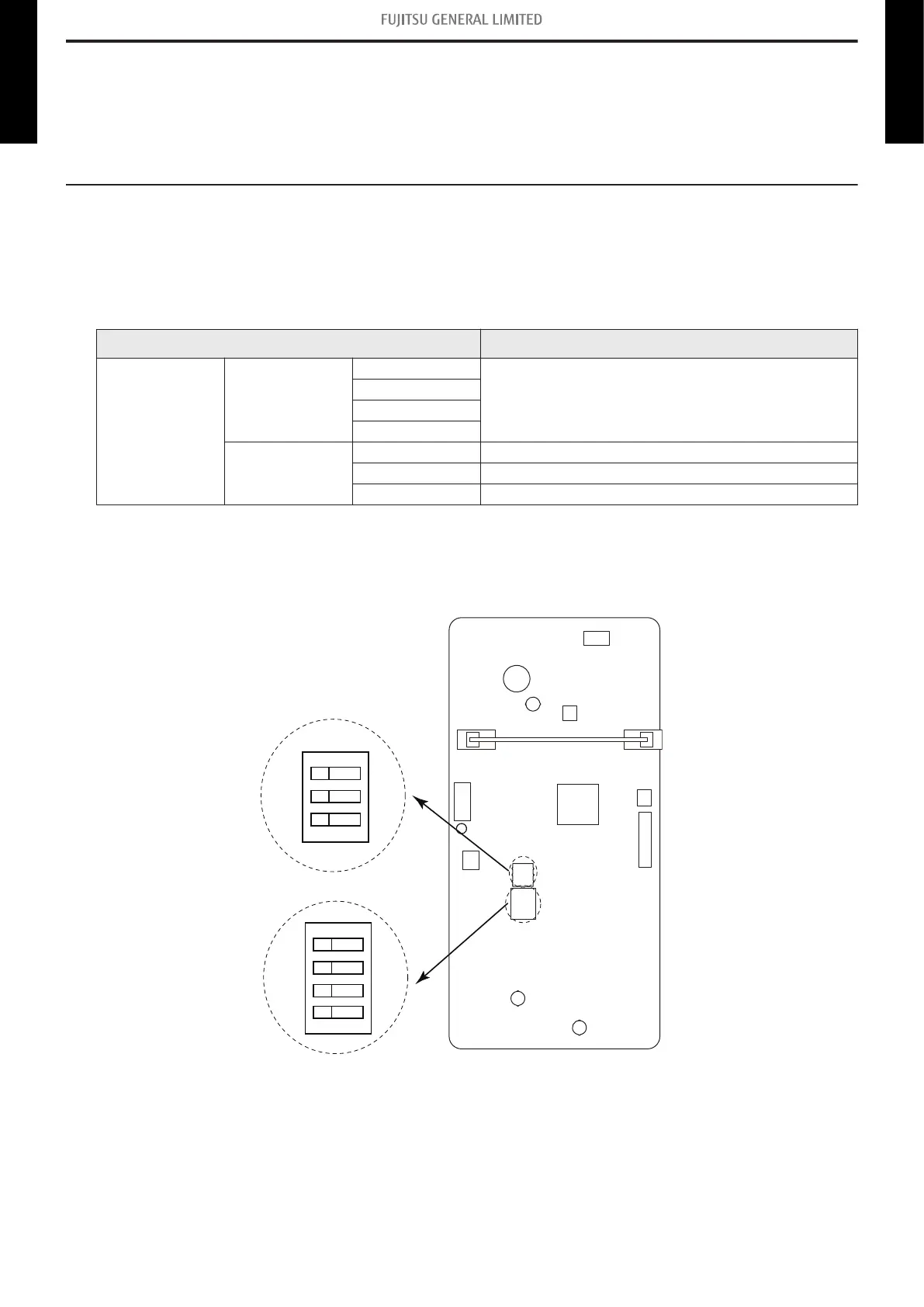

¢ Component location
Components on the indoor unit main PCB used for the function settings are located as shown in
the following figure.
SW100
1
2
3
4
SW101
1
2
3
- 297 -
15-1. Mini duct, Slim duct types indoor unit (setting by DIP switch)
15. Function settings
4-5 UNIT MULTI-SPLIT TYPE 4-5 UNIT MULTI-SPLIT TYPE
