Fujitsu ASYG14KMTB Design & Technical Manual

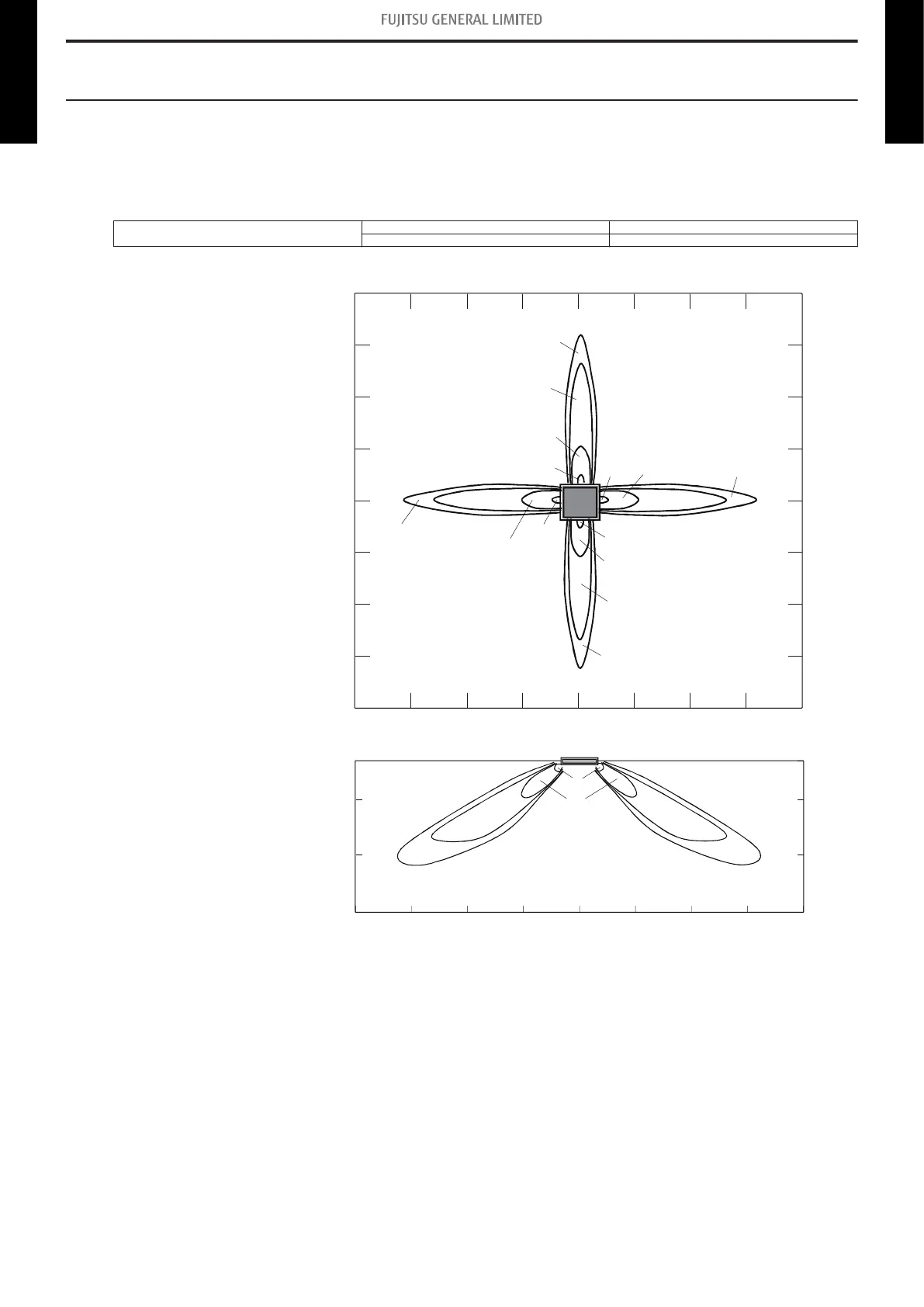

6. Air velocity and temperature distributions
6-1. Compact cassette type
¢
Models: AUXG07–09KVLA
• Air velocity distribution
Measuring conditions
Fan speed Operation mode
HIGH FAN
Top view
Horizontal louver: Up
2.0
2.0
2.0
2.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.25
0.25
0.25
0.25
Unit : m/s
4
3
2
1
0
1
2
3
4
4 3
2 1 0
1
2
3 4
(m)
(m)
Side view
Horizontal louver: Up
2.0
1.0
0.5 0.5
0.25 0.25
4 3
2
1
0
1
2
3 4
(m)
0
1
2
2.7
(m)
Unit : m/s
- 84 -
6-1. Compact cassette type
6. Air velocity and temperature distributions
