5. CONTROL SYSTEM

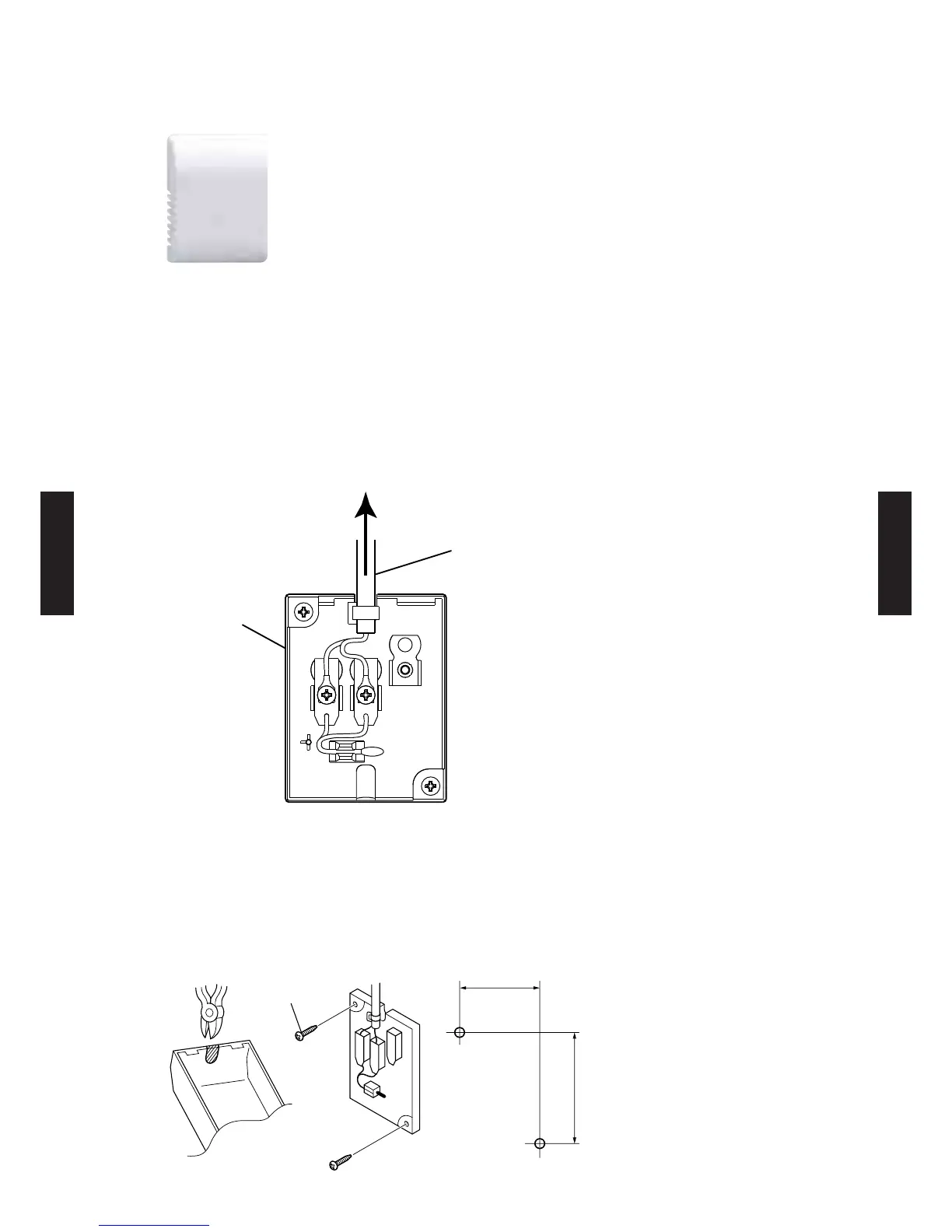

REMOTE SENSOR UNIT2-6.
MODEL : UTY - XSZX

FEATURES

New amenity space can be offered by installing the Remote sensor.
ELECTRICAL WIRING

Remove the screws from the remote sensor, and remove the cover.îž”
Connect the cable to the remote sensor as shown below.îž”
Ensure that the wires do not contact each other.îž”
Remote sensor
To indoor unit
Cable
INSTALLATION

When the cable is attached to the wall

Remove the material covering the wiring penetration (thin material) in the cover of the sensor îž”
unit with a pair of cutters. The cable passes through this hole.
Now the remote sensor on the wall using the screws.îž”
40
55
Screw
(M4 x 16mm)
[Unit : mm]
Mounting hole dimensions
- (05 - 51) -
CONTROL
SYSTEM
CONTROL
SYSTEM
