12-2. Mini duct type, Slim duct type, and Medium static
pressure duct type (ARXG22KMLB)

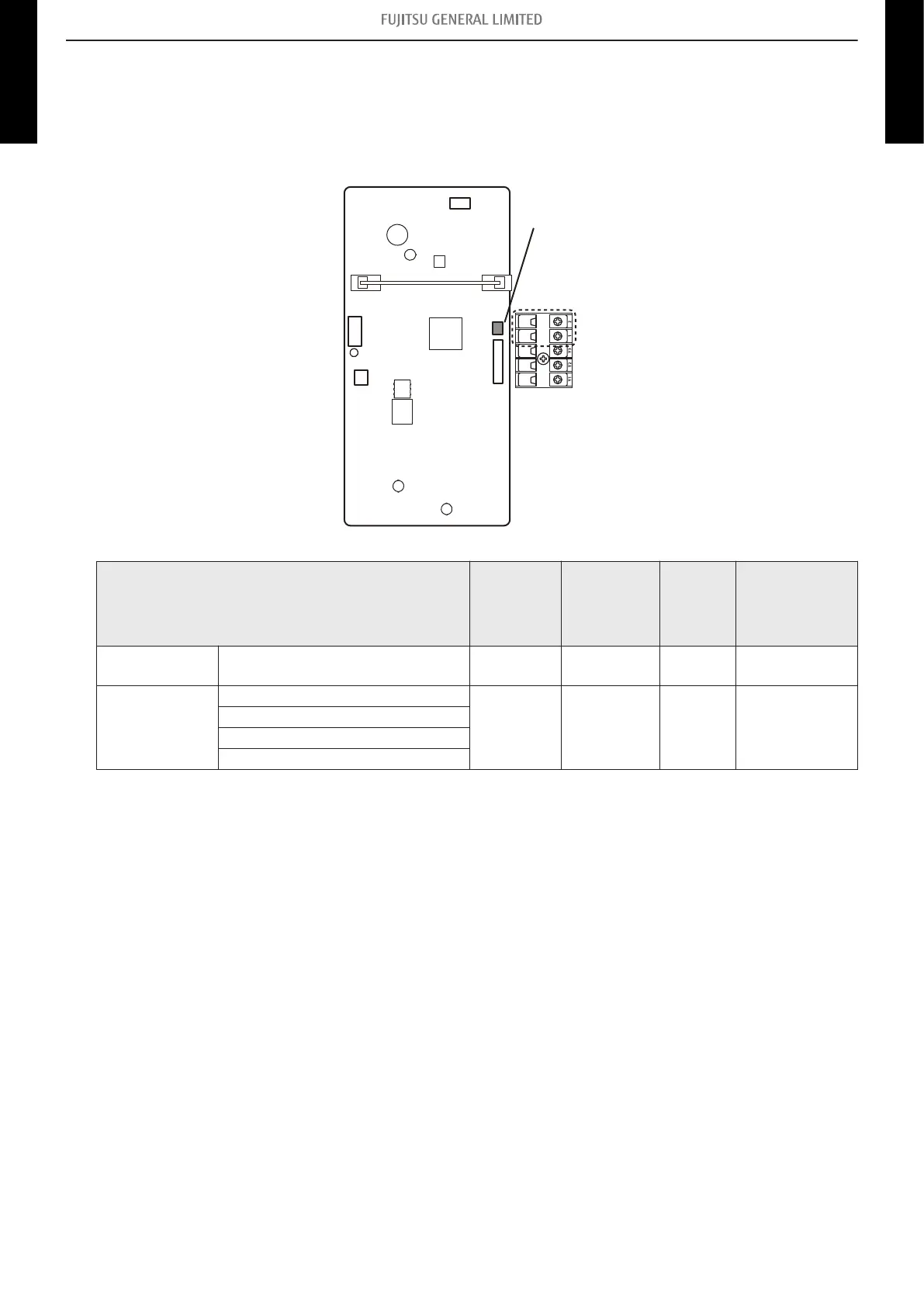

Exterior of the indoor unit PCB and the component location differ by the type of the indoor unit as
follows.
• Mini duct type, Slim duct type, and Medium static pressure duct types (ARXG22KMLB):
CN47 (Ext. out)
Terminal (Ext. in)
Indoor unit PCB
External input and output Connector Input select
Input
signal
External
connect kit
(Optional
parts)
External input
Operation/Stop
Forced stop
Terminal Dry contact Edge —
External output
Operation status
CN47 — — UTY-XWZXZG
Error status
Indoor unit fan operation status
External heater output
- 198 -
12-2. Mini duct type, Slim duct type, and Medium static pressure duct type (ARXG22KMLB)
12. External input and output
4-5 UNIT MULTI-SPLIT TYPE 4-5 UNIT MULTI-SPLIT TYPE
