22 Technical Manual D3031 (RX200 S6)
Main memory Features
– Single and dual and quad rank memory modules may be mixed.
– Install the memory module with the highest number of ranks into the slot with
the lowest number (e.g. modul typ 4GB 2Rx4 into slot DIMM1A and modul
typ 4GB 1Rx4 in slot DIMM2A).
– In the case of same number of ranks install the memory module with the
highest capacity into the slot with lowest number (e.g. 8GB 2Rx4 modules
(DIMM-1A) before 4GB 2Rx4 modules (DIMM-2A)).
– Mix of modules with different capacity is possible bank-wise (2x2) with Mirror
or Spare Mode.
– The assignment of the DIMM slots to the banks and channels is printed on
the system board.
3.2.2 Modes of operation
Possible population in the different modes:

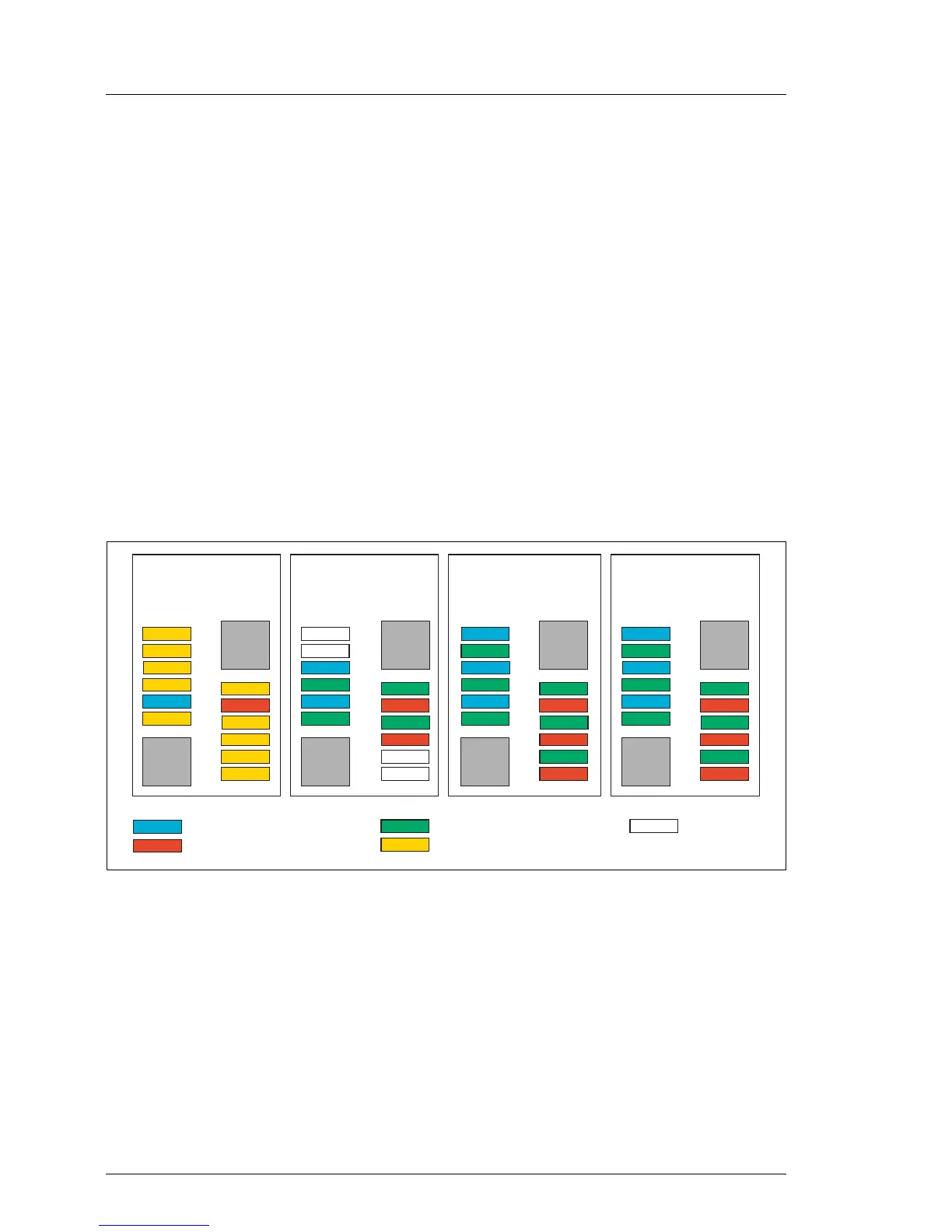

Figure 3: Possible population in different modes
Independent Channel Mode
– Allows population of all channels in any order. Related to the channels (A-F)
DIMM1 must be populated first.
– Works with DIMMs of different clock rates and applies the lowest clock rate.
– Works with UDIMMs as well as RDIMMs.
CPU 1
CPU 2 CPU 2
CPU 2 CPU 2
CPU 1
CPU 1 CPU 1
DIMM 1C
DIMM 1B
DIMM 1A
DIMM 2B
DIMM 2A
DIMM 2C
DIMM 2D
DIMM 2E
DIMM 2F
DIMM 1E
DIMM 1F
DIMM 1D
Independent
Channel Mode
DIMM 1C
DIMM 1B
DIMM 1A
DIMM 2B
DIMM 2A
DIMM 2C
DIMM 2D
DIMM 2E
DIMM 2F
DIMM 1E
DIMM 1F
DIMM 1D
Mirrored
Channel Mode
DIMM 1C
DIMM 1B
DIMM 1A
DIMM 2B
DIMM 2A
DIMM 2C
DIMM 2D
DIMM 2E
DIMM 2F
DIMM 1E
DIMM 1F
DIMM 1D
Performance
Channel Mode
DIMM 1C
DIMM 1B
DIMM 1A
DIMM 2B
DIMM 2A
DIMM 2C
DIMM 2D
DIMM 2E
DIMM 2F
DIMM 1E
DIMM 1F
DIMM 1D
Spare
Channel Mode
Legend:
required
required, if 2nd CPU is configured
optional, same type in bank per CPU
optional, any type
not used
