D3031 (RX200 S6) Technical Manual 25
Features PCI slots
3.3 PCI slots

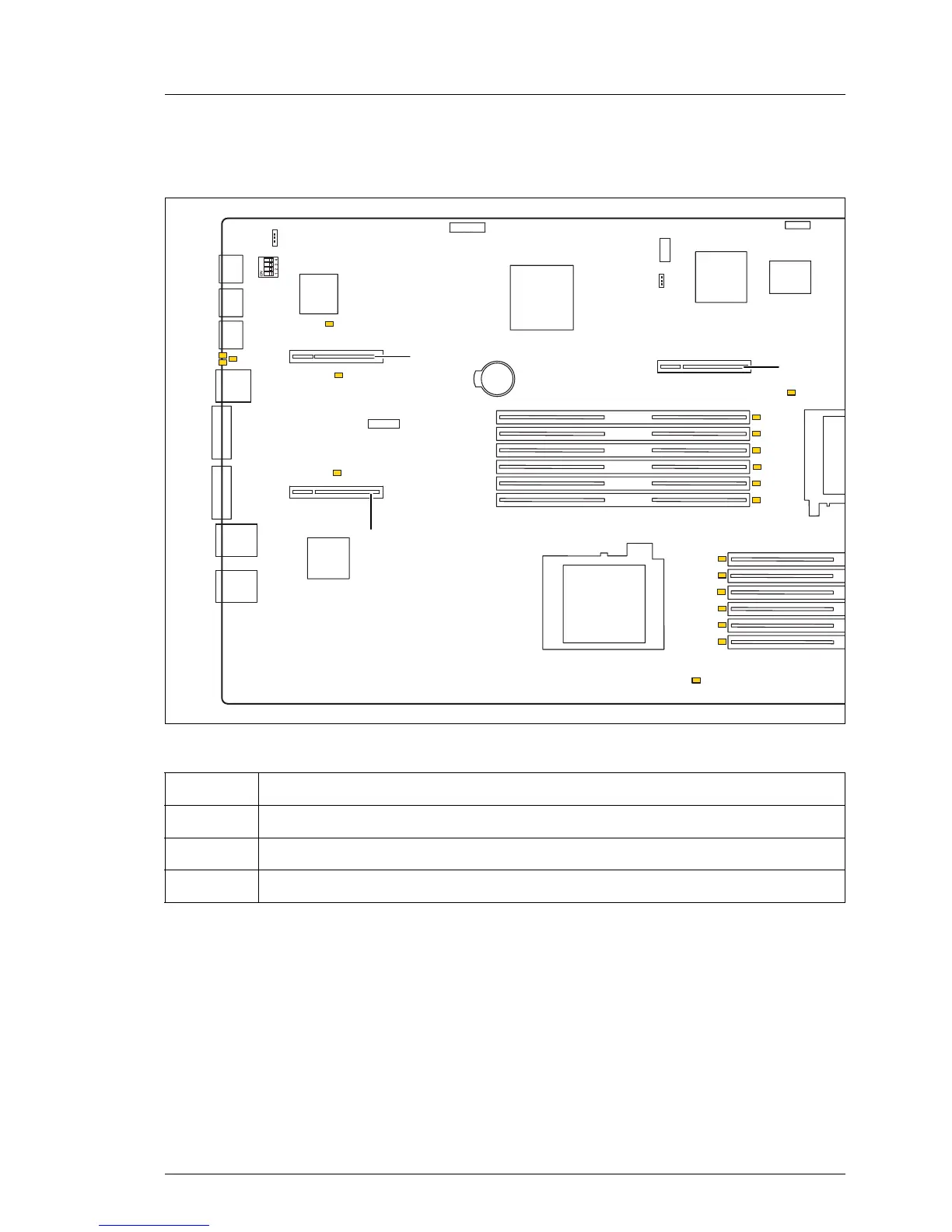

Figure 4: PCI slots
Expansion cards are integrated on the system board using a riser card. The
riser card provides one slot at an angle of 90° to the system board.
The following riser cards are available:
– Riser card with one standard half length PCI Express expansion x8 slot
– Riser card with one low-profile half length PCI Express expansion x8 slot
– Riser card with one low-profile half length PCI Express expansion x4 slot
(mechanically: x8), reserved for modular RAID option.
PCI slot Description
1 PCI Express x8 (standard profile, half-length)
2 PCI Express x8 (low profile, half-length)
3 PCI Express x4 - mechanically x8 (low profile, half-length)
S1
Front VGA
Slot 2
Slot 1
UFM
SATA1
Slot 3
PWR CTRL
CPU 1
JP5
Battery
DIMM 1C
DIMM 2C
DIMM 1B
DIMM 2B
DIMM 1A
DIMM 2A
JP2
iRMC
0
1
2
