Fujitsu fi-5220C User Manual

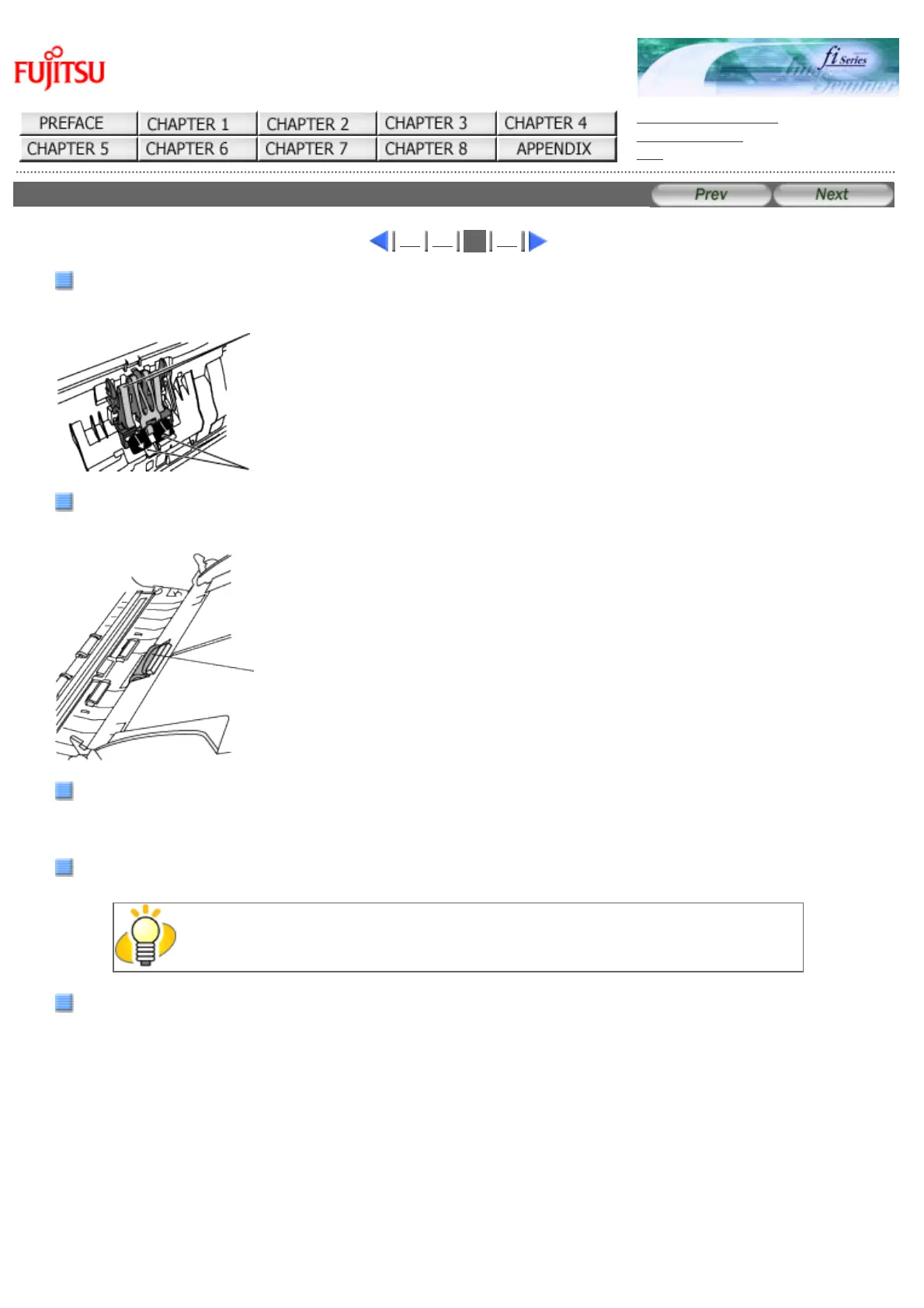

4.3CleaningtheADF(3)
fi-5120C / fi-5220C Image Scanner Operator Guide
TROUBLE SHOOTING
CONTENTS MAP
TOP

4.3CleaningtheADF(3)


1 2
3
4
Pad ASSY
Clean the Pad ASSY (rubber surface) downwards (direction of arrow). Take care not to catch the pick springs to avoid
bending.
Pick spring
The portion to clean
Pick roller
Lightly clean the Pick roller taking care not to scratch the roller surface and the Mylar sheet. Take particular care in
cleaning this roller as black debris on it adversely affects the pickup performance.
Mylar sheet
Plastic roller
Clean lightly taking care not to damage the surface of these rollers. Take particular care when cleaning these rollers as
black debris matter on it affects document pick performance. Be careful no to damage the sponges beside the rollers.
Glass
Clean lightly.
HINT
If the glass is dirty, vertical black streaks may apper in the scanned images.
Ultra sonic sensor
Clean lightly with a dry cloth.
With the movie below, review the procedure to clean the Pad ASSY, Pick roller, ADF glass surfaces and the Plastic rollers:
file://///Hd-htgle21/Manual/fi-5120C5220C-lynx2/OG/R03/contents/EN/04/c040303.htm(1/2)2006/08/2916:01:03

Fujitsu fi-5220C Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	24 bit
Maximum scan size	210 x 297 mm
Optical scanning resolution	600 x 600 DPI
Flatbed scan speed (b/w, A4)	2 sec/page
Scanner type	Flatbed & ADF scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	SCSI, USB 2.0
Bundled software	-FJ TWAIN driver. -Scandall. -Adobe Acrobat. -ISIS Driver. -QuickScan (demo). -Soft IPC (demo). -VRS 4.1 Basic.
Dimensions (WxDxH)	302 x 569 x 229 mm
Power requirements	100-240 VAC
Power consumption (standby)	6 W
Power consumption (typical)	34 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Weight	8400 g
