1-3
• Rear • ADF
1.3 Functions of the operator
panel
The Operator Panel is located at the right side
of the scanner. This panel consists of a function
number display, buttons and a LED.

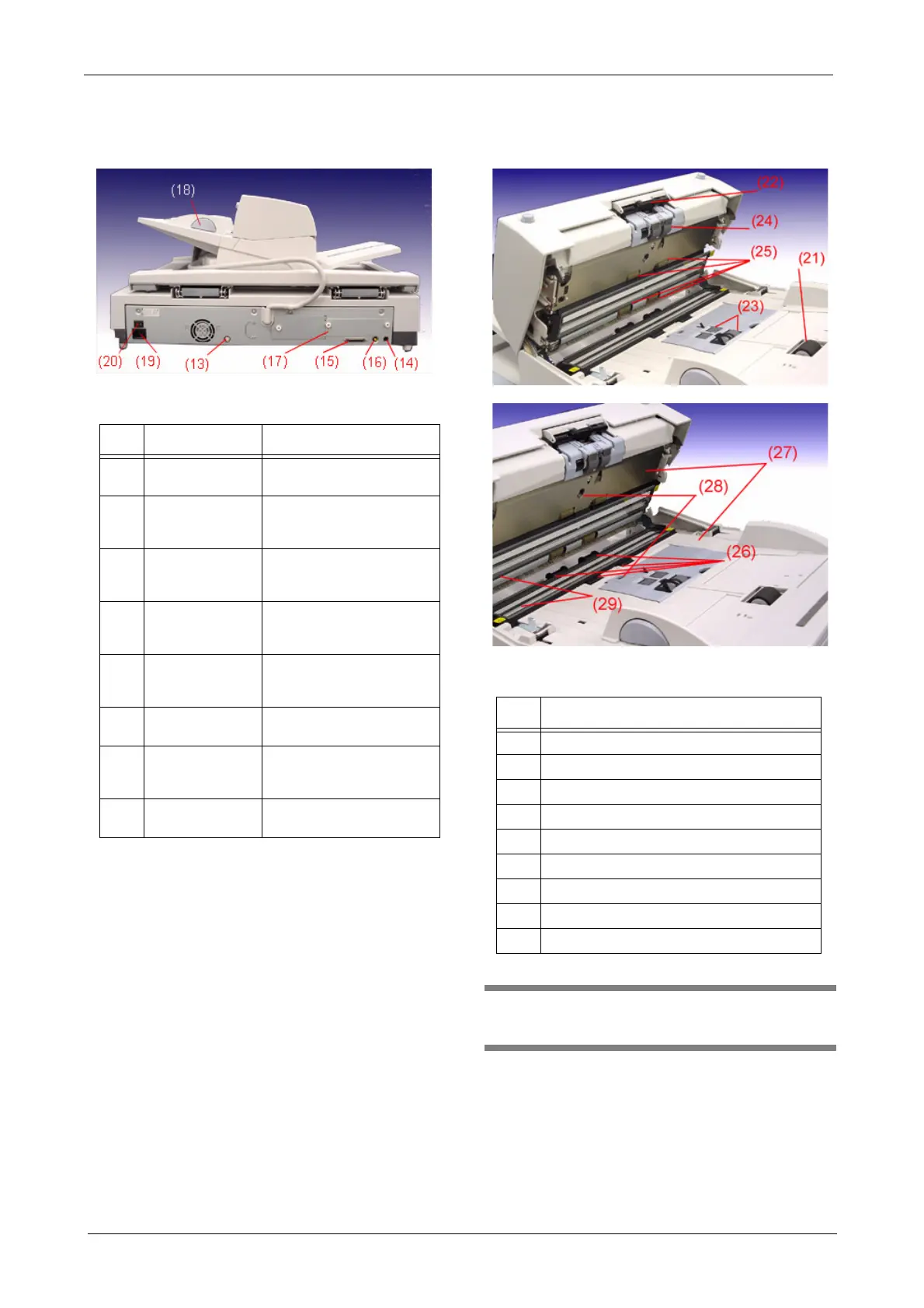

TABLE 3.
No. Name Function
13 EXT connector Connector port for
optional units.
14 USB Interface
Connector
Used for connecting a
USB interface cable from
a PC.
15 SCSI Interface
Connector
Used for connecting a
SCSI interface cable
from a PC.
16 SCSI ID
Switch
Used for setting SCSI ID
(The setting at the factory
shipment is ID=5).
17 Third Party
Slot (Optional
Slot)
The slot for an option
board.
18 Side Guide
Button
Used for adjusting the
side guides.
19 Power Inlet Used for connecting a
power cable from the
power outlet.
20 Power Switch Used for turning ON/
OFF the scanner.
TABLE 4.
No. Name
21 Chute Roller
22 Pick Arm
23 Pick Roller Set
24 Brake Roller
25 Feed Roller
26 Plastic Roller
27 Sheet Guide
28 Ultra Sonic Sensor (Multi feed detection)
29 Glass
To Next Page
