● 2 - 3
This section describes how to place the scanner.
1. Place the Shipping lock.
2. Connect the interface cable (USB/SCSI).
3. Set the SCSI ID and the SCSI terminator (When using SCSI interface).
4. Mount the Stacker.
5. Connect the power cable.
Turn the power switch off, before placing the scanner.
Turn the power switch off as follows:

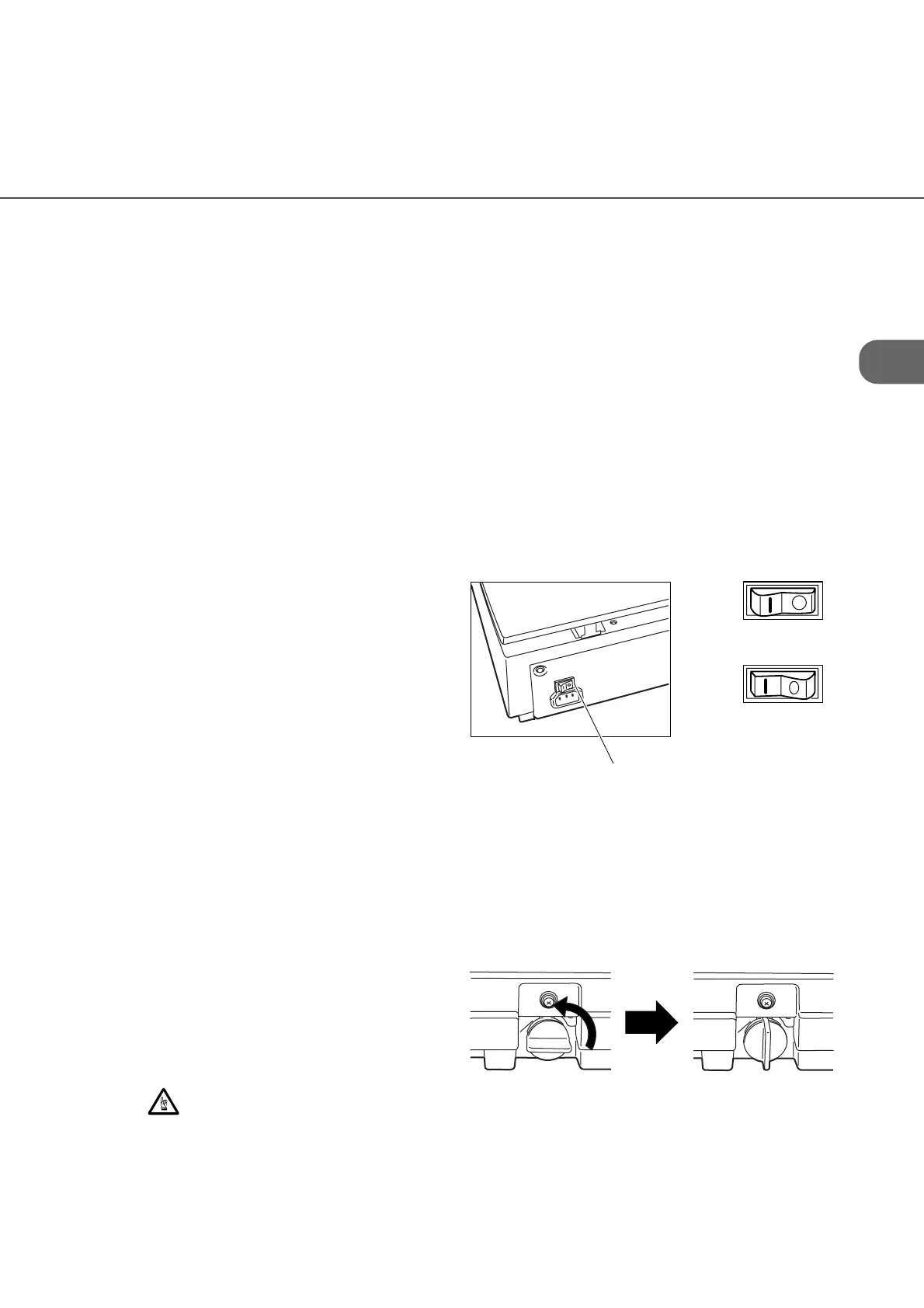

■ Turning the power switch Off
1. Press the “O” side of the power switch to turn
the power Off.
■ Placing the Shipping lock
To keep the scanner from being damaged during shipping, the carrier unit is fixed with a Shipping lock.
After placing the carrier unit where it will be installed, release the Shipping lock as explained below.
1. Turn the Shipping lock 90 degrees
counterclockwise.
CAUTION
Before moving the scanner, make sure that the Shipping lock is locked to prevent possible damage.
Before locking the Shipping lock, make sure that the carrier has returned to the home position.
Power switch
Power OFF
Power On
ReleaseLock
Placing the scanner
To Next Page
