Fujitsu PRIMERGY CX2550 M1 User Manual

CX2550 M1 Operating Manual 35
Hardware installation
5.2 Connecting devices to the server node
The additional connectors available on your server node depend on the
expansion cards installed. For further information refer to the “FUJITSU Server
PRIMERGY CX2550 M1 Server Node Upgrade and Maintenance Manual”.
The standard connectors are marked with symbols, and some are color-coded:

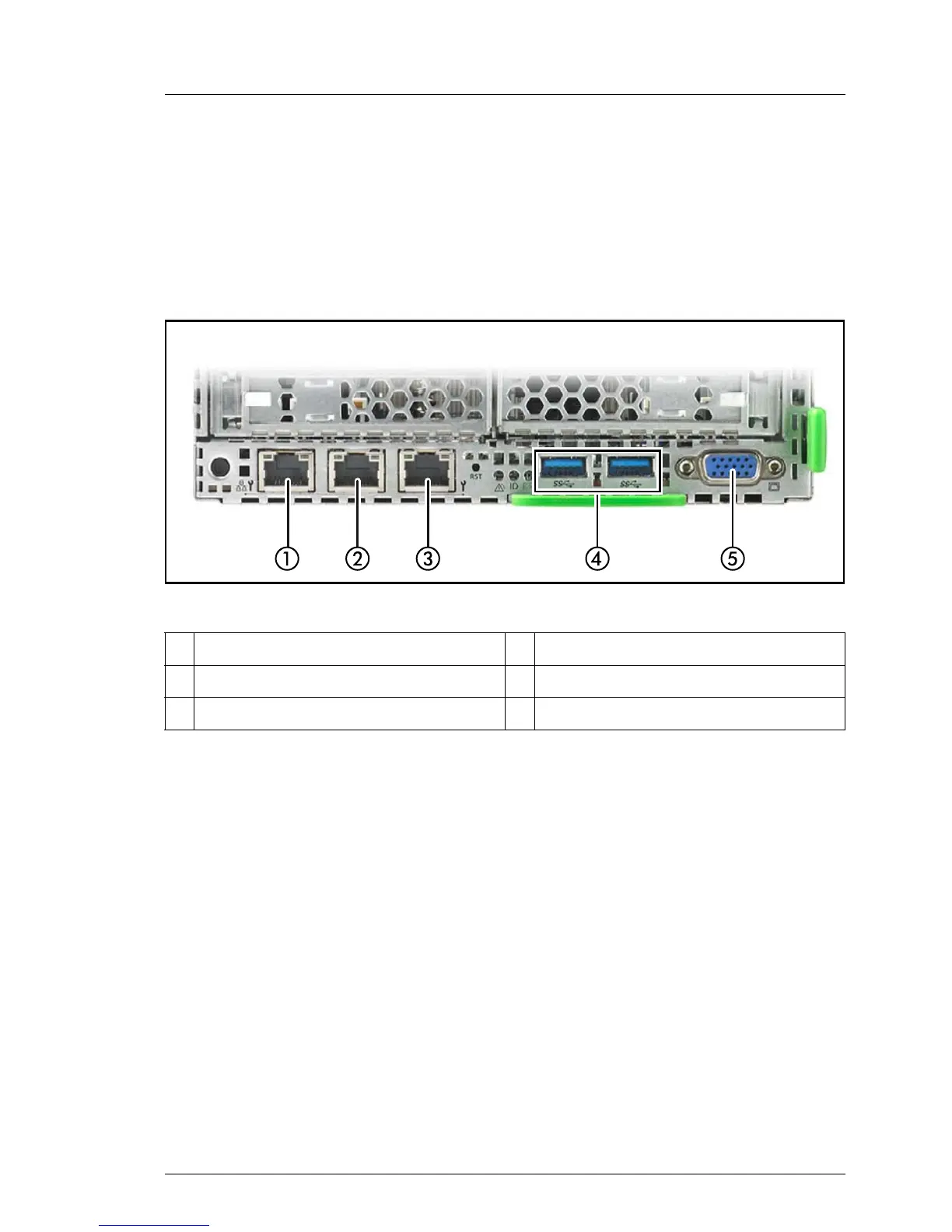

Figure 2: Connection panel of the server node
I Some of the devices that can be connected may require the installation
and setting up of special software (e.g. drivers) (see the documentation
for the connected device).
Ê Connect the desired devices to the server node.
1 Shared LAN connector (LAN 1) 4 2 x USB 3.0 connectors
2 Standard LAN connector (LAN 2) 5 Video connector
3 Management LAN connector
