RX1330 M1
Operating Manual 59
6 Starting up and operation
V CAUTION!
Follow the safety instructions in chapter "Important information" on
page 33.
6.1 Control elements and indicators
6.1.1 Front of the server

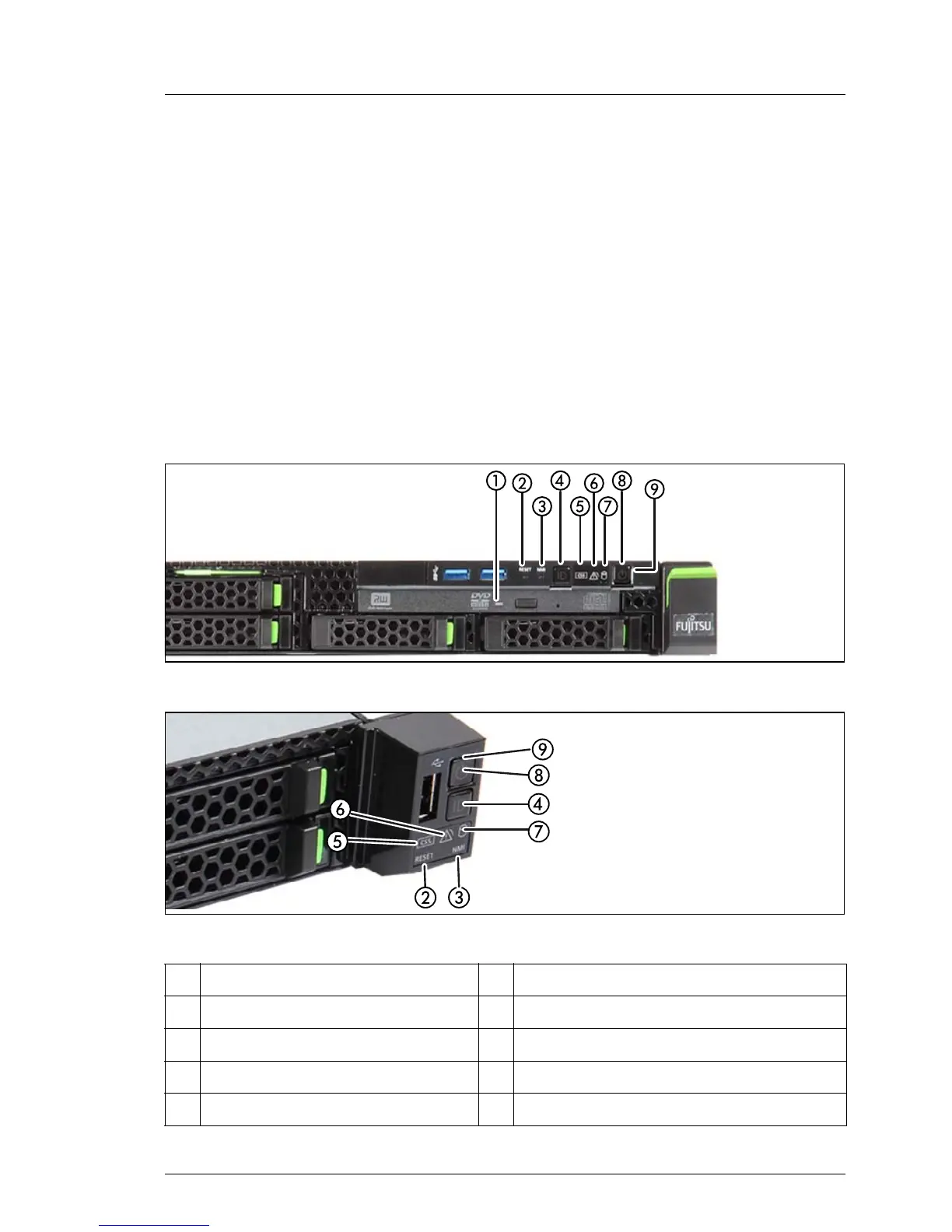

Figure 7: Indicators on the front panel module
Figure 8: Indicators on the front panel on QRL
1 Optical drive activity indicator 6 Global Error indicator
2 Reset button 7 Hard disk activity indicator
3 NMI button 8 On/Off button / power-on indicator
4 ID button / ID indicator 9 Power-off indicator (AC connected)
5 CSS indicator
