TX100 S1 Options Guide 31
7 Expansion cards and parallel
interface
V CAUTION!
Follow the safety instructions in the chapter "Safety instructions" on
page 11.
The server can be flexibly expanded via four slots.
I Slot 1 is the preferred slot for the SAS/SATA RAID controller (bootable).

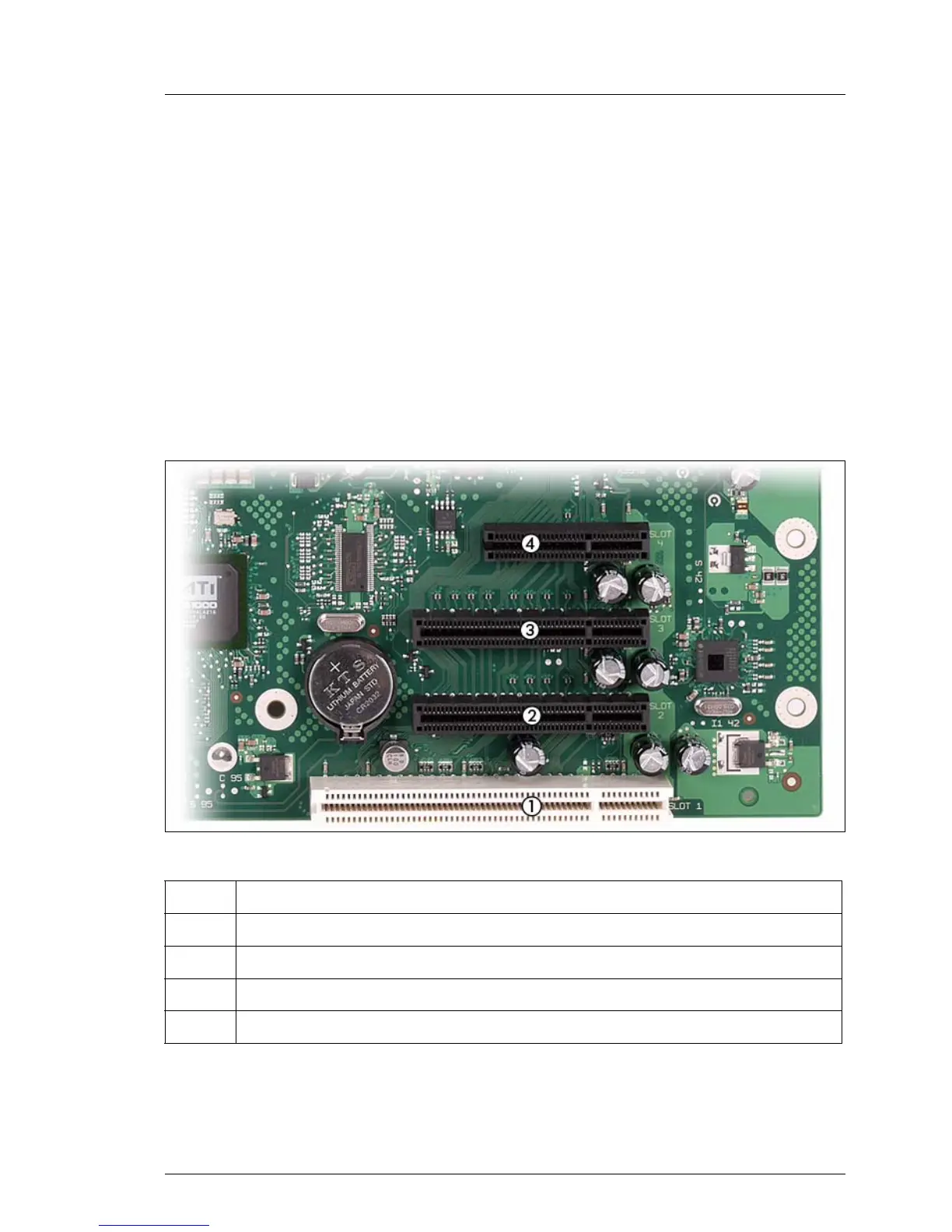

Figure 13: Arrangement of the slots
I For more information see the Technical Manual of the system board
D2679-B11.
Slot Description
1 PCI 32 bit
2 PCIe Gen2 x4 (mech. x8)
3 PCIe Gen2 x8
4 PCIe Gen2 x1
