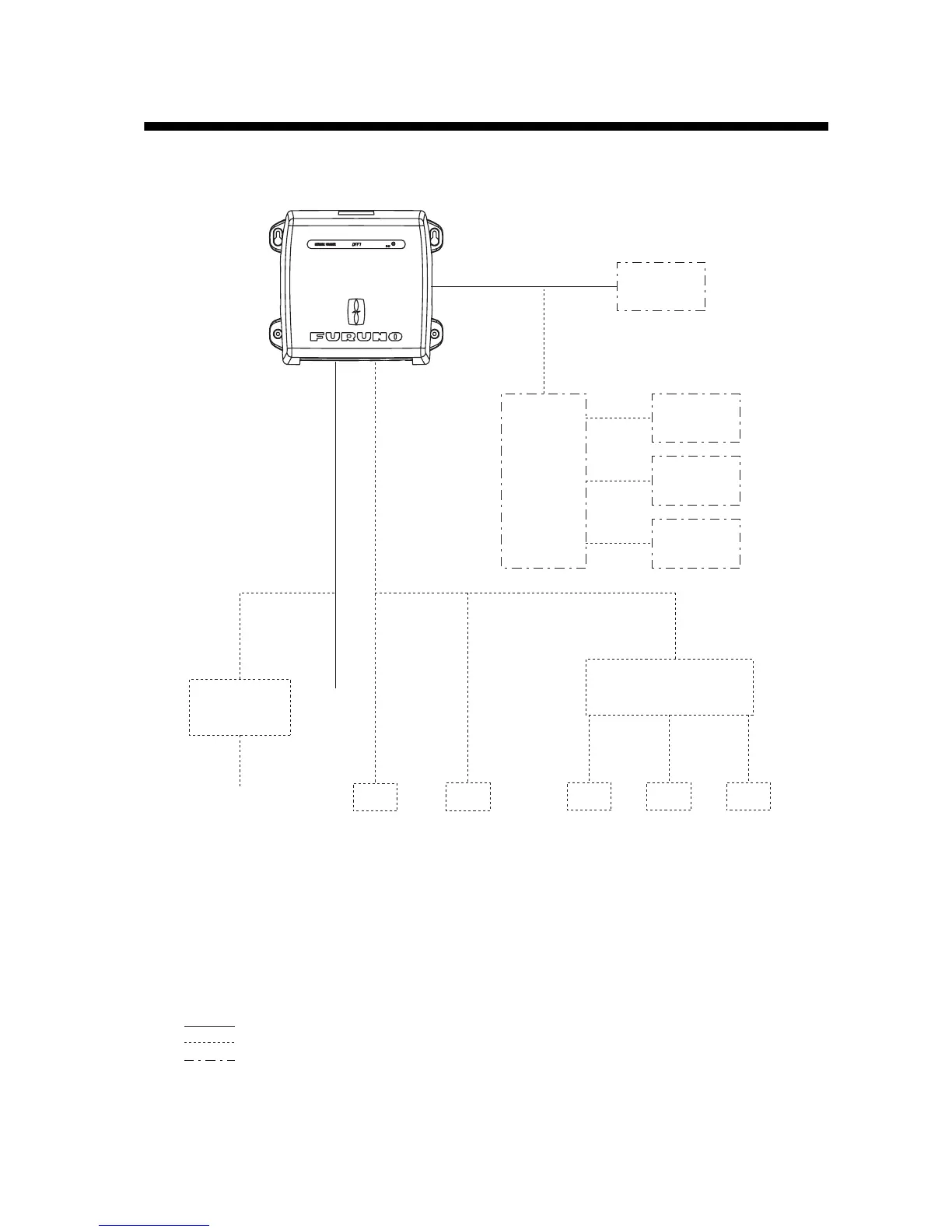

SYSTEM CONFIGURATION
This sounder can be connected to NavNet/NavNet vx2*, NavNet 3D (MFD8/12/BB) and NavNet
TZtouch (TZT9/14).
* Model 17x2 Series, Model 17x2C Series, Model 17x4 Series, Model 17x4C Series, GD-1720, GD-
1720C, Model 18x3C(-BB) Series, Model 18x4C(-BB) Series, Model 19x3C(-BB) Series, Model
19x4C(-BB) Series, GD-1900C(-BB), GD-1920C(-BB)
Network Sounder
DFF1
Radar
Plotter
12-24 VDC
Transducer
520-5PSD
525-5PWD
520-5MSD
Triducer
525STID-MSD
525STID-PWD
Rectifier
PR-62
100/110/220/230 VAC,
1f, 50/60 Hz
: Standard supply
: Optional supply
: External equipment
Speed/temperature
sensor
ST-02MSB
ST-02PSB
Temperature
sensor
T-02MTB
T-02MSB
T-03MSB
Radar
Plotter
Radar
Plotter
Radar
Plotter
HUB*
*: HUB may be connected to 3 sets of NavNet radar or plotter.
NavNet series
NavNet series
1 kW
Transducer
50B-6/6B
50B-9B
Transducer
200B-5S
Matching Box
MB-1100
Transducer
50/200-1T
50/200-12M
Note: Use only 600 W/1 kW transducer.
Use of other types will damage the transducer.
