Furuno FMD-3005 Installation Manual

2-1
2. WIRING

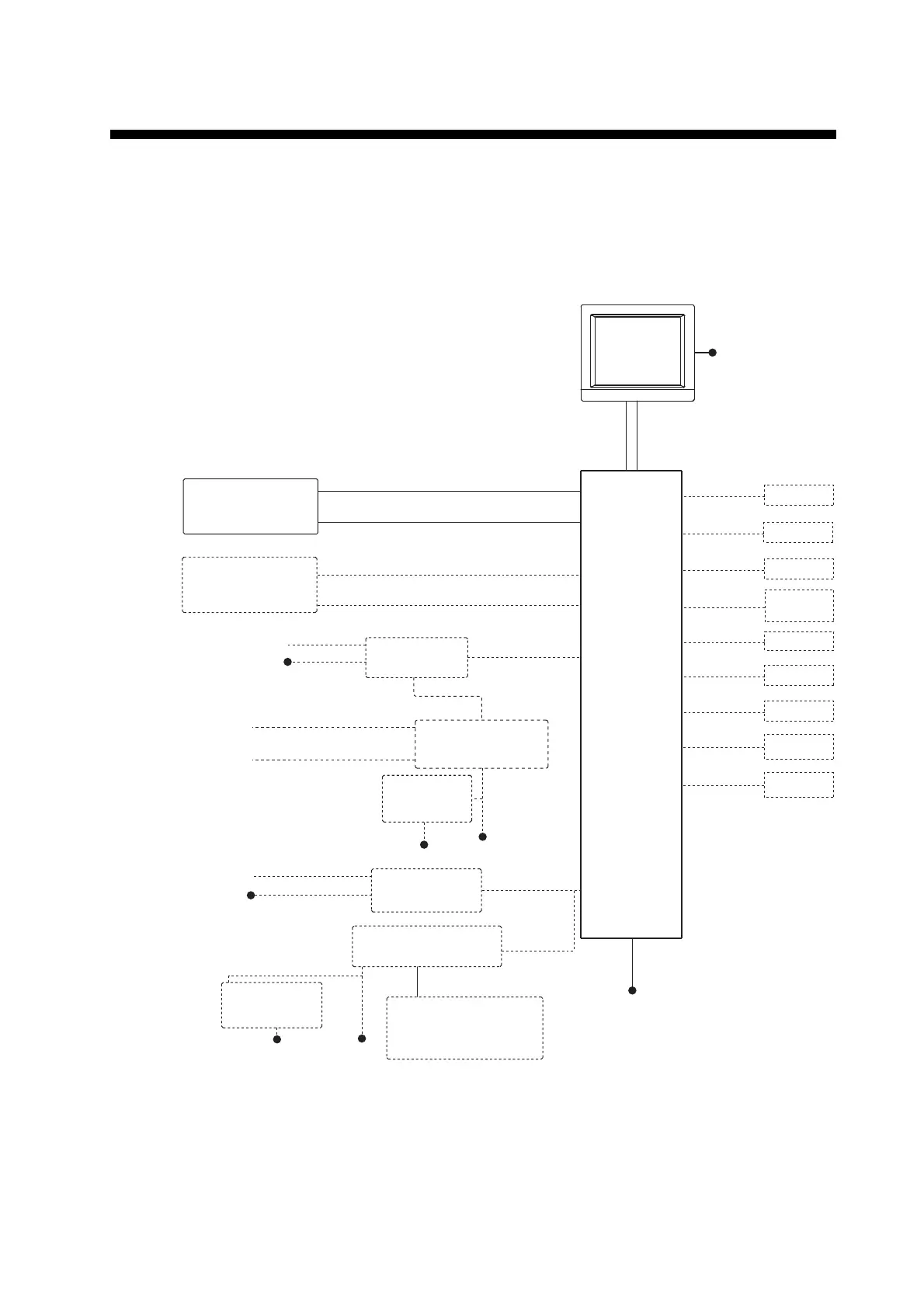

The illustration on this page shows the general connection between FMD-3005/3200/
3300 and external equipment. For detailed information, see the interconnection dia-
gram. Many of the cables mentioned are JIS (Japan Industry Standard) cables. If not
available locally, use the equivalent. See the cable guide in the Appendix for how to
select equivalent cables. For other monitor unit wiring, see the applicable operator’s
manual.
*: Use Switching Hub HUB-100 for IEC61162-450 Ed.1 compliant network. (FMD-
3200/3200-BB/3300 only)
Note: If the MU-201, MU-231CE or a Hatteland Technology monitor is connected, the
DSUB9P-X2-A-L5M/L10M cable (available as an optional extra) for brilliance control
is required to connect.
Processor Unit
EC-3000
(FMD-3200/
3200-BB/3300)
OR
EC-3005
(FMD-3005)
Control Unit
RCU-024 or RCU-26
Control Unit
RCU-024 or RCU-026
100-115/
220-230 VAC
TS-20-071-1 cable
TS-20-071-1 cable
(Max. 2)
IEC60320-C13-L5M, 5 m
Intelligent HUB
HUB-3000*
DTI-C5E350VCV,
10/20/30 m
DPYC-1.5
100-230 VAC
STP (CAT5) cable
or
Sensor Adapter
MC-3000S (Serial IN/OUT)
-MC-3010A (ANALOG)
-MC-3020D (Digital IN)
-MC-3030D (Digital OUT)
Sensor Adapter
MC1.5-W-L cable,
0.6/1/2/3 m
24 VDC
Sensor
Adapter
Intelligent HUB
HUB-3000
DTI-C5E350 VCV,
10/20/30 m
100-230 VAC
ALARM SYSTEM
DPYC-1.5
DPYC-1.5
Radar Connection Box
RCB-002
MOD-WPAS0001-030+, 3m
MJ-A10SPF0020A,
5/10/20/30 m
MJ-A10SPF0020A,
5/10/20/30 m
External Radar
External Radar
24 VDC
AC/DC Power
Supply Unit
PR-240/241
100-115/
200-230 VAC
AIS
TTYCS-4 or
TTYCSLA-4
GYRO1
GYRO2
TTYCS-4 or
TTYCSLA-4
AUTOPILOT
(TCS)
LOG
GPS1
GPS2
ECHO
SOUNDER
ALARM
SYSTEM
TTYCS-10 or
TTYCSLA-10
TTYCS-4 or
TTYCSLA-4
TTYCS-4 or
TTYCSLA-4
TTYCS-1Q or
TTYCSLA-1Q
TTYCS-1Q or
TTYCSLA-1Q
TTYCS-1Q or
TTYCSLA-1Q
TTYCS-1Q or
TTYCSLA-1Q
RCU-024: TET-16-045A cable
RCU-026: 6TPSH-XH12X2-LxxSP2 cable
(5m, option: 10/20/30 m)
RCU-024: TET-16-045A cable
RCU-026: 6TPSH-XH12X2-LxxSP2 cable
(5m, option: 10/20/30 m)
DSUB9P-X2 cable
( For MU-190/231/270W, 5 m, option: 10 m)
DSUB9P-X2-A cable (see Note, option: 5/10 m)
100-230 VAC
DVI-D/D S-LINK cable
(5 m, option: 10 m*
2
)
Monitor Unit*
1
Max. three monitor
units can be connected.
*
2
: MU-190 only
*
1
: For the monitors available
for connection with the ECDIS,
see page iv.
AC/DC Power
Supply Unit
PR-240/241
FR-FTPC-CY,
10/20/30 m
100-115/200-230 VAC
